Remove/Install Radio Display - AR82.60-P-7722LW

Model 205, 253

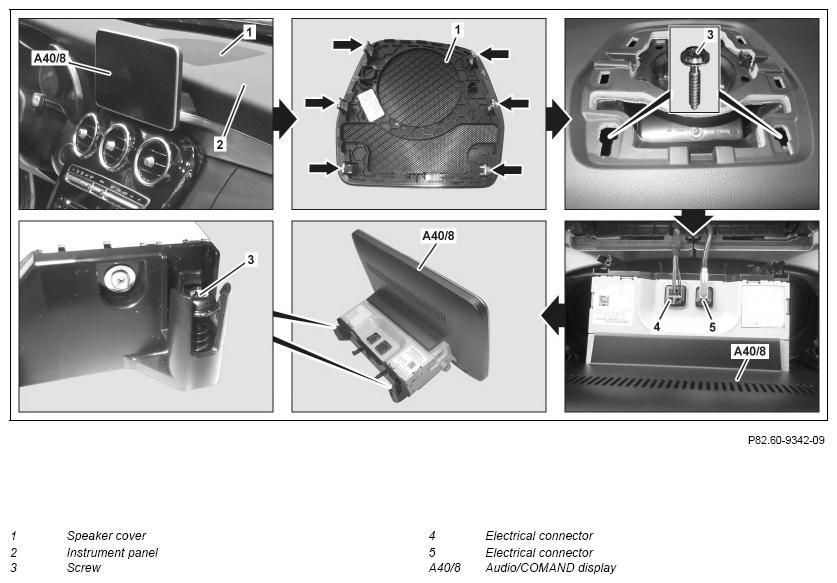

Fig 1: Radio Display/Audio/COMAND Display Components Location - Model 205

Courtesy of MERCEDES-BENZ USA

Shown on model 205

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Remove/install
1	Switch off ignition and remove transmitter key
2	Unclip speaker cover (1) at instrument panel (2) (arrows)	Clip remover	Fig 2
3	Remove screws/bolts (3) from Audio/COMAND display (A40/8)
4	Pull out Audio/COMAND display (A40/8) until electrical connectors (4 and 5) are accessible
5	Disconnect electrical connectors (4 and 5) from Audio/COMAND display (A40/8)
6	Remove Audio/COMAND display (A40/8) from vehicle	The screws/bolts (3) must be moved to the upper assembly position on the Audio/COMAND display (A40/8) for installation. Otherwise the interior equipment may be damaged.
7	Install in the reverse order

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
