Remove/Install NFC Antenna - AR82.62-P-0004LWM
Model 205
as of model year 2019
with code 897 (Front wireless telephone charging)
Model 205
as of model year 2019
with code 899 (Multifunction telephony)

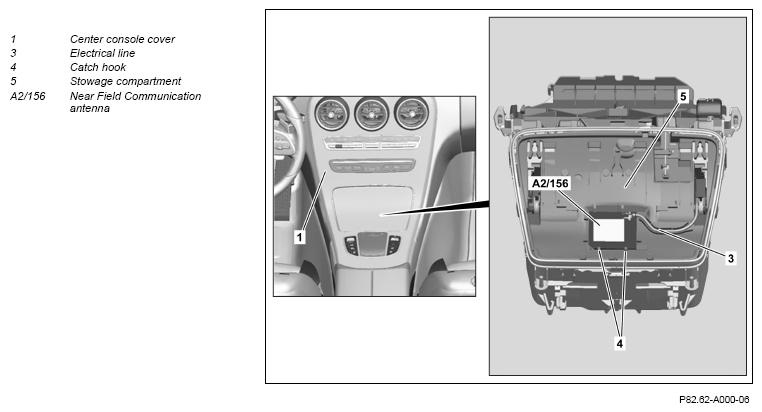

Fig 1: (NFC) Near Field Communication Antenna Components Location - Model 205 As Of Model Year 2019 With Code(s) 897 And 899
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove stowage compartment (5) from cover of center console (1). | AR68.20-P-0901LWM | |
| 2 | Unclip cap of stowage compartment (5) towards rear, in the opposite direction of travel, from stowage compartment (5) and remove. | Do not use sharp-edged tools. Otherwise, the cap may be damaged. Otherwise, the fasteners and the cap may be damaged. |
|
| 3 | Disconnect electrical connector from mobile phone cradle control unit and expose electric line (3). | ||
| 4 | Release catch hooks (4) and guide near-field communication antenna (A2/156) with electric line (3) outwards and remove. | ||
| 5 | Install in the reverse order. |
