Remove/Install Mobile Phone Cradle Control Unit - AR82.70-P-0007LWM
Model 205
as of model year 2019
with code 897 (Front wireless telephone charging)
Model 205
as of model year 2019
with code 899 (Multifunction telephony)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of mobile phone cradle control unit (N123/8). | When replacing the mobile phone cradle control unit (N123/8). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove center console stowage compartment. | AR68.20-P-0901LWM | |

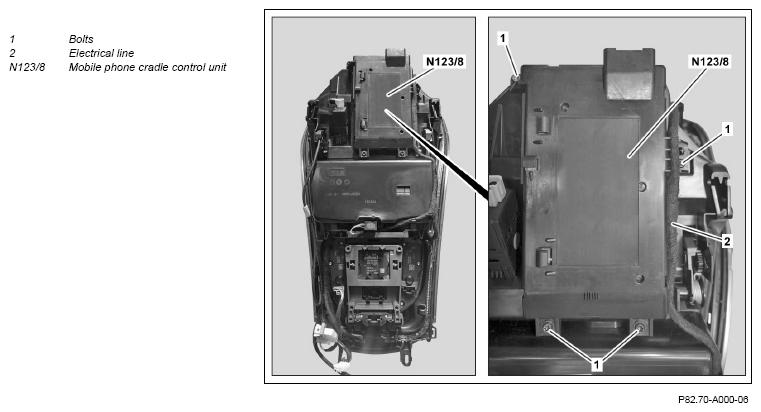

| 4 | Expose electrical line (2). | If installed. | |
| 5 | Disconnect electrical connector from mobile phone cradle control unit (N123/8) and expose electric line. | ||
| 6 | Unscrew screw/bolts (1). | ||
| 7 | Remove mobile phone cradle control unit (N123/8). | ||
| 8 | Install in the reverse order. |
