Remove/Install Loudspeaker Amplifier Control Unit - AR82.62-P-7720LW
Model 205.0/1/2
with code 810 (Premium sound system)

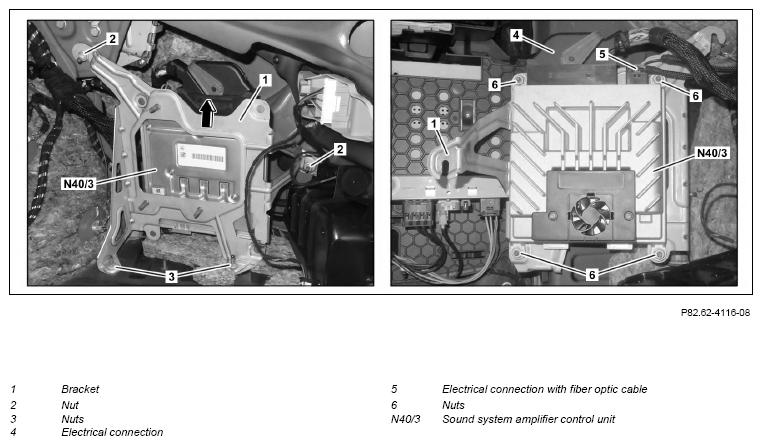

Shown on MODEL 205.0

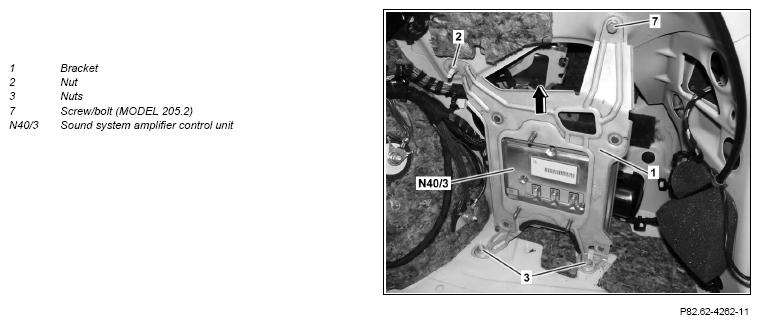

Shown on MODEL 205.2
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Carry out initial startup of sound system amplifier control unit (N40/3) | When replacing sound system amplifier control unit (N40/3). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and remove transmitter key | ||
| 3.1 | Remove right side trim panel from trunk | Model 205.0/1 with code 810 (Premium sound system) |
AR68.30-P-4800LW |
| 3.2 | Detach side paneling from right side of load compartment in rear area | Model 205.2 with code 810 (Premium sound system) |
AR68.30-P-1180LWS |
| 4 | Loosen nuts (2) | ||
| 5 | Unscrew nuts (3) | ||
| 6 | Unscrew screw/bolt (7) | Model 205.2 with code 810 (Premium sound system) |
|
| 7 | Remove bracket (1) with sound system amplifier control unit (N40/3) in direction of arrow and put down with electrical lines still attached | ||
| 8 | Release and disconnect electrical connection (4) | ||
| 9 | Disconnect electrical connection with optical fiber (5) | ||
| 10 | Cover up connector for electrical connection with optical fiber (5) and device connection to sound system amplifier control unit (N40/3) | ||
| 11 | Remove bracket (1) with sound system amplifier control unit (N40/3) | ||
| 12 | Unscrew nuts (6) | When replacing sound system amplifier control unit (N40/3). | |
| 13 | Remove sound system amplifier control unit (N40/3) from bracket (1) | When replacing sound system amplifier control unit (N40/3). | |
| 14 | Install in the reverse order |
