Remove/Install Loudspeaker Amplifier Control Unit - AR82.62-P-7720CLW
Model 205.3
with code 810 (Premium sound system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Carry out initial startup of sound system amplifier control unit (N40/3) | When replacing sound system amplifier control unit (N40/3). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and remove transmitter key | ||
| 3 | Remove right side trim panel from trunk | AR68.30-P-4800LW | |

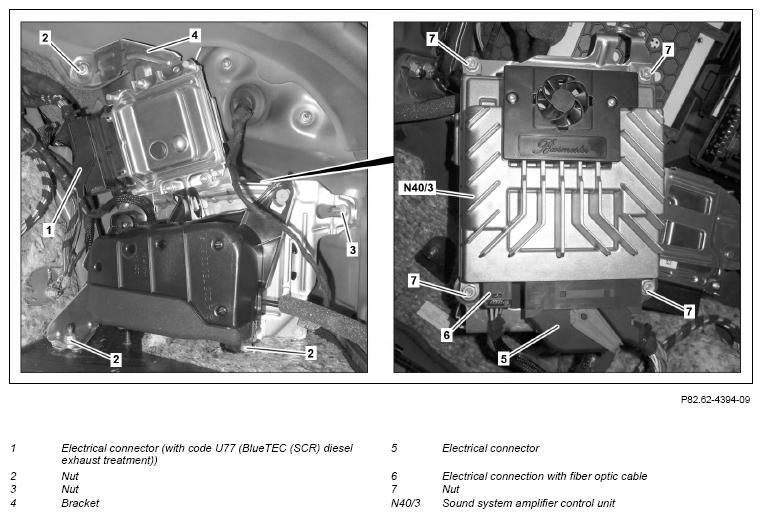

| 4 | Release and disconnect electrical connection (1) | Model 205.3 with code 810 (Premium sound system) with code U77 (Diesel Emission control BLUETEC (SCR)) |
|
| 5 | Unscrew nuts (2) | ||
| 6 | Unscrew nut (3), extend bracket (4) and set down | ||
| 7 | Release and disconnect electrical connection (5) | ||
| 8 | Disconnect electrical connection with optical fiber (6) | ||
| 9 | Cover up connector for electrical connection with optical fiber (6) and device connection to sound system amplifier control unit (N40/3) | ||
| 10 | Unscrew nuts (7) | ||
| 11 | Remove sound system amplifier control unit (N40/3) from bracket (4) | ||
| 12 | Install in the reverse order |
