Remove/Install License Plate Lamps - AR82.10-P-5161LC
Model 205.3/4
Model 217
Model 238

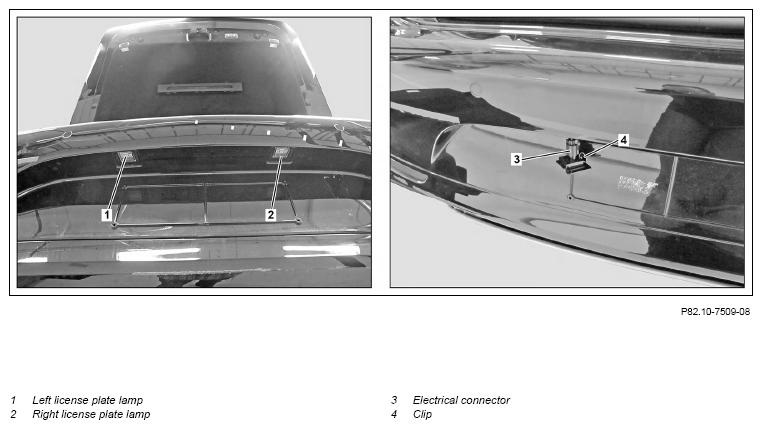

Shown on model 217
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Using a suitable screwdriver, press clamps (4) from below inwards and remove left license plate lamp (1) or right license plate lamp (2) | Carefully release and move out. Otherwise paint damage can occur. |
|
| 2 | Disconnect electrical connector (3) at left license plate lamp (1) or right license plate lamp (2) | ||
| 3 | Install in the reverse order |
