Remove/Install Global Positioning System (GPS) Antenna Splitter - AR82.85-P-0007LW
Model 205, 253
with code 355 (Preinstallation for retrofitting navigation system)
with code 362 (HERMES communications module LTE)
with code 830 (China version)
Model 205.0/2
with code 344 (Antenna preinstallation for taxi)
with code 355 (Preinstallation for retrofitting navigation system)
Model 205.0/2
with code 344 (Antenna preinstallation for taxi)
with code 360 (HERMES UMTS)
Model 205.0/2
with code 344 (Antenna preinstallation for taxi)
with code 362 (HERMES communications module LTE)
Model 205.0/2
with code 344 (Antenna preinstallation for taxi)
with code 531 (COMAND APS)
Shown on model 205.0

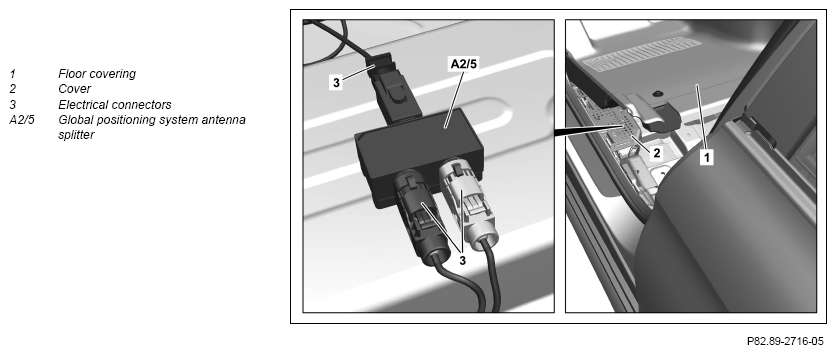

Fig 1: Global Positioning System (GPS) Antenna Splitter Components Location - Model 205 With Code(s) 355, 362, 830, 344, 360, 362 And 531
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove front left door sill | Model 205.0/1/2, 253 | AR68.30-P-4100LW |
| Model 205.3/4 | AR68.30-P-4100CLW | ||
| 2 | Release front seat and tilt backwards | Model 205.0/1/2/3, 253 | AR91.10-P-1000LW |
| Model 205.4 | AR91.10-P-1000LWR | ||
| 3 | Release front left floor covering (1) | ||
| 4 | Take off cover (2) | ||
| 5 | Detach electrical connections (3) | ||
| 6 | Unclip global positioning system antenna splitter (A2/5) and remove | ||
| 7 | Install in the reverse order |
