Remove/Install Global Positioning System (GPS) Antenna - AR82.85-P-0002LW
Model 205, 213, 238, 253, 293
with code 270 (Aerial for GPS)
Shown on model 205.0
Shown on model 205.0
Shown on model 205.0
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove outside mirror (9) from driver door | Model 238 with code 270 (Aerial for GPS) | AR88.70-P-9000LWO |
| Model 205.0/1/2, 213, 253, 293 with code 270 (Aerial for GPS) | AR88.70-P-9000LW | ||
| Model 205.3/4 with code 270 (Aerial for GPS) | AR88.70-P-9000CLW | ||
| 2 | Remove trim at outside mirror (9) | AR88.70-P-9040LF | |

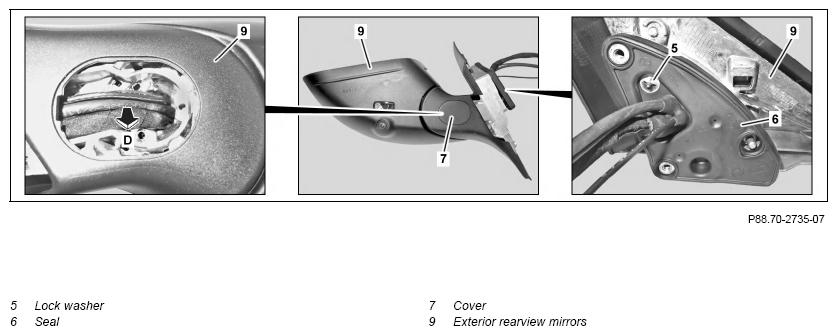

| 3 | Remove lock washer (5) and cover (7) | Model 205.0/1/2, 213, 253, 293 with code 270 (Aerial for GPS) | |
| 4 | Pull seal (6) approx. 15 cm over the electrical lines | Model 205.0/1/2, 213, 253, 293 with code 270 (Aerial for GPS) | |
| 5 | Pull electrical lines approx. 15 cm out of outside mirror (9) (arrow D) | Model 205.0/1/2, 213, 253, 293 with code 270 (Aerial for GPS) | |

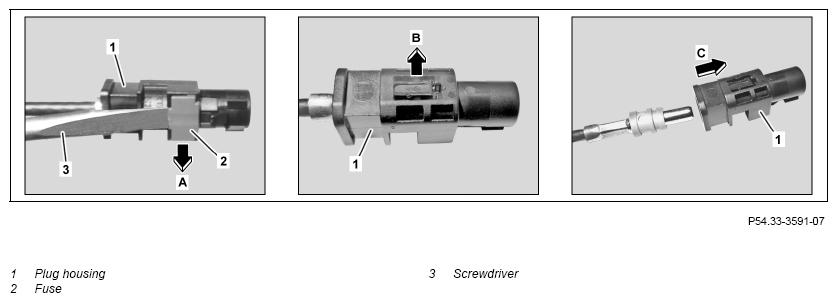

| 6 | Remove fuse (2) at connector housing (1) of electrical line for GPS antenna (A2/23) using a suitable screwdriver (3) (arrow A) | ||
| 7 | Release connector housing (1) (arrow B) and remove (arrow C) | ||

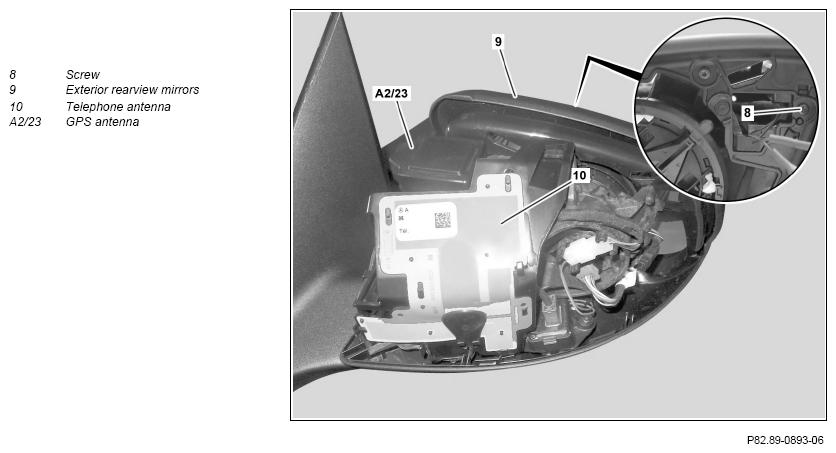

| 8 | Loosen telephone antenna (10) and place to one side with line connected | Model 205, 213, 238, 253, 293 with code 270 (Aerial for GPS) with code 274 (Telephone antenna) | AR82.62-P-0011LW |
| 9 | Unscrew bolt (8) | ||
| 10 | Pull electrical line for GPS antenna (A2/23) completely out of seal (6) and outside mirror (9) | ||

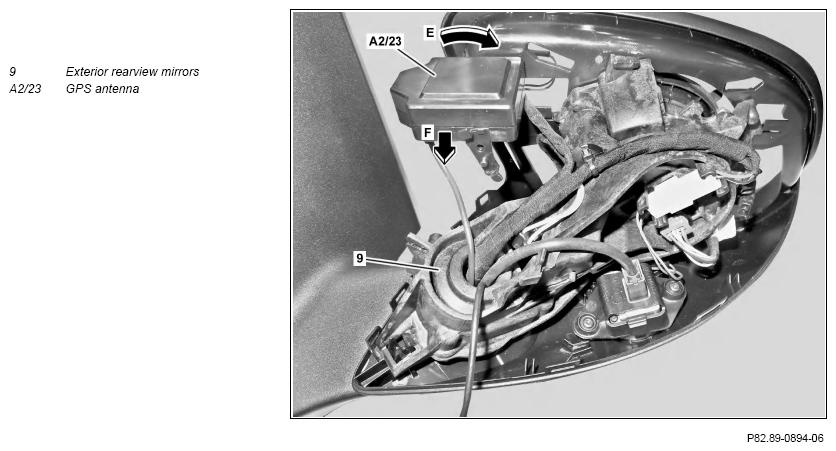

| 11 | Turn GPS antenna (A2/23) (arrow E) and remove (arrow F) | ||
| 12 | Install in the reverse order |
