Remove/Install Front Door Speakers In Mirror Triangle - AR82.62-P-7850EQ

Model 205.0/1/2, 253, 293

with code 810 (Premium sound system)

Model 205.0/1/2, 253, 293

with code 853 ("Midline" sound system)

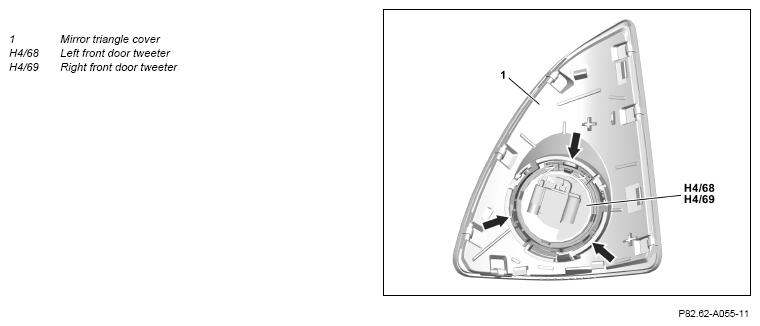

Fig 1: Front Door Speakers In Mirror Triangle Components Location - Model 205.0 With Code(s) 810 And 853

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove cover for mirror triangle (1) on front door.	Model 205.0/1/2, 253, 293 with code 810 (Premium sound system) Model 205.0/1/2, 253, 293 with code 853 ("Midline" sound system)	AR72.10-P-3001LW
2	Unclip front door tweeter (H4/68, H4/69) from mirror triangle (arrow).	Carefully unclip front door tweeter (H4/68 H4/69). Otherwise, the catch hooks (arrow) or the cover (1) may be damaged.
3	Install in the reverse order.
