Remove/Install Antenna Splitter - AR82.70-P-8953LWR
Model 205.4
with code 537 (DAB digital radio standard (Digital Audio Broadcast))
with code 865 (digital TV)

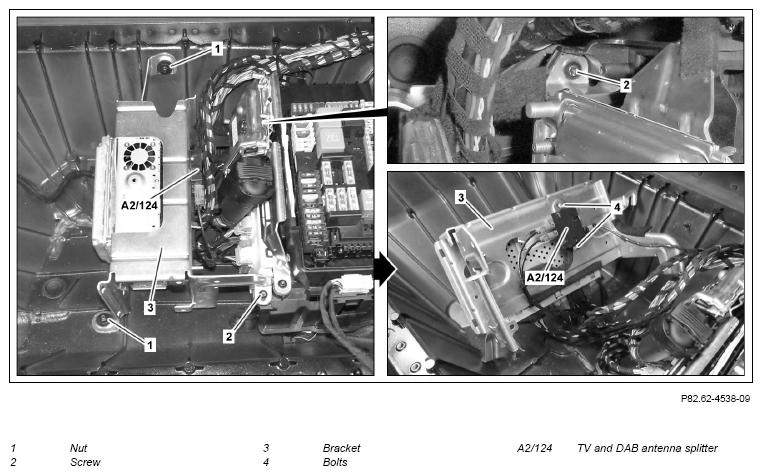

Fig 1: TV/DAB/Communication Antenna Splitter Components Location - Model 205.4 With Code(s) 537 And 865
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove rear cargo area floor | ||
| 3 | Remove trunk recess cover | ||
| 4 | Unscrew nuts (1), remove screws/bolts (2) and lay bracket (3) to one side with the control units attached | ||
| 5 | Remove bolts (4) | ||
| 6 | Remove TV and DAB antenna splitter (A2/124) and disconnect its electrical connectors | ||
| 7 | Install in the reverse order |
