Remove/Install Antenna Amplifier/Compensator For Telephone - AR82.62-P-0005LW
Model 205, 253
as of model year 2017
with code 386 (Comfort telephony)
except code 379 (Telephone module with Bluetooth (SAP profile))
Model 205, 253
up to model year 2017
with code 386 (Comfort telephony)
Model 205, 293
with code 899 (Multifunction telephony)
Shown on model 253.### 1# up to model year 2017 with code 386 (Comfort telephony)

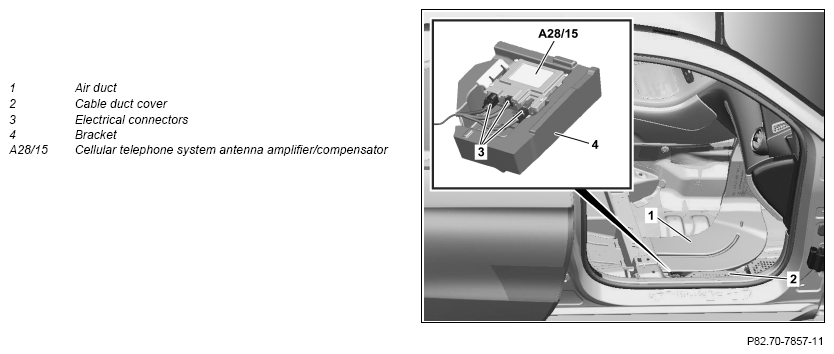

Fig 1: Antenna Amplifier/Compensator For Telephone Components Location - Model 205 As Of Model Year 2017 With Code 386 And Except Code 379; Up To Model Year 2017 With Code(s) 386 And 899; Shown On Model 253
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove right front seat. | Model 205.4 as of model year 2017 with code 386 (Comfort telephony) except code 379 (Telephone module with Bluetooth Model 205.4 up to model year 2017 with code 386 (Comfort telephony) Model 205.4 with code 899 (Multifunction telephony) |
AR91.10-P-1000LWR |
| Model 205.0/1/2/3, 253 as of model year 2017 with code 386 (Comfort telephony) except code 379 (Telephone module with Bluetooth Model 205.0/1/2/3, 253 up to model year 2017 with code 386 (Comfort telephony) Model 205.0/1/2/3, 293 with code 899 (Multifunction telephony) |
AR91.10-P-1000LW | ||
| 2 | Detach front right floor covering. | ||
| 3 | Remove air duct (1). | ||
| 4 | Remove cover from cable duct (2). | ||
| 5 | Remove cellular telephone system antenna amplifier/compensator (A28/15) from holder (4) and disconnect electrical connectors (3). | ||
| 6 | Install in the reverse order. |
