Adjusting Wiper System - AR82.30-P-6400-01LW

Model 205

Model 213

Model 238

Model 253, 293

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
	Notes on wiper arm adjustment		AH82.30-P-0001-01A

Number	Designation			Model 205	Model 213
BE82.30-P-1003-01M	Angle of incidence of driver-side wiper arm in parked position	Left-hand drive vehicle	∠°	+3, 5...+ 7, 5	+3, 5...+ 7, 5
		Right-hand drive vehicle	∠°	-3, 5...-7, 5	-3, 5...-7, 5

Number	Designation			Model 238	Model 253
BE82.30-P-1003-01M	Angle of incidence of driver-side wiper arm in parked position	Left-hand drive vehicle	∠°	+2, 1...+6, 1	+3, 4...+7, 4
		Right-hand drive vehicle	∠°	-2, 1...-6, 1	-3, 4...-7, 4

Number	Designation			Model 293
BE82.30-P-1003-01M	Angle of incidence of driver-side wiper arm in parked position	Left-hand drive vehicle	∠°	+3, 4...+7, 4
		Right-hand drive vehicle	∠°	-3, 4...-7, 4

Number	Designation			Model 205	Model 213
BE82.30-P-1004-01M	Angle of incidence of passenger-side wiper arm in parked position	Left-hand drive vehicle	∠°	+3, 1...+7, 1	+3, 1...+7, 1
		Right-hand drive vehicle	∠°	-3, 1...-7, 1	-3, 1...-7, 1

Number	Designation			Model 238	Model 253
BE82.30-P-1004-01M	Angle of incidence of passenger-side wiper arm in parked position	Left-hand drive vehicle	∠°	+1, 3...+5, 3	+3, 0...+7, 0
		Right-hand drive vehicle	∠°	-1, 3...-5, 3	-3, 0...-7, 0

Number	Designation			Model 293
BE82.30-P-1004-01M	Angle of incidence of passenger-side wiper arm in parked position	Left-hand drive vehicle	∠°	+3, 0...+7, 0
		Right-hand drive vehicle	∠°	-3, 0...-7, 0

Number	Designation		Model 205	Model 213
BA82.30-P-1004-01M	Screw/bolt, windshield wiper system bracket to partition wall	Nm	11	11

Number	Designation		Model 238	Model 253
BA82.30-P-1004-01M	Screw/bolt, windshield wiper system bracket to partition wall	Nm	10	11

Number	Designation		Model 293
BA82.30-P-1004-01M	Screw/bolt, windshield wiper system bracket to partition wall	Nm	10

Use the following special tools:

Angle gauge from adjustment tool set (211 589 02 21 00)

Extraction hook (140 589 02 33 00)

Model 205, 213, 253, 293

Model 238

except code 874 (MAGIC VISION CONTROL, heated) Adapter (205 589 00 21 00)

Model 238

with code 874 (MAGIC VISION CONTROL, heated) Adapter (231 589 00 21 00)

The windshield wiper system may only be adjusted if the check values of both wiper arms deviate from the tolerance range in the parked position.

Courtesy of MERCEDES-BENZ USA

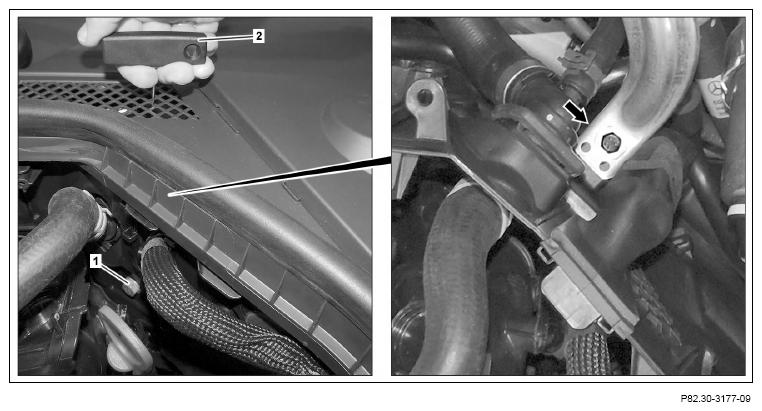

Shown on model 205

1. Attach angle gauge with adapter or adapter on driver-side wiper arm.
2. Move engine hood to upright position.
3. Loosen screw/bolt (1).
4. Model 213

   Model 238

   Model 253, 293

   Remove cover above windshield wiper system.

5. Hook in extraction hook (2) (arrow).

   Model 205

   Hook in extraction hook (2) through grid in cover on windshield wiper system (arrow).

6. Shift windshield wiper system with extraction hook (2) until correct adjustment value is achieved on scale of angle gauge.
7. Tighten screw/bolt (1), and remove extraction hook (2).
8. Remove angle gauge with adapter or adapter from driver-side wiper arm.
9. Model 213

   Model 238

   Model 253, 293

   Install cover above windshield wiper system.

10. Close hood.
