Overview Of System Components For Energizing Convenience Control - GF82.90-P-9992RFM
Model 205
as of model year 2019
with code 409 (Left and right front multicontour seat)
Model 253.99
with code 409 (Left and right front multicontour seat)

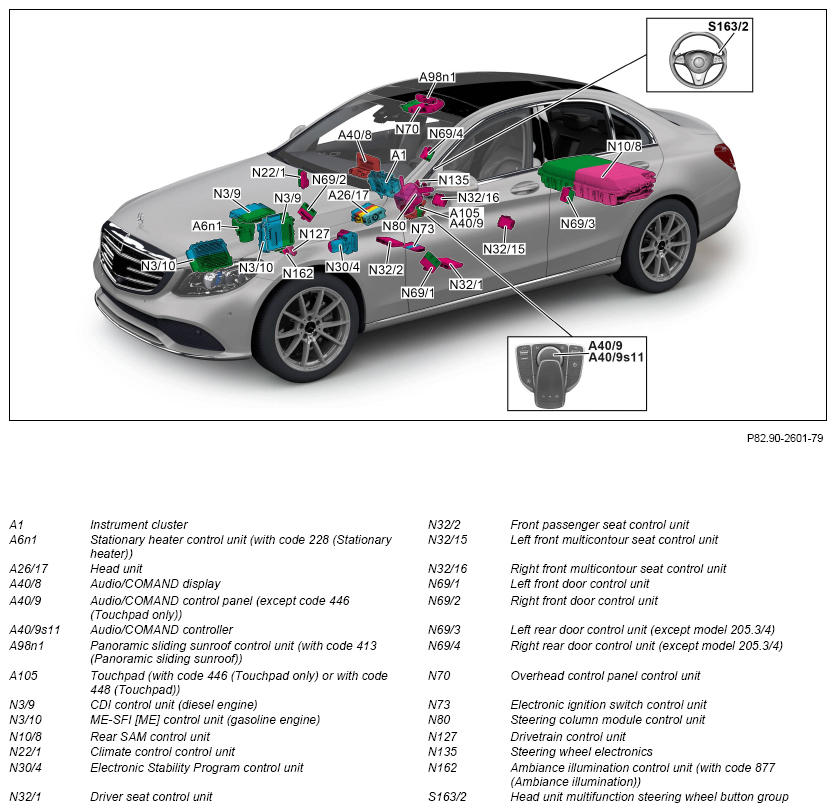

Overview of system components
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Stationary heater control unit, component description | Model 205 as of model year 2019 with code 228 (Additional warm water heating) with code 409 (Left and right front multicontour seat) Model 253.99 with code 228 (Additional warm water heating) with code 409 (Left and right front multicontour seat) A6n1 |
GF83.70-P-4066RF | |
| Head unit, component description | Model 205 as of model year 2019 with code 409 (Left and right front multicontour seat) with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 253.99 with code 409 (Left and right front multicontour seat) with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFB | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150RF | |
| Component description for Audio/COMAND control panel | Model 205 as of model year 2019 with code 409 (Left and right front multicontour seat) except code 446 (Touchpad only) A409, A40/9s11 |
GF54.21-P-4501RF | |
| Component description for panoramic sliding roof control module | Model 205 as of model year 2019 with code 409 (Left and right front multicontour seat) with code 413 (Panoramic sliding sunroof/glass roof) Model 253.99 with code 409 (Left and right front multicontour seat) with code 413 (Panoramic sliding sunroof/glass roof) A98n1 |
GF77.20-P-4106RF | |
| Touchpad, component description | Model 205 as of model year 2019 with code 409 (Left and right front multicontour seat) with code 446 (Touchpad only) Model 253.99 with code 409 (Left and right front multicontour seat) with code 446 (Touchpad only) A105 |
GF54.21-P-4511RF | |
| Component description for CDI control unit | Model 205 (except 205.012/212) with engine 651.9 as of model year 2019 with code 409 (Left and right front multicontour seat) with code 494 (US version) N3/9 |
GF07.16-P-6000OLD | |
| Model 205 (except 205.012/212) with engine 651 as of model year 2019 with code 409 (Left and right front multicontour seat) except code 494 (US version) N3/9 |
GF07.16-P-6000OLE | ||
| Model 205 (except 205.013/213) with engine 654.9 as of model year 2019 with code 409 (Left and right front multicontour seat) N3/9 |
GF07.16-P-6000ORF | ||
| Model 205.013/213 with engine 654.9 as of model year 2019 with code 409 (Left and right front multicontour seat) N3/9 |
GF07.16-P-6000ORH | ||
| Model 205.012/212 with engine 651.9 as of model year 2019 with code 409 (Left and right front multicontour seat) N3/9 |
GF07.16-P-6000OLC | ||
| Model 205 with engine 626 as of model year 2019 with code 409 (Left and right front multicontour seat) N3/9 |
GF07.16-P-6000ORB | ||
| Component description for ME-SFI (ME) control unit | Model 205 with engine 177.9 as of model year 2019 with code 409 (Left and right front multicontour seat) N3/10 |
GF07.61-P-6000MNA | |
| Model 205 with engine 264.9 as of model year 2019 with code 409 (Left and right front multicontour seat) N3/10 |
GF07.61-P-6000MRS | ||
| Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 as of model year 2019 with code 409 (Left and right front multicontour seat) N3/10 |
GF07.61-P-6000MRA | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 as of model year 2019 with code 409 (Left and right front multicontour seat) N3/10 |
GF07.61-P-6000MRH | ||
| Model 205 with engine 276.8 as of model year 2019 with code 409 (Left and right front multicontour seat) N3/10 |
GF07.61-P-6000MMV | ||
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Climate control, control unit, component description | N22/1 | GF83.40-P-2250RF | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253) as of model year 2019 with code 409 (Left and right front multicontour seat) N30/4 |
GF42.45-P-5119RF | |
| Model 205.012/013/047/053/054/147/212/213/247/253 as of model year 2019 with code 409 (Left and right front multicontour seat) Model 253.99 with code 409 (Left and right front multicontour seat) N30/4 |
GF42.45-P-5119RFH | ||
| Component description for driver seat control unit | Model 205 as of model year 2019 with code 221 (Electrically adjustable left driver seat) with code 409 (Left and right front multicontour seat) Model 205 as of model year 2019 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code 409 (Left and right front multicontour seat) Model 253.99 with code 221 (Electrically adjustable left driver seat) with code 409 (Left and right front multicontour seat) Model 253.99 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code 409 (Left and right front multicontour seat) N32/1 |
GF91.29-P-5231RF | |
| Component description for front passenger seat control unit | Model 205 as of model year 2019 with code 222 (Electrically adjustable right driver seat) with code 409 (Left and right front multicontour seat) Model 205 as of model year 2019 with code 242 (Front passenger seat, electrically adjustable with memory function) with code 409 (Left and right front multicontour seat) Model 253.99 with code 222 (Electrically adjustable right driver seat) with code 409 (Left and right front multicontour seat) Model 253.99 with code 242 (Front passenger seat, electrically adjustable with memory function) with code 409 (Left and right front multicontour seat) N32/2 |
GF91.29-P-5241RF | |
| Multicontour seat control unit (MCS), component description | Model 205 as of model year 2019 with code 409 (Left and right front multicontour seat) N32/15, N32/16 |
GF91.25-P-5201RFM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF | |
| Component description for rear door control unit | Model 205.0/1/2 as of model year 2019 with code 409 (Left and right front multicontour seat) Model 253.99 with code 409 (Left and right front multicontour seat) N69/3, N69/4 |
GF72.29-P-6021RF | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216RF | |
| Component description for the electronic ignition lock control unit | Model 205 as of model year 2019 with code 409 (Left and right front multicontour seat) N73 |
GF80.57-P-6001RFM | |
| Component description for steering column tube module control unit | Model 205 as of model year 2019 with code 409 (Left and right front multicontour seat) N80 |
GF54.21-P-6051RFM | |
| Drivetrain control unit, component description | Model 205 with engine 177.9 as of model year 2019 with code 409 (Left and right front multicontour seat) N127 |
GF54.21-P-2141MNA | |
| Model 205 (except 205.047/053/054/147/247/253) with engine 274.9 as of model year 2019 with code 409 (Left and right front multicontour seat) N127 |
GF54.21-P-2141MRA | ||
| Model 205.047/053/054/147/247/253 with engine 274.9 as of model year 2019 with code 409 (Left and right front multicontour seat) N127 |
GF54.21-P-2141MRH | ||
| Model 205.012/212 with engine 651.9 as of model year 2019 with code 409 (Left and right front multicontour seat) N127 |
GF54.21-P-2141OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 as of model year 2019 with code 409 (Left and right front multicontour seat) N127 |
GF54.21-P-2141OLD | ||
| Model 205 with engine 654.9 as of model year 2019 with code 409 (Left and right front multicontour seat) N127 |
GF54.21-P-2141ORH | ||
| Model 205 with engine 276.8 as of model year 2019 with code 409 (Left and right front multicontour seat) N127 |
GF54.21-P-2141RF | ||
| Model 205 with engine 264.9 as of model year 2019 with code 409 (Left and right front multicontour seat) N127 |
GF54.21-P-2141MRS | ||
| Model 205 with engine 626 as of model year 2019 with code 409 (Left and right front multicontour seat) N127 |
GF54.21-P-2141ORB | ||
| Steering wheel electronics control unit, component description | Model 205 as of model year 2019 with code 409 (Left and right front multicontour seat) N135 |
GF82.90-P-4006RFM | |
| Ambiance illumination control unit, component description | Model 205 as of model year 2019 with code 409 (Left and right front multicontour seat) with code 877 (Ambient lighting) Model 253.99 with code 409 (Left and right front multicontour seat) with code 877 (Ambient lighting) N162 |
GF82.20-P-5161RFM | |
| Table of contents for function description of ENERGIZING convenience control | GF82.90-P-0996RFM |
