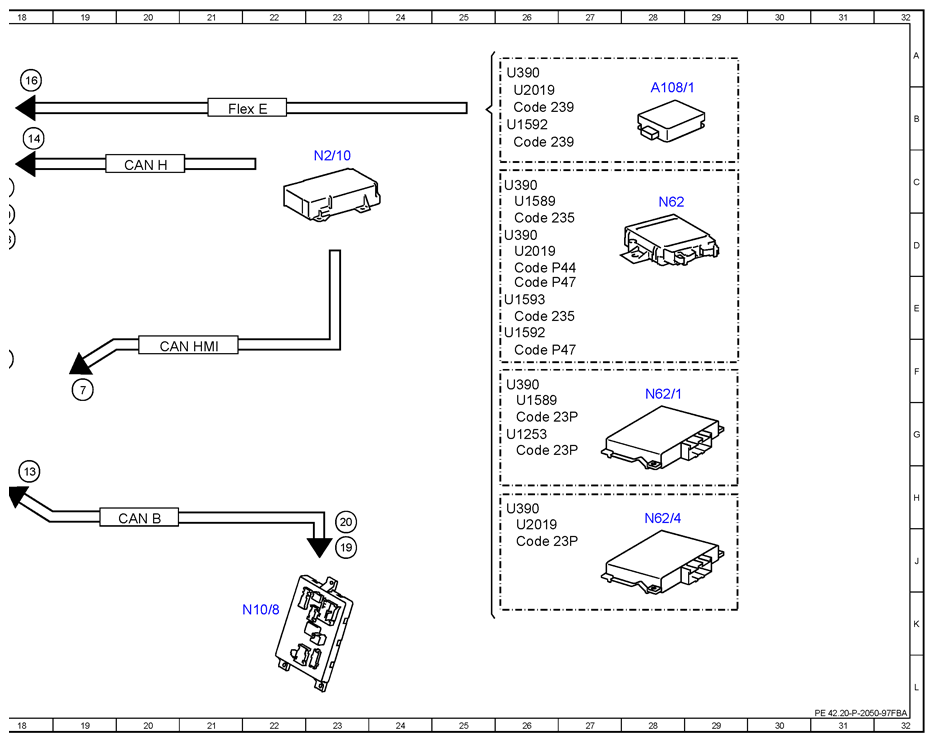

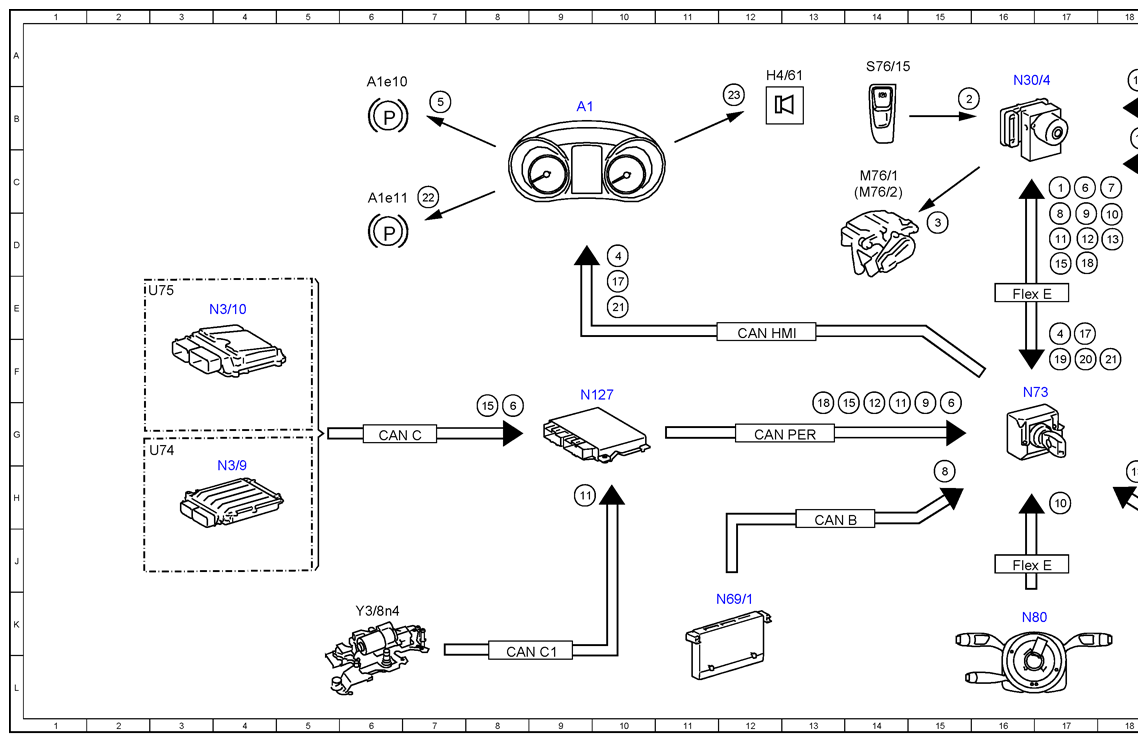

Electrical Function Schematic For Electric Parking Brake - PE42.20-P-2050-97FBA
Model 205 with engine 274, 276, 626, 651 up to model year 2019 Model 205, 253 as of model year 2019 Model 253 with engine 274, 276, 642, 651 up to model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 17C |
| 10 | Selector lever position, status | 17H |
| 10 | Selector lever position, status | 18D |
| 11 | Gear range, status | 9H |
| 11 | Gear range, status | 14G |
| 11 | Gear range, status | 17D |
| 12 | Accelerator pedal position, signal | 14G |
| 12 | Accelerator pedal position, signal | 17D |
| 13 | Trunk lid/liftgate rotary tumbler switch, status | 18H |
| 13 | Trunk lid/liftgate rotary tumbler switch, status | 18D |
| 14 | Speed, turn rate and lateral acceleration, signal | 18B |
| 15 | Engine torque, signal | 8G |
| 15 | Engine torque, signal | 14G |
| 15 | Engine torque, signal | 17D |
| 16 | Electric parking brake, request | 18A |
| 17 | Parking brake, status | 10E |
| 17 | Parking brake, status | 17E |
| 18 | Drivetrain operational, signal | 13G |
| 18 | Drivetrain operational, signal | 17D |
| 19 | Emergency stop, signal | 17F |
| 19 | Emergency stop, signal | 23J |
| 2 | Electric parking brake switch, status | 15B |
| 20 | Brake lights, request | 17F |
| 20 | Brake lights, request | 23H |
| 21 | Instrument cluster, message | 10E |
| 21 | Instrument cluster, message | 18F |
| 22 | Parking brake warning lamp, actuation | 7C |
| 23 | Speaker, actuation | 12B |
| 3 | Electric parking brake actuator motor, actuation | 15D |
| 4 | Indicator lamp, request | 10D |
| 4 | Indicator lamp, request | 17E |
| 5 | Parking brake indicator lamp, actuation | 7B |
| 6 | Engine running, signal | 8G |
| 6 | Engine running, signal | 15G |
| 6 | Engine running, signal | 17C |
| 7 | Seat belt buckle restraint system switch, status | 19F |
| 7 | Seat belt buckle restraint system switch, status | 18C |
| 8 | Door rotary tumbler switch, status | 15H |
| 8 | Door rotary tumbler switch, status | 17D |
| 9 | Engaged gear, signal | 17D |
| 9 | Engaged gear, signal | 15G |
| A1 | Instrument cluster | 9B |
| A108/1 | DISTRONIC Distance-Pilot controller unit | 28B |
| A1e10 | Parking brake indicator lamp | 6A |
| A1e11 | Parking brake indicator lamp | 6C |
| CAN B | Interior CAN | 13H |
| CAN B | Interior CAN | 20H |
| CAN C | Engine CAN | 6G |
| CAN C1 | Drive train CAN | 8L |
| CAN H | Vehicle dynamics CAN | 20C |
| CAN HMI | User interface CAN | 12E |
| CAN HMI | User interface CAN | 20F |
| CAN PER | Peripherals CAN | 12G |
| Code 235 | Active Park Assist | 26D |
| Code 235 | Active Park Assist | 26E |
| Code 239 | DISTRONIC PLUS | 26B |
| Code 239 | DISTRONIC PLUS | 26B |
| Code 23P | Driver assistance package | 26G |
| Code 23P | Driver assistance package | 26G |
| Code 23P | Driver assistance package | 26J |
| Code P44 | Parking package | 26D |
| Code P47 | Parking Pilot with 360° Camera | 26E |
| Code P47 | Parking Pilot with 360° Camera | 26F |
| Flex E | Chassis FlexRay | 16J |
| Flex E | Chassis FlexRay | 16E |
| Flex E | Chassis FlexRay | 21B |
| H4/61 | Instrument cluster speaker | 12A |
| M76/1 | Left electric parking brake actuator motor | 14C |
| M76/2 | Right electric parking brake actuator motor | 14C |
| N10/8 | Rear SAM control unit | 22K |
| N127 | Drivetrain control unit | 9F |
| N2/10 | Supplemental restraint system control unit | 23C |
| N3/10 | ME-SFI [ME] control unit | 4E |
| N3/9 | CDI control unit | 4H |
| N30/4 | Electronic Stability Program control unit | 16A |
| N62 | Parking system control unit | 28C |
| N62/1 | Radar sensors control unit | 28F |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 28H |
| N69/1 | Left front door control unit | 12K |
| N73 | Electronic ignition switch control unit | 16F |
| N80 | Steering column module control unit | 16K |
| S76/15 | Electric parking brake switch | 14A |
| U1253 | Valid for model 253 | 26G |
| U1589 | Valid up to model year 2019 | 26C |
| U1589 | Valid up to model year 2019 | 26G |
| U1592 | Valid for model 253.99 | 26B |
| U1592 | Valid for model 253.99 | 26E |
| U1593 | Valid for model 253 except model 253.99 | 26E |
| U2019 | Valid as of model year 2019 | 26B |
| U2019 | Valid as of model year 2019 | 26D |
| U2019 | Valid as of model year 2019 | 26J |
| U390 | Valid for model 205 | 26C |
| U390 | Valid for model 205 | 26A |
| U390 | Valid for model 205 | 26D |
| U390 | Valid for model 205 | 26F |
| U390 | Valid for model 205 | 26H |
| U74 | Valid for diesel engines | 2G |
| U75 | Valid for gasoline engines | 2E |
| Y3/8n4 | Fully integrated transmission control, control unit | 6K |
