Apply Brake Paste To Brake Linings - AR42.10-P-0162-01LWO
Model 205, 213, 238, 253
Brembo 4-piston fixed-caliper brake
Model 213, 238, 293
Advics 4-piston fixed-caliper brake
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1057-06A | MB brake paste Molykote (copper colored) | A 001 989 87 51 |
| BR00.45-Z-1084-06A | MB Plastilube brake paste (brownish) | A 002 989 37 51 |

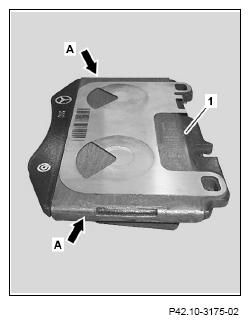

- Lightly grease the edges (arrows A) of the backing plates (1) with Plastilube brake paste
.
With 4-piston fixed calliper brake Advics .
- Lightly grease the edges (arrows A) of the back pad plates (1) with Molykote brake paste
.
With 4-piston fixed caliper brake Brembo .
- Model 253 Brembo 4-piston fixed-caliper brake

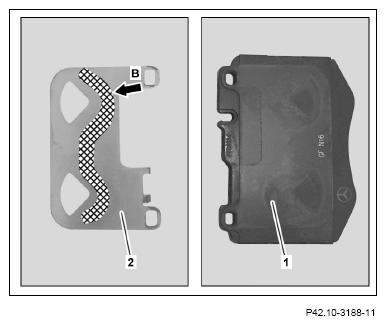

Apply Molykote brake paste in the area (arrow B) between the lining pressure plates (1) and noise plate (2) .
