Apply Brake Paste To Brake Caliper And Brake Caliper Support - AR42.10-P-0163-01LW
Model 205, 213, 238, 253, 293
Rear axle floating caliper brake
Model 205, 213, 238, 253
Front-axle 1-piston floating caliper brake
Model 213, 238, 293
Front-axle 4-piston fixed-caliper brake
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1072-06A | Brake paste, Varybond | A 001 989 94 51 |
| BR00.45-Z-1084-06A | MB Plastilube brake paste (brownish) | A 002 989 37 51 |
| BR00.45-Z-1130-06A | Lubricant paste | A 000 989 98 00 09 |

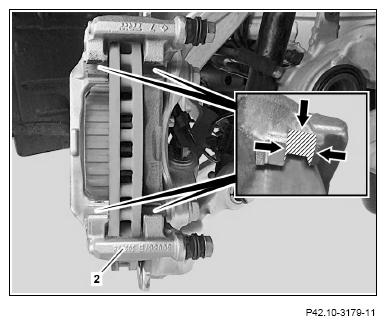

- Lightly grease pad guides (arrows) on brake caliper support (2) with Varybond brake paste.
With TRW Colette floating caliper brake.

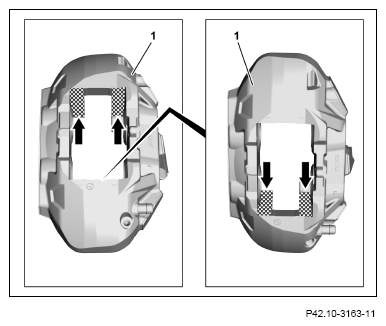

- Lightly grease slots (arrows) of 4-piston fixed caliper (1) with Plastilube brake paste.
Advics with 4-piston fixed caliper brake.

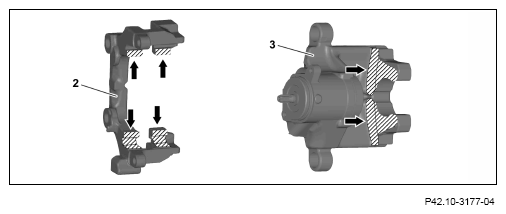

- Lightly grease pad guides (arrows) on brake caliper support (2) and contact surfaces (arrows) on brake caliper (3) with lubricant paste.
With Conti Teves floating caliper brake.
Shown on brake caliper (3) and brake caliper support (2) on rear axle

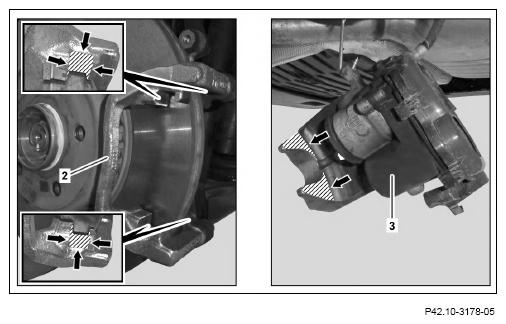

- Lightly grease pad guides (arrows) on brake caliper support (2) with Varybond brake paste.
With TRW Colette floating caliper brake.
- Lightly grease contact surfaces (arrows) on brake caliper (3) with Varybond brake paste.
With TRW Colette floating caliper brake.
Shown on brake caliper (3) and brake caliper support (2) on rear axle
