Inspect Condition Of Brake Disks - AP42.10-P-4258EW
Model 205
except code B07 (AMG - ceramic brake system)
Model 207
Model 212
except code B07 (AMG - ceramic brake system)
Model 218
except code B07 (AMG - ceramic brake system)
MODIFICATION NOTES
| 24.06.2016 | Brake disc thickness | Model 212.001 / 002/005/006/034/035/040/041/048/052/202/205/206/234/248, Model 212.003 ## from 007599, 212.097 except code 1U9, Model 212.011 / 211 / 236/247 out of code 978, model 212.036 / 047 out of code Z04, model 212.082 out of code 1U9 / 978 | BE42.10-P-1001-09O |
| 24.06.2016 | Brake disc thickness | Model 212.003 ## from 007599 with Code 1 U9, Model 212.003 ## up to 007598 except Code 1 U9, Model 212.004 / 02/053/054/055/056/057/061/065/067/080/087 / 089/093/094/095/098/099/14/154/16/19/201/204/22/254/255/256/257/265/267/280/287/288/289/293/294 / 297/298, Model 212.036 / 047 with Code Z04, Model 212.059 / 088/203/259/261/282/299 except Code 978, Model 212.082 / 097 with Code 1U9 9 | BE42.10-P-1001-09O |
| 17.03.2017 | Brake disc thickness | Model 212.001 / 201 with Code 978 (special chassis version) Model 212.003 / 004/082 out of Code 1 U9 (load level concept) out of Code 460 (Canada version) out of Code 494 (USA version) out of? he Code 950 (AMG Sports Package) except for Code 951 (USA Sports Package) except for Code P96 (Exterior Sports Package) Model 212.011 / 020/023/024/025/026/036/040/041 / 047/053/054/055/056/057/059/065/067/087/088/089/093/154/203/204/211/220/221/223/224/225/226/247/254 / 256/257/267/282/287/289/293 except for code 950 (AMG sports package) except for code 951 (USA sports package) except for code 952 (sports package) except for code P96 (sport -Package exterior) Model 212.094 / 13/14/162/19 | BE42.10-P-1001-08P |

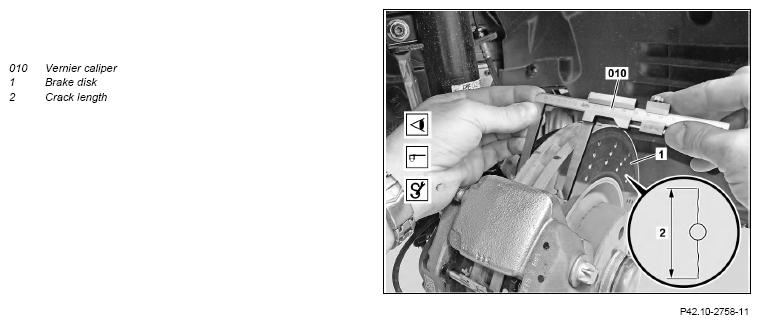

Shown on model 212

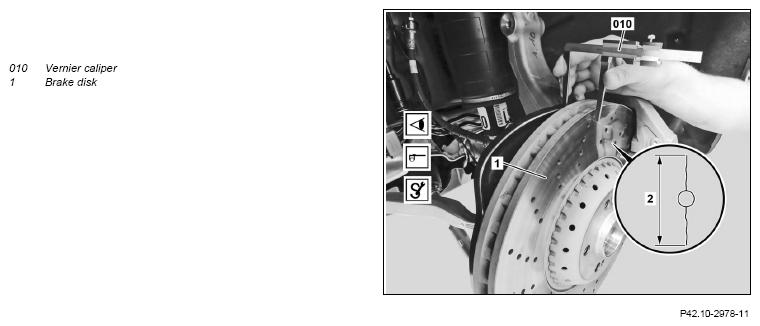

Shown on perforated compound brake disk

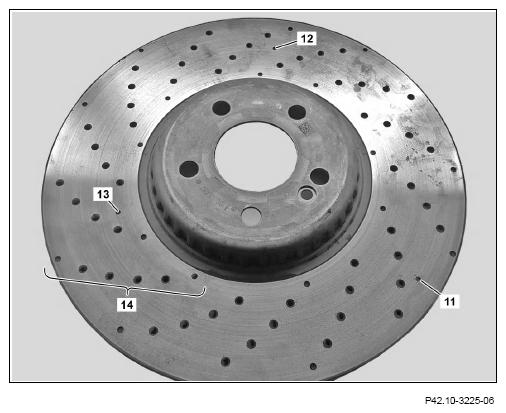

Shown on perforated compound brake disk with wear holes

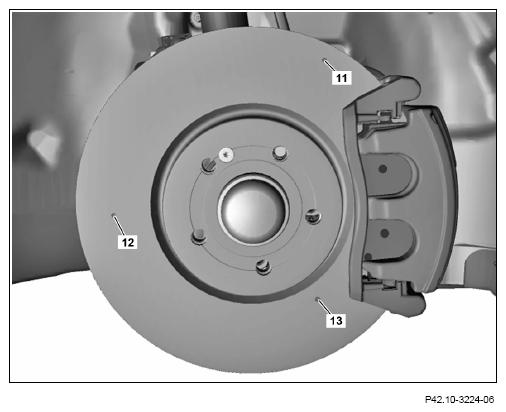

Shown on compound brake disk with wear holes
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Notes on handling, transport and storage of composite brake disks | Model 205 except code B07 (AMG - ceramic brake system) |
AH42.10-P-9406-12LF | |
| Remove | |||
| 1 | Remove wheel and tire assemblies. | ||
| Model 205 | AR40.10-P-1102A | ||
| MODEL 207 | AP40.10-P-4050CW | ||
| MODEL 212, 218 | AP40.10-P-4050EW | ||
| Check | |||
| 2 | Assess condition of brake disks (1). | If the assessment of the brakes is not OK, ↓ Replace brake disks (1). |
AP42.10-P-4256EW |
| Measure | |||
| 3 | Measure brake disk thickness on front axle using vernier caliper (010). | Model 205 front axle Brake disk thickness | *BE42.10-P-1001-08W |
| Model 207, 212, 218 front axle Brake disk thickness | BE42.10-P-1001-08P | ||
Caliper gauge If the wear limit has been exceeded or will be exceeded before the next brake lining change, ↓ Replace brake disks (1). |
Fig 1 | ||
| 4 | Measure brake disk thickness on rear axle using vernier caliper (010). | Model 205 rear axle Brake disk thickness | *BE42.10-P-1001-09U |
| Model 207, 212, 218 rear axle Brake disk thickness | BE42.10-P-1001-09O | ||
If the wear limit has been exceeded or will be exceeded before the next brake lining change, ↓ Replace brake disks (1). |
Fig 1 | ||
| Install | |||
| 5 - |
Install wheel and tire assemblies. | ||
| Model 205 | AR40.10-P-1102A | ||
| Model 207 | AP40.10-P-4050CW | ||
| MODEL 212, 218 | AP40.10-P-4050EW |
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | Model 207.303/304/322/323/356/357/361/367/403/404/422/423/456/457/461 except code 950 (AMG Sports package) except code 952 (Sports package) Model 207.326/336/388/426/436 except code 950 (AMG Sports package) except code P96 (Sports Package - exterior) Model 207.355/359/455/459 |
Model 207.301/302/303/304/322/323/347/348/356/357/361/367/401/402/403/404/422/423/447/448/456/457/461 with code 950 (AMG Sports package) Model 207.301/302/303/304/322/323/347/348/356/357/361/367/401/402/403/404/422/423/447/448/456/457/461 with code 952 (Sports package) Model 207.326/334/336/388/426/434/436 with code 950 (AMG Sports package) Model 207.326/334/336/388/426/434/436 with code P96 (Sports Package - exterior) Model 207.362/365/372/462/465/472 |
||
|---|---|---|---|---|---|
| BE42.10-P-1001-08P | Brake disk thickness | New | mm | 32, 0 | 32 |
| Wear limit | mm | 29, 4 | 30 | ||
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | Model 207.301/302/347/348/401/402/447/448 except code 950 (AMG Sports package) except code 952 (Sports package) Model 207.334/434 except code 950 (AMG Sports package) except code P96 (Sports Package - exterior) |
Model 207.373/473 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-08P | Brake disk thickness | New | mm | 28, 0 | 36 |
| Wear limit | mm | 25, 4 | 34 | ||
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | Model 212.001/201 except code 950 (AMG Sports package) except code 978 (Chassis - special version) except code P96 (Sports Package - exterior) Model 212.002/005/034/048/052/202/205/248 except code 950 (AMG Sports package) except code 951 (Sports package USA) except code 952 (Sports package) except code P96 (Sports Package - exterior) Model 212.003/004/082 with code 1U9 (Lastenstufen-Konzept) except code 460 (Canada version) except code 494 (US version) except code 950 (AMG Sports package) except code 951 (Sports package USA) except code P96 (Sports Package - exterior) Model 212.006/206/234/236 except code 950 (AMG Sports package) except code P96 (Sports Package - exterior) Model 212.035 |
Model 212.001/201 with code 978 (Chassis - special version) Model 212.003/004/082 except code 1U9 (Lastenstufen-Konzept) except code 460 (Canada version) except code 494 (US version) except code 950 (AMG Sports package) except code 951 (Sports package USA) except code P96 (Sports Package - exterior) Model 212.011/020/023/024/025/026/036/040/041/047/053/054/055/056/057/059/065/067/087/088/089/093/154/203/204/211/220/221/223/224/225/226/247/254/256/257/267/282/287/289/293 except code 950 (AMG Sports package) except code 951 (Sports package USA) except code 952 (Sports package) except code P96 (Sports Package - exterior) Model 212.094/13/14/162/19 |
||
|---|---|---|---|---|---|
| BE42.10-P-1001-08P | Brake disk thickness | New | mm | 28, 0 | 32, 0 |
| Wear limit | mm | 25, 4 | 29, 4 | ||
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | Model 212.001/002/005/011/020/023/024/025/026/034/036/040/041/047/048/052/053/054/055/056/057/059/065/067/087/088/089/093/154/201/202/203/204/205/211/220/221/223/224/225/226/247/248/254/255/256/257/259/267/282/287/288/289/293 with code 950 (AMG Sports package) Model 212.001/002/005/011/020/023/024/025/026/034/036/040/041/047/048/052/053/054/055/056/057/059/065/067/087/088/089/093/154/201/202/203/204/205/211/220/221/223/224/225/226/247/248/254/255/256/257/259/267/282/287/288/289/293 with code P96 (Sports Package - exterior) Model 212.002/005/011/020/023/024/025/026/034/036/040/041/047/048/052/053/054/055/056/057/059/065/067/087/088/089/093/154/202/203/204/205/211/220/221/223/224/225/226/247/248/254/255/256/257/259/267/282/287/288/289/293 with code 951 (Sports package USA) Model 212.002/005/011/020/023/024/025/026/034/036/040/041/047/048/052/053/054/055/056/057/059/065/067/087/088/089/093/154/202/203/204/205/211/220/221/223/224/225/226/247/248/254/255/256/257/259/267/282/287/288/289/293 with code 952 (Sports package) Model 212.003/004/082 with code 460 (Canada version) with code 951 (Sports package USA) except code 1U9 (Lastenstufen-Konzept) Model 212.003/004/082 with code 494 (California version) with code 951 (Sports package USA) except code 1U9 (Lastenstufen-Konzept) Model 212.003/004/082 |
Model 212.073/091/273/291 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-08P | Brake disk thickness | New | mm | 32 | 36 |
| Wear limit | mm | 30 | 34 | ||
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | Model 212.074/075/076/077/092/274/275/276/277/292 except code B07 (AMG - ceramic brake system) |
Model 218.30/32/336/35/36/393/394/397/90/92/936/959/96/993/994/997 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-08P | Brake disk thickness | New | mm | 36 | 32 |
| Wear limit | mm | 33 | 30 | ||
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | Model 218.373/391/973/991 | Model 218 with engine 157 except code B07 (AMG - ceramic brake system) |
||
|---|---|---|---|---|---|
| BE42.10-P-1001-08P | Brake disk thickness | New | mm | 36 | 36 |
| Wear limit | mm | 34 | 33 | ||
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | Model 205.000/001/011/014/015/040/078/079/200/201/211/214/215/278/280/301/314/315/376/378/379/380/401/414/415/476/478/480 with code P31/U29 model 205.002/004/005/007/036/037/042/043/044/204/205/207/236/237/240/242/243/244/304/305/340/342/343/404/405/440/442/443 with code P31 model 205.075/076 with code P31/U29 except code 700/944 model 205.275/276 with code P31/U29 except code 944 | Model 205.000/200/376/476 except code P31/U29 Model 205.001/201 with code 39R/55R/68R/R00/R89 Model 205.003 Model 205.036/037/236/237/240/244/340/440 except code P31 Model 205.040 except code 700/P31/U29 Model 205.075/076 except code 944/700/P31/U29 Model 205.275/276 except code 944/P31/U29 |
||
|---|---|---|---|---|---|
| BE42.10-P-1001-08W | Brake disk thickness | New | mm | 30, 0 | 24, 0 |
| Wear limit | mm | 28, 0 | 21, 4 | ||
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | Model 205.001/201 except code 39R/55R/68R/P31/R00/R89/U29 Model 205.002/004/005/204/205/304/305/404/405 except code P10/P31 Model 205.007/042/043/044/207/242/243/342/343/442/443 except code P31 Model 205.011/014/211/214/280/301/314/380/401/414/480 except code P31/U29 Model 205.015/215/278/315/378/379/415/478 except code 459/P31/U29 |
Model 205.002/004/005/204/205/304/305/404/40 5 with code P10, model 205.006/008 except code 494/P31, model 205.012 with code P76 except code 494, model 205.015/078/215/278/315/378/379/415/47 8 with code 459, model 205.018/218 except code P31/U29, model 205.045 except code 494/700/P31, model 205.208/245 except code P31 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-08W | Brake disk thickness | New | mm | 28, 0 | 30, 0 |
| Wear limit | mm | 25, 4 | 27, 4 | ||
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | Model 205.006/008/009/012/045/048/049/208/209/212/245/248/249/308/309/345/348/349/408/445/448/449 with code P31 model 205.013/047/053/066/147/213/247/253/266/366/466 model 205.018/218/318/418 with code P31/U29 model 205.019/219/319 with code 459/P31/U29 model 205.054 except code 944 model 205.249 with code U29 | Model 205.006/008/012/045 with code 494, model 205.009/048/049/209/212/248/308/309/345/348/349/408/445/448/449 except code P31, model 205.012 with code P15, model 205.012 with code P23, model 205.019/219/319 except code 459/P31/U29, model 205.040/045/077/078/079/080/083 with code 700, | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-08W | Brake disk thickness | New | mm | 32, 0 | 32, 0 |
| Wear limit | mm | 30, 0 | 29, 4 | ||
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | Model 205.054 with code 944 Model 205.075/076 with code 944 except code 700/P31/U29 Model 205.275/276 with code 944 except code P31/U29 |
Model 205.064/264/364/464 Model 205.086/087/286/287/386/387/486/487 with code B06 |
||
|---|---|---|---|---|---|
| BE42.10-P-1001-08W | Brake disk thickness | New | mm | 32, 0 | 36, 0 |
| Wear limit | mm | 31, 95 | 34, 0 | ||
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | Model 205.075/076 with code 700 except code 944/P31/U29 Model 205.077 except code 700 Model 205.078 except code 459/700/P31/U29 Model 205.079/080 except code 700/P31/U29 Model 205.140/142/143/176/277/377/477 |
Model 205.083/283/383/483 with code 494 except code P31/U29, model 205.084/284/384/484 except code 459/494/P31/U29, model 205.084/284/384/484 with code 494 except code 459/P31/U29, model 205.145/148/177/178/183 model 205.249 except code P31/U29, model 205.318/418 except code P31/U29 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-08W | Brake disk thickness | New | mm | 28, 0 | 32, 0 |
| Wear limit | mm | 25, 4 | 29, 4 | ||
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | Model 205.083/283/383/483 with code 494+P31 Model 205.083/283/383/483 with code 494+U29 Model 205.084/284/384/484 with code 459 except code 494 Model 205.084/284/384/484 with code 459+494 Model 205.084/284/384/484 with code 494+P31 Model 205.084/284/384/484 with code 494+U29 Model 205.084/284/384/484 with code P31 except code 494 Model 205.084/284/384/484 with code U29 except code 494 |
Model 205.086/087/286/287/386/387/486/487 with CODE U70 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-08W | Brake disk thickness | New | mm | 32, 0 | 36, 0 |
| Wear limit | mm | 30, 0 | 33, 0 | ||
CHECK VALUES FOR REAR AXLE BRAKE DISKS
| Number | Designation | Model 207.301/302/303/304/334/336/347/348/401/402/403/404/434/436/447/448 | Model 207.322/323/326/355/356/357/359/361/362/365/367/372/373/388/422/423/426/455/456/457/459/461/462/465/472/473 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-09O | Brake disk thickness | New | mm | 10, 0 | 22, 0 |
| Wear limit | mm | 8, 3 | 19, 4 | ||
CHECK VALUES FOR REAR AXLE BRAKE DISKS
| Number | Designation | Model 212.001/002/005/006/034/035/040/041/048/052/201/202/205/206/234/248, model 212.003 ## as of 007599, 212.097 except code 1U9, model 212.011/211/2 36/247 except code 978, model 212.036/047 except code Z04, model 212.082 except code 1U9/978 | Model 212.003 ## as of 007599 with code 1U9, model 212.003 ## up to 007598 except code 1U9, model 212.004/02/053/054/055/056/057/061/065/067/080/087/089/093/094/095/098/099/14/154/16/19/204/22/254/255/256/257/265/267/280/287/288/289/293/294/297/298, model 212.036/047 with code Z04, model 212.059/088/203/259/261/282/299 except code 978, model 212.082/097 with code 1U9 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-09O | Brake disk thickness | New | mm | 10, 0 | 22, 0 |
| Wear limit | mm | 8, 3 | 19, 4 | ||
CHECK VALUES FOR REAR AXLE BRAKE DISKS
| Number | Designation | Model 212.011/059/082/088/203/211/236/247/259/261/282/299 with code 978, model 212.072/073/090/091/272/273/291 | Model 212.074/075/076/077/092/274/275/276/277/292 except code B07 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-09O | Brake disk thickness | New | mm | 24, 0 | 26, 0 |
| Wear limit | mm | 21, 4 | 24, 0 | ||
CHECK VALUES FOR REAR AXLE BRAKE DISKS
| Number | Designation | Model 218 with engine 274, 651 | Model 218 with engine 276, 642 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-09O | Brake disk thickness | New | mm | 10 | 22 |
| Wear limit | mm | 8, 3 | 19, 4 | ||
CHECK VALUES FOR REAR AXLE BRAKE DISKS
| Number | Designation | Model 218 with engine 278 | Model 218 with engine 157 except code B07 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-09O | Brake disk thickness | New | mm | 24 | 26 |
| Wear limit | mm | 21, 4 | 24 | ||
CHECK VALUES FOR REAR AXLE BRAKE DISKS
| Number | Designation | Model 205.000/001/002/003/004/005/007/011/014/015/036/037/040/044/075/076/077/078/140/176/177/178/200/211/214/215/236/237/240/244/275/276/301/304/305/314/315/340/376/377/378/414/415/440/476, model 205.006/008/009/042/043/045/048/049/142/143/145/148/242/243/245/248/308/309/342/343/345/348/349/404/405/408/442/443/445/448 except code P31, | Model 205.006/008/009/042/043/045/048/049/142/143/145/148/242/243/245/248/308/309/342/343/345/348/349/404/405/408/442/443/445/448 with code P31, model 205.012/013/047/053/054/066/079/080/083/084/147/183/212/213/247/253/266/280/283/284/366/379/380/383/384/466/480/483/484, model 205.018/019/201/218/219/277/278/318/319/401/418/477/478 with code P31/U29, | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-09U | Brake disk thickness | New | mm | 12, 0 | 22, 0 |
| Wear limit | mm | 10, 3 | 19, 4 | ||
CHECK VALUES FOR REAR AXLE BRAKE DISKS
| Number | Designation | Model 205.018/019/201/218/219/277/278/319/401/418/477/478 except code P31/U29, model 205.204/205/207/208/209 except code P10/P31, model 205.249/449 with code 494 | Model 205.064/264/364/464 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-09U | Brake disk thickness | New | mm | 12, 0 | 24, 0 |
| Wear limit | mm | 10, 3 | 21, 4 | ||
CHECK VALUES FOR REAR AXLE BRAKE DISKS
| Number | Designation | Model 205.086/087/286/287/386/387/486/487 except code P31 | Model 205.086/087/286/287/386/387/486/487 with code P31, model 205.204/205/207/208/209 with code P10/P31, model 205.249/449 except code 494 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-09U | Brake disk thickness | New | mm | 26, 0 | 22, 0 |
| Wear limit | mm | 24, 0 | 19, 4 | ||
