Brake System - Inspect Fluid Level - AP42.10-P-4210CAA

MODEL 205

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Check
1	Open engine hood
2	Remove cover of the brake fluid reservoir

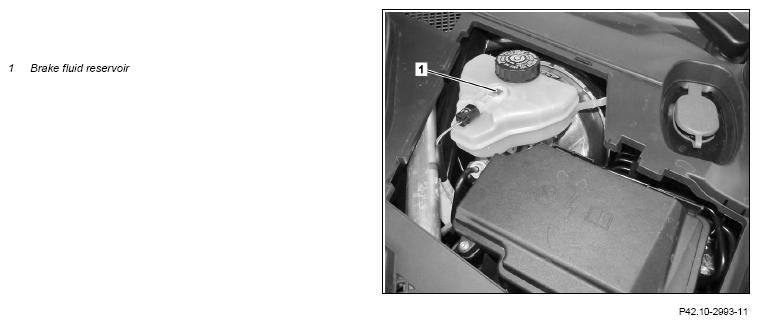

3	Check fluid level in brake fluid reservoir (1)	Vehicles with manual transmission have a common brake fluid reservoir (1) for clutch operating mechanism and brake system. The fluid level must be between the "MIN" and "MAX" markings on the brake fluid reservoir (1). If the fluid level is too low: ↓ Determine and rectify cause, subject to separate repair order If the fluid level is too high: ↓ Extract brake fluid until the fluid level is at the "MAX" mark
4	Install cover of the brake fluid reservoir
5	Close engine hood
