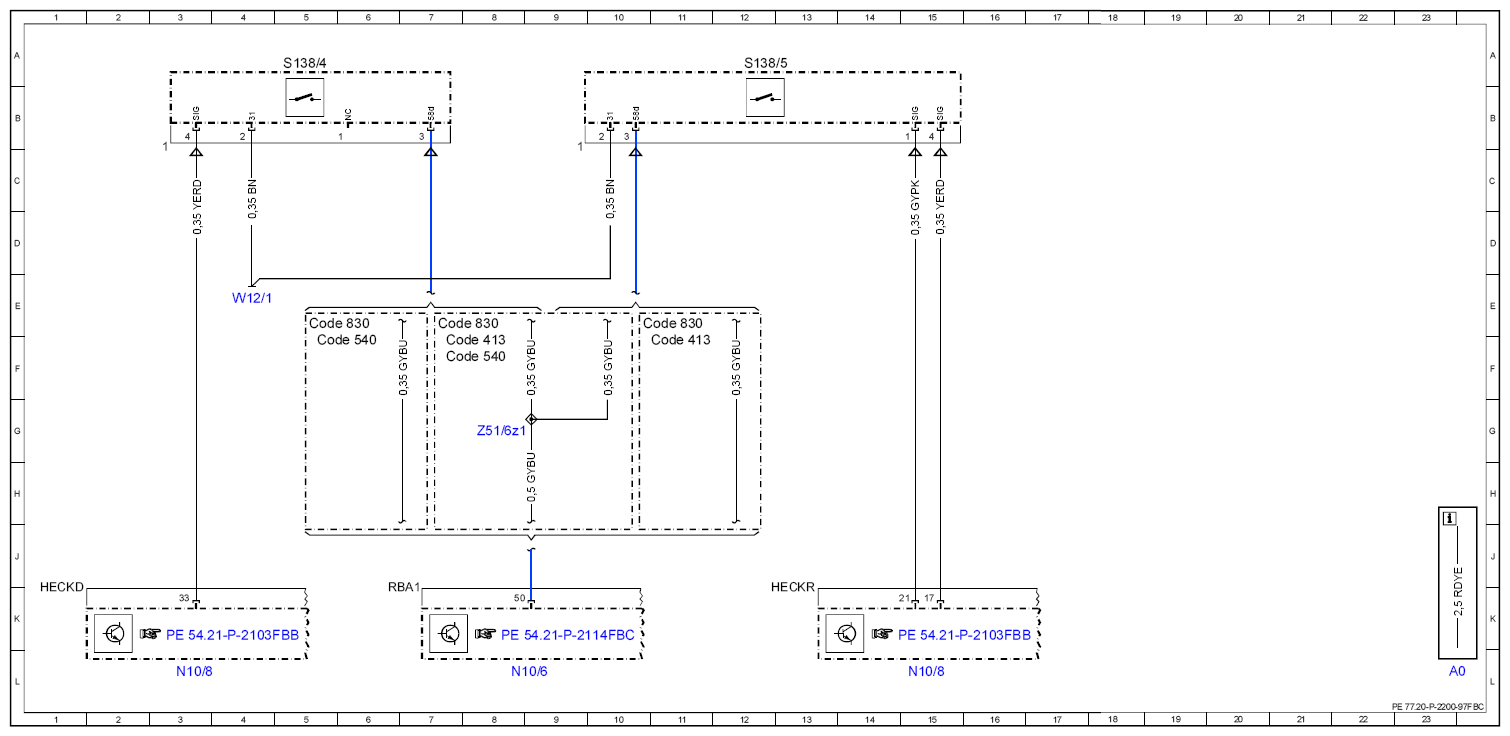

Electric Wiring Diagram For Panoramic Sliding Roof - PE77.20-P-2200-97FBC
Model 205 as of model year 2019 with code 413 (Panoramic sliding sunroof/glass roof) with code 540 (Electric roller blind for rear window) with code 830 (China version)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| Code 413 | Panoramic sliding sunroof | 7F |
| Code 413 | Panoramic sliding sunroof | 11F |
| Code 540 | Electric roller sun blind for rear window | 5F |
| Code 540 | Electric roller sun blind for rear window | 7F |
| Code 830 | Additional parts for China vehicles | 5E |
| Code 830 | Additional parts for China vehicles | 7E |
| Code 830 | Additional parts for China vehicles | 10E |
| N10/6 | Front SAM control unit | 8L |
| N10/8 | Rear SAM control unit | 3L |
| N10/8 | Rear SAM control unit | 15L |
| S138/4 | Rear window roller sun blind button | 5A |
| S138/5 | Panoramic sliding sunroof roller sun blind button | 12A |
| W12/1 | Right center console ground point | 4E |
| Z51/6z1 | Circuit 58d vehicle interior connector sleeve | 8G |
