Electric Wiring Diagram For Panoramic Sliding Roof - PE77.20-P-2200-97FBB

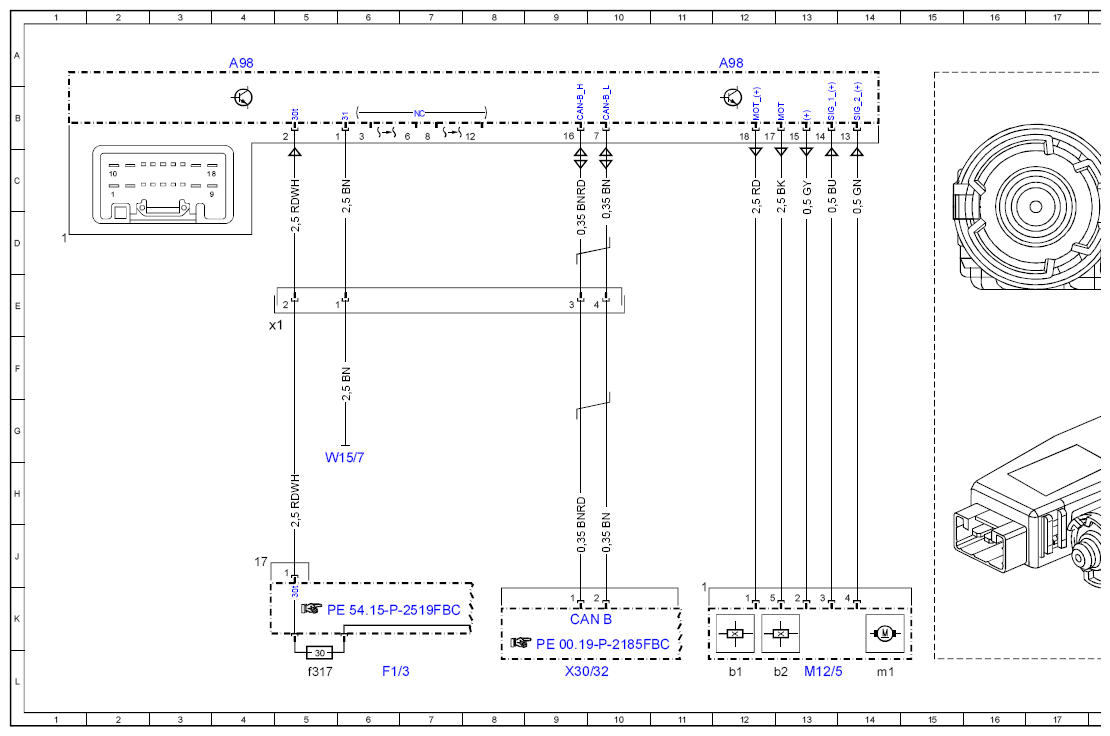

Model 205 as of model year 2019 with code 413 (Panoramic sliding sunroof/glass roof) except code 540 (Electric roller blind for rear window) except code 830 (China version) Control module A98
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |

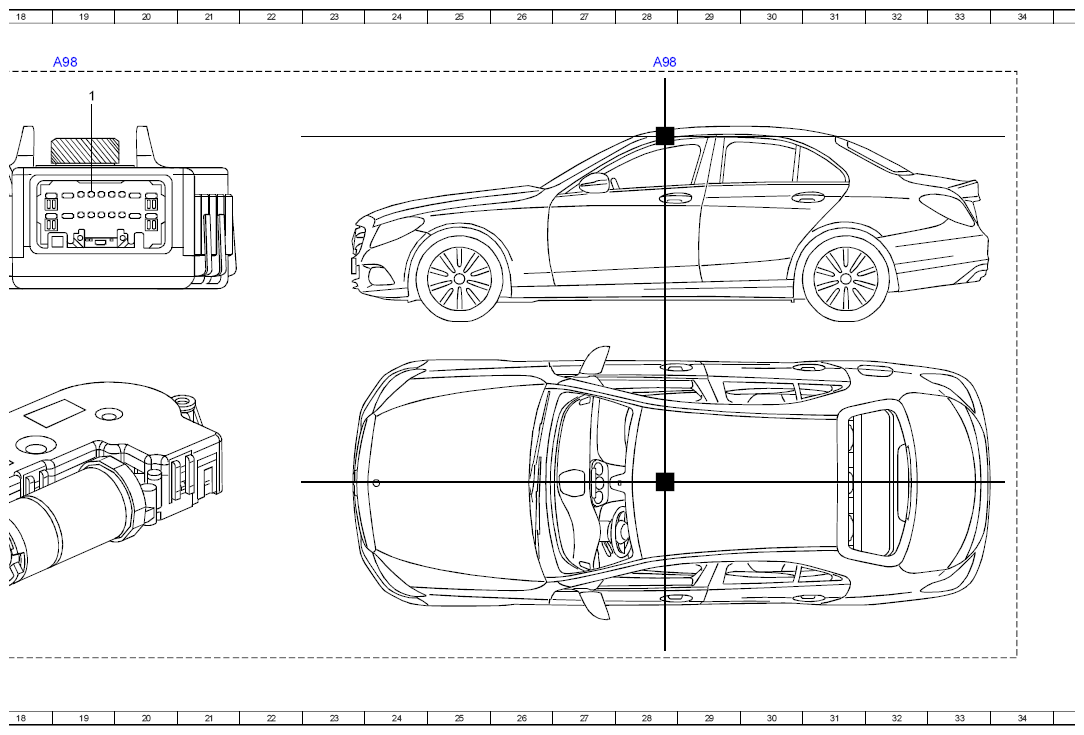

| A98 | Panoramic sliding roof control module | 4A |
| A98 | Panoramic sliding roof control module | 12A |
| A98 | Panoramic sliding roof control module | 19A |
| A98 | Panoramic sliding roof control module | 28A |
| A98x1 | Panoramic sliding sunroof control module electrical connector | 5E |
| CAN | B Interior CAN | 9K |
| F1/3 | Passenger-side A-pillar fuse box | 6L |
| F1/3f317 | Fuse 317 | 5L |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 13L |
| M12/5b1 | Hall sensor 1, panoramic sliding roof roller sun blind | 12L |
| M12/5b2 | Hall sensor 2, panoramic sliding roof roller sun blind | 13L |
| M12/5m1 | Panoramic sliding roof roller sun blind motor | 14L |
| W15/7 | Right front footwell ground point | 5H |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 9L |
