Remove/Install Trunk Floor Front Section - AR68.80-P-0005LWW

Model 205.0 (except 205.013/047/053/054), 205.1 (except 205.147), 205.3, 213.0 (except 213.016/050/053/054), 213.1 (except 213.153/155)

Shown on model 205.0

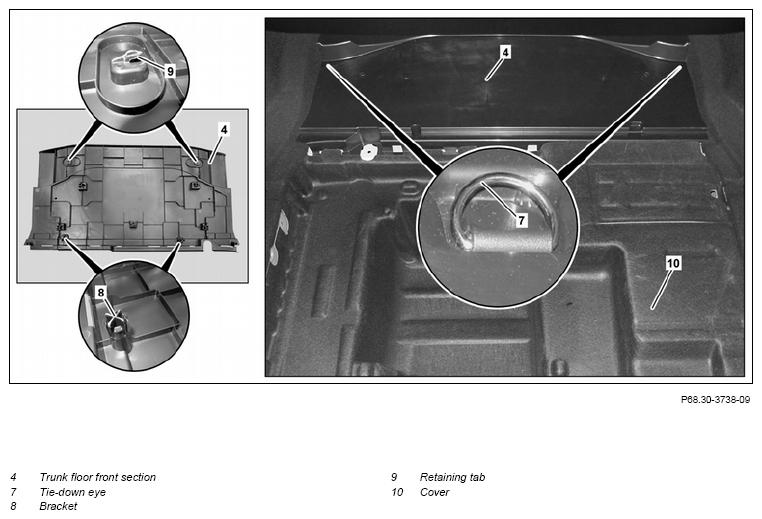

Fig 1: Trunk Floor Front Section Components Location - Model 205.064 and Model 205.3; Shown on model 205.0

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0 with code 287 (Folding seat backrests in rear)

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install

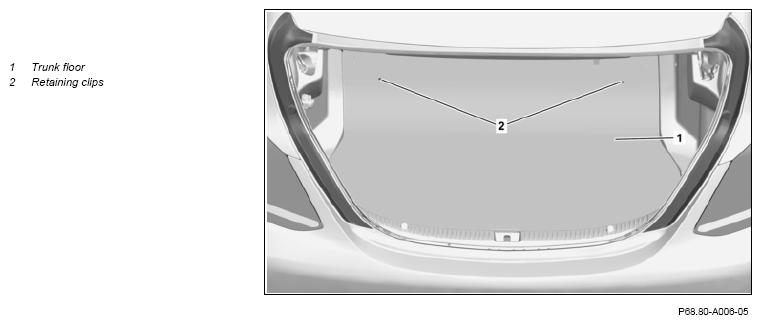

1	Remove retaining clips (2) and trunk floor (1).	Dismantling tool	Fig 2
2	Remove trim (10).
3.1	Remove tie-down eyes (7).	Model 205.0 (except 205.013/047/053/054), 205.3, 213.0 (except 213.016/050/053/054) with code 287 (Folding seat backrests in rear passenger compartment) Model 205.0 (except 205.013/047/053/054), 205.3, 213.0 (except 213.016/050/053/054) with code 30P (Stowage Space package)
		Model 213.0 (except 213.016/050/053/054) with code 287 (Folding seat backrests in rear passenger compartment) Model 213.0 (except 213.016/050/053/054) with code 30P (Stowage Space package) Bolt, cargo retainers/tie-down eye to body	BA68.50-P-1001-03J
		Model 205.0 (except 205.013/047/053/054), 205.3 with code 287 (Folding seat backrests in rear passenger compartment) Model 205.0 (except 205.013/047/053/054), 205.3 with code 30P (Stowage Space package) Screw/bolt for tie-down eye	*BA68.50-P-1001-03I
3.2	Remove expansion rivet at trunk floor front section (4).	Model 205.0 (except 205.013/047/053/054), 205.3, 213.0 (except 213.016/050/053/054) except code 287 (Folding seat backrests in rear passenger compartment) Model 205.1 (except 205.147), 213.1 (except 213.153/155) Expansion rivets are installed instead of tie-down eyes (7). Dismantling tool	Fig 2
4	Unclip trunk floor front section (4) and remove towards rear.	Installation:  Ensure that retaining tabs (9) and brackets (8) are seated correctly.
5	Install in the reverse order.

Fig 2: Identifying Dismantling Tool (000 589 95 63 00)
