Remove/Install Glass Adjustment Drive - AR88.70-P-9060LF
Model 205, 213, 217, 222, 238, 253, 293

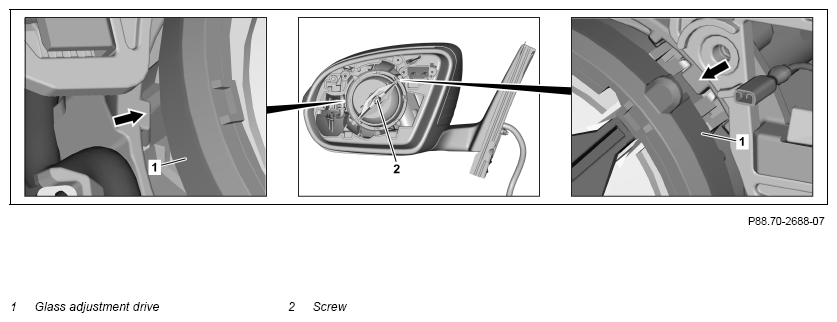

Shown on left outside mirror, model 222
| Remove/install | |||
| 1 | Remove outside mirror trim. | AR88.70-P-9040LF | |
| 2 | Disconnect electrical connector of the glass adjustment drive (1). | ||
| 3 | Remove screw/bolt (2). | ||
| 4 | Release catch hooks (arrows) and remove glass adjustment drive (1). | ||
| 5 | Install in the reverse order |
