Retrofit Illuminated Door Sill Molding With Mercedes-Benz Lettering - AZ82.20-P-0005CLW

Model 205.3

Courtesy of MERCEDES-BENZ USA

	Remove
1	Release front SAM control unit (N10/6)
			AR54.21-P-1254LW
2	Detach door seals from entrance area at left and right
3	Use suitable means to remove front right door sills and remove adhesive residue
	Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks		AH00.00-P-0013-01AK
		Commercially available devices/tools  Battery-operated drill Left and right door sill moldings are no longer required. Use commercially available surface conditioning disk with dia.100 mm.
4	Remove front floor covering on driver side
			AR68.20-P-2050LW
5	Remove front floor covering on front passenger side
			AR68.20-P-2070LW
6	Remove front footrest on passenger side
7	Fit electrical wiring harness of illuminated door sill molding with Mercedes-Benz lettering to the front		AZ82.20-P-0005-01CLW
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
		Right front footwell ground point (CAN)	*BA00.19-P-1019-01E
8	Install control unit for illuminated door sill moldings with Mercedes-Benz lettering		AZ82.20-P-0005-05CLW
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
		Binder Duotec® Pilz in Pilz Klett - with adhesive 32	*BR00.45-Z-1084-02A
		Self-adhesive felt strip 40X2 mm	*BR00.45-Z-1074-01A

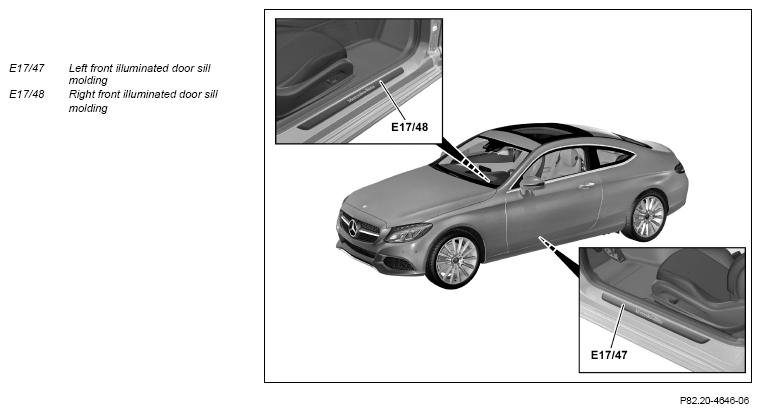

9	Install front left illuminated door sill molding (E14/47) and front right illuminated door sill molding (E14/48)		AZ82.20-P-0005-10CLW
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
		Cleaner	*BR00.45-Z-1025-04A
	Check
10	Carry out function check	Front left illuminated door sill molding (E14/47) or front right illuminated door sill molding (E14/48) is switched on by opening corresponding front door. Automatic shutoff takes place after approx. 5 min.
	Install
11	Install footrest at front on front passenger side
12	Install front floor covering on front passenger side
			AR68.20-P-2070LW
13	Install front floor covering on driver's side
			AR68.20-P-2050LW
14	Install door seals in entrance area at left and right
15	Fasten front SAM control unit (N10/6) in place
			AR54.21-P-1254LW
	Update Vehicle Documentation (VeDoc)
16	Attach a note "Illuminated door sill moldings retrofitted as per AZ82.20-P-0005CLW" under field organization texts to design groups 68 and 82

GROUND POINTS

Number	Designation			Model 205
BA00.19-P-1019-01E	Right front footwell ground point (CAN)	W15/8	Nm	10

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1074-01A	Self-adhesive felt strip 40X2 mm	A 001 983 23 10
BR00.45-Z-1084-02A	Binder Duotec® Pilz in Pilz Klett - with adhesive 32	Klettband Technik Schultz UG
