Remove/Install License Plate Lamps - AR82.10-P-5161LW
Model 205.0/1
Model 213.0/1
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | Model 205.0/1 with code P17 (KEYLESS-GO package) Model 213.0/1 with code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Remove/install | |||

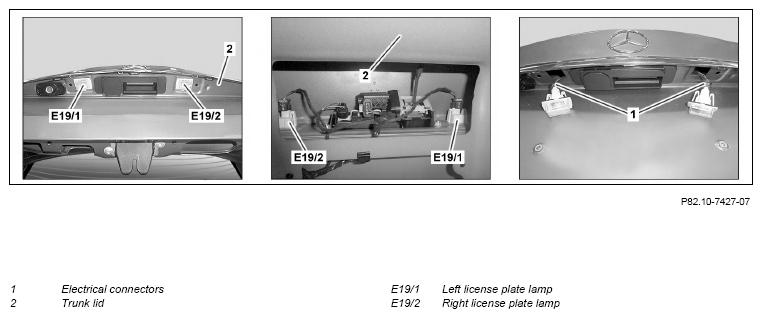

| 1 | Remove handle strip at trunk lid (2) | AR88.50-P-5062LF | |
| 2 | Detach trim at trunk lid (2) until left license plate lamp (E19/1) or right license plate lamp (E19/2) is accessible | Model 213.0/1 | AR68.30-P-8151LWE |
| Model 205.0/1 | AR68.30-P-8151LW | ||
| 3 | Release left license plate lamp (E19/1) or right license plate lamp (E19/2) and remove from trunk lid (2) until electrical connector (1) is accessible | ||
| 4 | Disconnect electrical connector (1) and remove left license plate lamp (E19/1) or right license plate lamp (E19/2) | ||
| 5 | Install in the reverse order |
