Remove/install passenger airbag unit - AR91.60-P-0680NKB
MODEL 242
MODEL 246
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical components to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such components. | AS91.00-Z-0008-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove glove compartment | AR68.10-P-1400NKB | |
| 2 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | ||
| 3 | Disconnect battery ground line | AR54.10-P-0003NKB | |

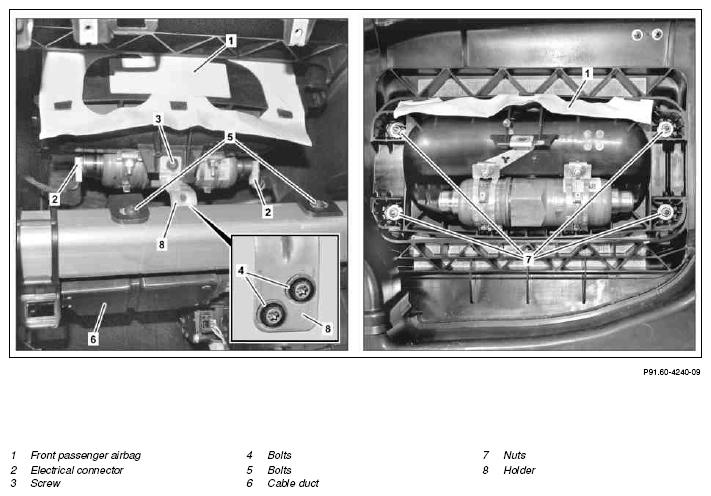

| 4 | Disconnect electrical connector (2) at front passenger airbag squib 1 and front passenger airbag squib 2 | ||
| 5 | Unscrew bolt (3) | *BA91.60-P-1008-01F | |
| 6 | Remove screws/bolts (5) and detach cable duct (6) from crossmember under instrument panel in direction of engine compartment and wedge using long wedge | Fig 2 | |
| 7 | Remove screws/bolts (4) from rear at crossmember under instrument panel and remove blank holder (8) | *BA91.60-P-1008-01F | |
| 8 | Unscrew nuts (7) and remove front passenger airbag (1) | If the front passenger airbag (1) is replaced, then the defective front passenger airbag (1) must be disposed of. | |
| Nut, front passenger airbag unit to instrument panel | *BA91.60-P-1002-01F | ||
| 9 | Install in the reverse order | ||
| 10 | Connect diagnostic system; read out fault memory | After replacing the front passenger airbag (1). | |
| AD00.00-P-2000-04A |
AIRBAG
| Number | Designation | MODEL 176, 242, 246 | |
|---|---|---|---|
| BA91.60-P-1002-01F | Nut, front passenger airbag unit to instrument panel | Nm | 5 |
AIRBAG
| Number | Designation | MODEL 176, 242, 246 | |
|---|---|---|---|
| BA91.60-P-1008-01F | Bolt, front passenger airbag unit to cross member under dashboard | Nm | 3, 5 |
