Remove/install fan unit - AR20.40-P-5050NKE
MODEL 242 with ENGINE 780

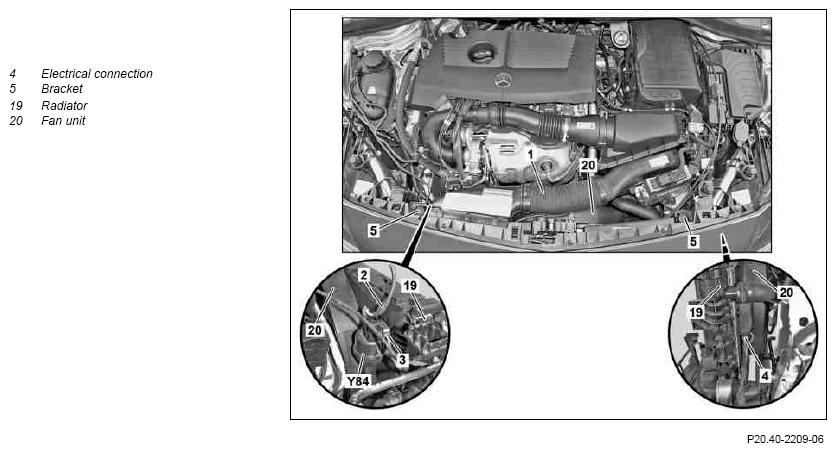

Shown on model 246 with engine 270
| Risk of injury due to fan starting unexpectedly | Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes. | AS20.40-Z-0001-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Open engine hood | ||
| 2 | Disconnect electrical connection (4) for fan motor, unclip from fan unit (20) and set aside | ||
| 3 | Remove both holders (5) of cooler (19) on front module | ||
| 4 | Swivel radiator package in engine direction, unclip fan unit (20) at cooler (19) and remove upwards | ||
| 5 | Install in the reverse order |
