Check charging cable and vehicle socket - AP54.10-P-5458B
MODEL 166.063, 205.047/147/247, 222.163, 242.890, 253.954

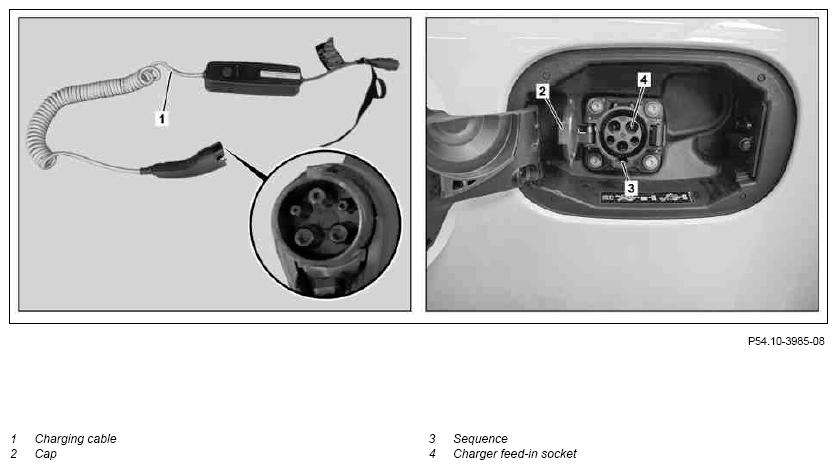

Shown on model 166.063, valid for model 166.063, 205.047/147/247, 222.163, 253.954

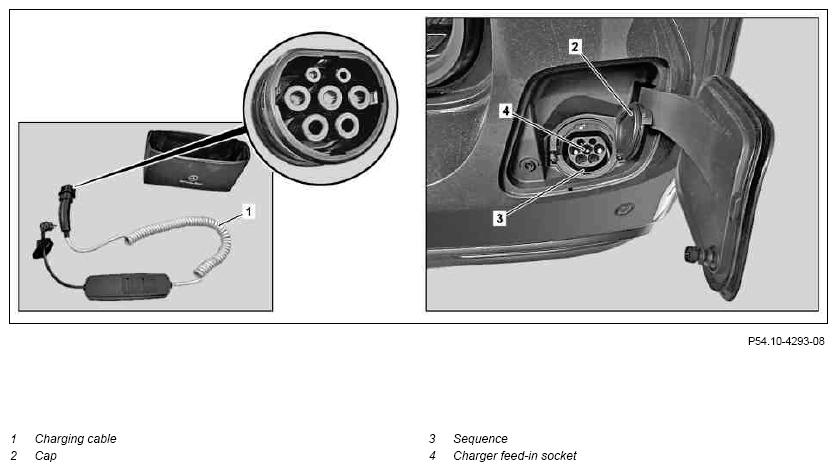

Shown on model 242.890, valid for model 242.890
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Remove charging cable (1) from vehicle | ||
| Check | |||
| 2 | Check entire length of charging cable (1), plugs and switches for cracks, kinks, bites, cuts, crushed areas, chafe marks and other damage. | If complaint present ↓ Replace charging cable (1) subject to separate repair order. |
|
| Install | |||
| 3 | Place charging cable (1) in vehicle | ||
| Check | |||
| 4 | Check charger feed socket (4) for damage | If complaint present ↓ Replace charger feed socket (4) subject to separate repair order. |
|
| 5 | Check that cap (2) is firmly seated on charger feed socket (4) | If complaint present ↓ Replace charger feed socket (4) subject to separate repair order. |
|
| 6 | Check drain (3) for clear passage and soiling | This is because water must not collect in the charger feed socket (4) area. If complaint present ↓ Rectify problem subject to separate repair order. |
