Remove/install trim strip on dashboard - AR68.10-P-1180NKB

MODEL 242, 246

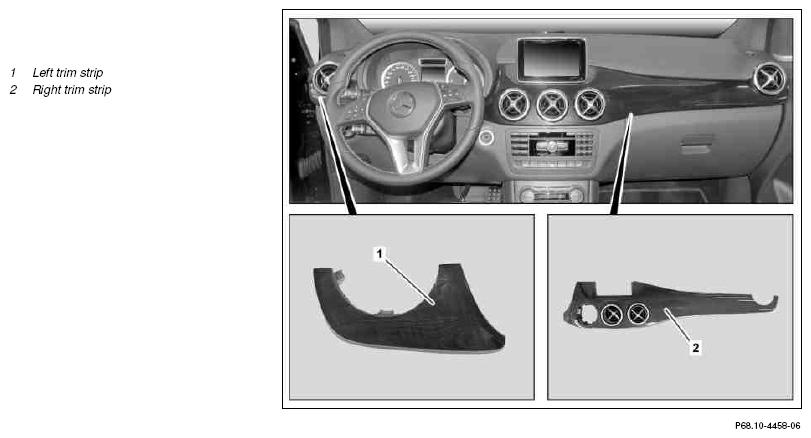

Fig 1: Identifying Dashboard Trim Strip Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

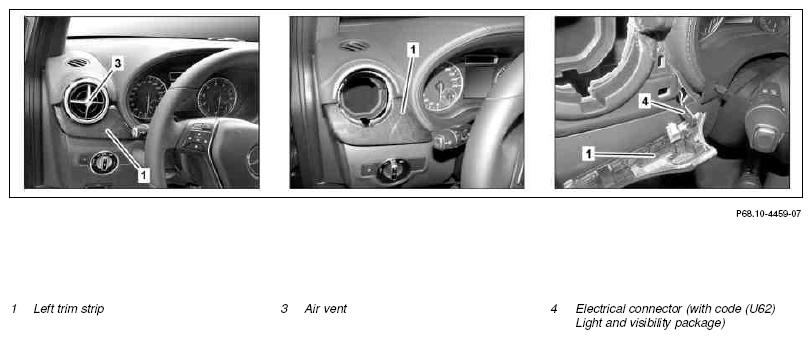

Fig 2: Identifying Dashboard Trim Strip Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

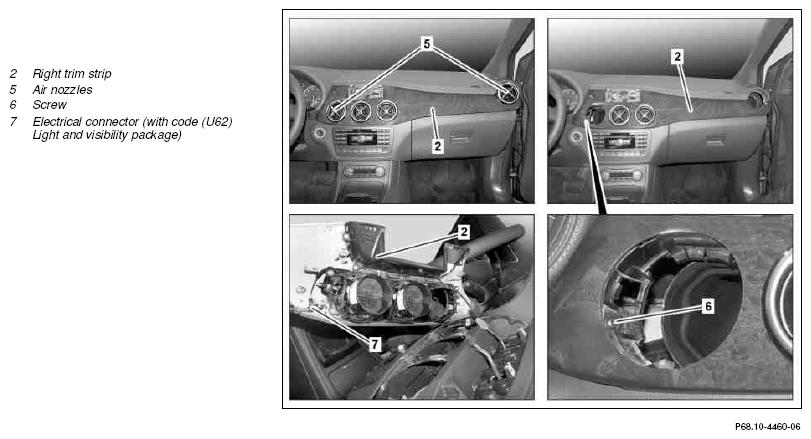

Fig 3: Identifying Dashboard Trim Strip Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove air vent (3)	When removing left trim strip (1).
			AR83.10-P-4740NKB
2	Remove air nozzles (5)	When removing right trim strip (2).
			AR83.10-P-4503NKB
3	Remove Audio/COMAND display	When removing right trim strip (2).
			AR82.60-P-7722NKB
4	Unclip left trim strip (1) and remove	When removing left trim strip (1). With code (U62) Light and visibility package, disconnect connector (4).
		Clip remover	Figure
5	Unscrew bolt (6), unclip right trim strip (2) and remove	When removing right trim strip (2). With code (U62) Light and visibility package, disconnect connector (7).
		Clip remover	Figure
6	Install in the reverse order
