Remove/install telephone antenna - AR82.62-P-0011NKB

MODEL 156, 176, 246 with CODE 228 (Auxiliary heater)

MODEL 156, 176, 246 with CODE 386 (Comfort telephony)

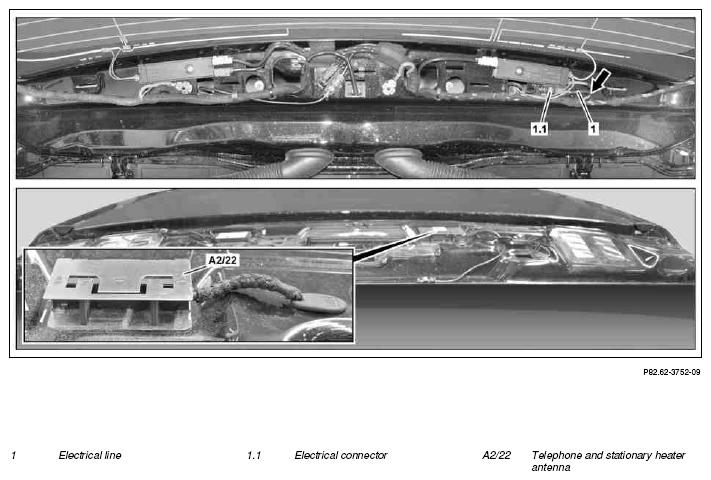

Fig 1: Identifying Telephone Antenna Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove liner on liftgate
2	Remove rear spoiler
3	Unclip electrical connector (1.1) from inside of rear-end door and disconnect
4	Release electrical line (1) and guide outwards through the opening (arrow) in the rear-end door
5	Detach telephone and stationary heater antenna (A2/22) using long wedge from rear-end door and remove	The telephone and stationary heater antenna (A2/22) is secured by an adhesive joint. The telephone and stationary heater antenna (A2/22) must always be replaced. Clean surface to be glued.
5		Long wedge	Fig 2
6	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
