Remove/install rear window wiper motor - AR82.30-P-6900NKB
MODEL 117.9, 156, 176, 242, 246
Shown on MODEL 246
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove liftgate wiper arm | AR82.30-P-6910NKB | |
| 2 | Remove door lining at liftgate | ||

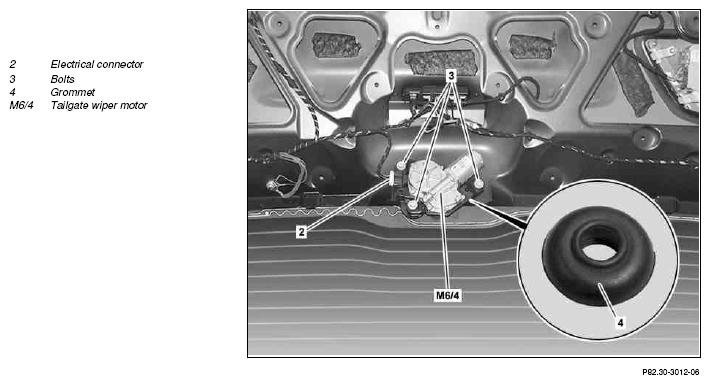

| 3 | Disconnect electrical connection (2) | ||
| 4 | Remove screws/bolts (3) | *BA82.30-P-1003-01O | |
| 5 | Pull liftgate wiper motor (M6/4) out of grommet (4) and remove | ||
| 6 | Check grommet (4) for damage, replace if necessary | ||
| 7 | Install in the reverse order |
WINDSHIELD WIPER
| Number | Designation | MODEL 117 | MODEL 156 | |
|---|---|---|---|---|
| BA82.30-P-1003-01O | Nut/screw/bolt, wiper motor to rear-end door | Nm | 8 | 8 |
WINDSHIELD WIPER
| Number | Designation | MODEL 176 | MODEL 242 | |
|---|---|---|---|---|
| BA82.30-P-1003-01O | Nut/screw/bolt, wiper motor to rear-end door | Nm | 8 | 8 |
WINDSHIELD WIPER
| Number | Designation | MODEL 246 | |
|---|---|---|---|
| BA82.30-P-1003-01O | Nut/screw/bolt, wiper motor to rear-end door | Nm | 8 |
