Remove/install loudspeaker amplifier control unit - AR82.62-P-7720NKB
MODEL 176 with CODE 810 (Sound system)
MODEL 242 with CODE 810 (Sound system)
MODEL 246 with CODE 810 (Sound system)
Shown on MODEL 246

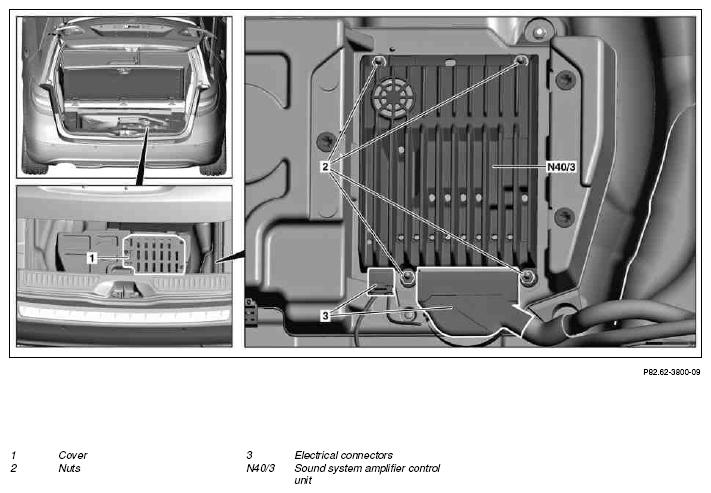

Fig 1: Identifying Loudspeaker Amplifier Control Unit Remove/Install Components - Shown On Model 246
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Remove/install | |||
| 1 | Connect Star Diagnosis and perform initial startup of sound system amplifier control unit (N40/3) | When replacing sound system amplifier control unit (N40/3). | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition and remove transmitter key | ||
| 3 | Unclip cover (1) | ||
| 4 | Unscrew nuts (2) | ||
| 5 | Remove sound system amplifier control unit (N40/3) from guide and disconnect electrical connectors (3) | ||
| 6 | Remove sound system amplifier control unit (N40/3) | ||
| 7 | Install in the reverse order | ||
| 8 | Perform function test |
