Remove/install license plate lamps - AR82.10-P-5161NKB

MODEL 242

MODEL 246

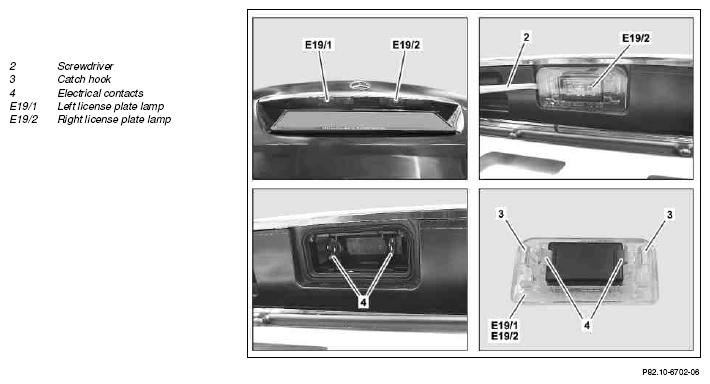

Fig 1: Identifying License Plate Lamps Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Use suitable screwdriver (2) to release the catch hooks (3) and remove left license plate lamp (E19/1) or right license plate lamp (E19/2) downwards	Carefully release catch hooks (3). Danger of breakage. Ensure that electrical contacts (4) are correctly seated.
2	Install in the reverse order
3	Perform function check of left license plate lamp (E19/1) or right license plate lamp (E19/2)
