Remove/install center high-mounted stop lamp - AR82.10-P-5375NKB

MODEL 242

MODEL 246

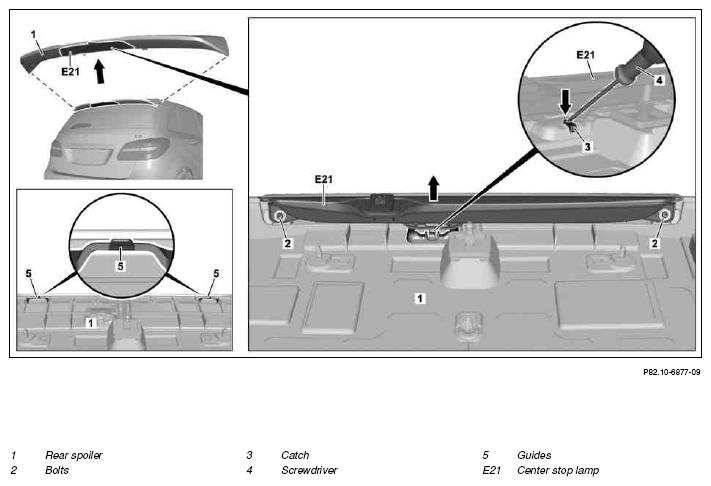

Fig 1: Identifying Center High-Mounted Stop Lamp Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear spoiler (1)
2	Remove screws/bolts (2) from center brake lamp (E21)
3	Push catch (3) at rear spoiler (1) downwards using a suitable screwdriver (4)
4	Remove center brake lamp (E21) from rear spoiler (1) in direction of arrow	Carefully remove center brake lamp (E21). Otherwise the guides (5) may be damaged. Ensure that washer nozzle is correctly seated on rear window washer system.
5	Install in the reverse order
6	Perform function check of center brake lamp (E21)
