Remove/install antenna amplifier module - AR82.62-P-8300NKB
MODEL 117.9
MODEL 156
MODEL 176
MODEL 242
MODEL 246
Shown on MODEL 246
| Remove/install | |||

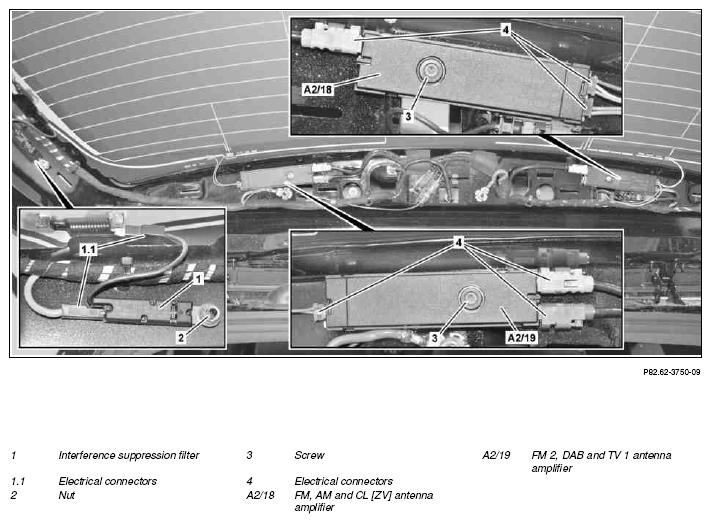

| 1 | Remove liftgate door lining | Fig 2 | |
| 2 | Remove screw/bolt (3) from FM, AM, and CL antenna amplifier (A2/18) or FM 2, DAB and TV 1 antenna amplifier (A2/19) | ||
| 3 | Disconnect each electrical connection (4) and remove FM, AM and CL antenna amplifier (A2/18) or FM 2, DAB and TV 1 antenna amplifier (A2/19) | Avoid tensile load on electrical lines to rear window. Otherwise the contact points may be damaged. |
|
| 4 | Unscrew nut (2) on interference suppression filter (1) | ||
| 5 | Disconnect electrical connectors (1.1) from interference suppression filter (1), unclip interference suppression filter (1) and remove | ||
| 6 | Install in the reverse order | ||
| Check | |||
| 7 | Check FM, AM and CL antenna amplifier (A2/18) or FM 2, DAB and TV 1 antenna amplifier (A2/19) for proper operation |
