Remove/install glove compartment - AR68.10-P-1400NKB

MODEL 242, 246

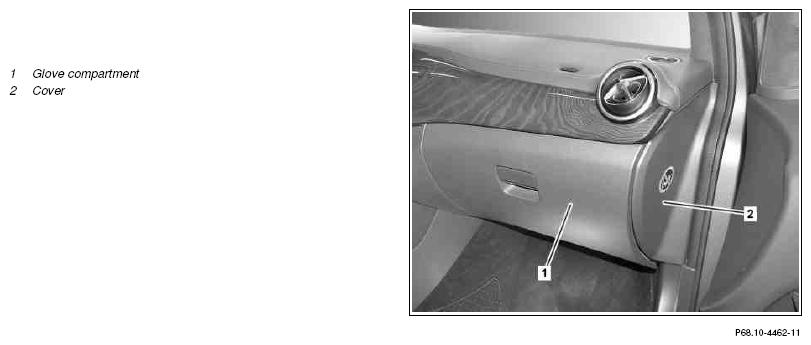

Fig 1: Identifying Glove Compartment Remove/Install Components (1 Of 4)

Courtesy of MERCEDES-BENZ USA

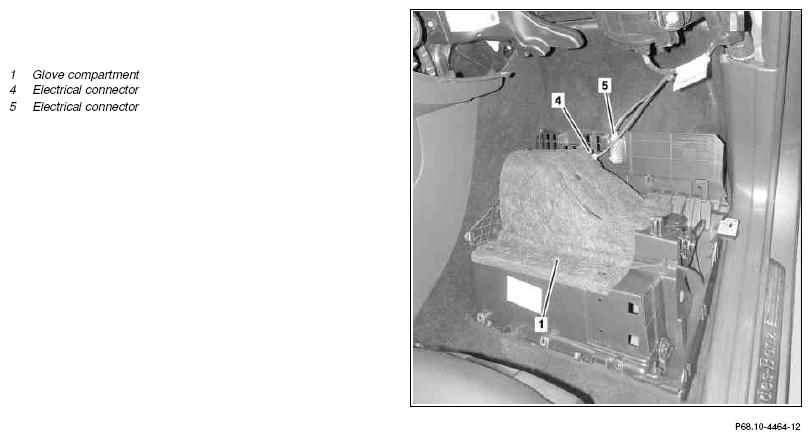

Fig 2: Identifying Glove Compartment Remove/Install Components (2 Of 4)

Courtesy of MERCEDES-BENZ USA

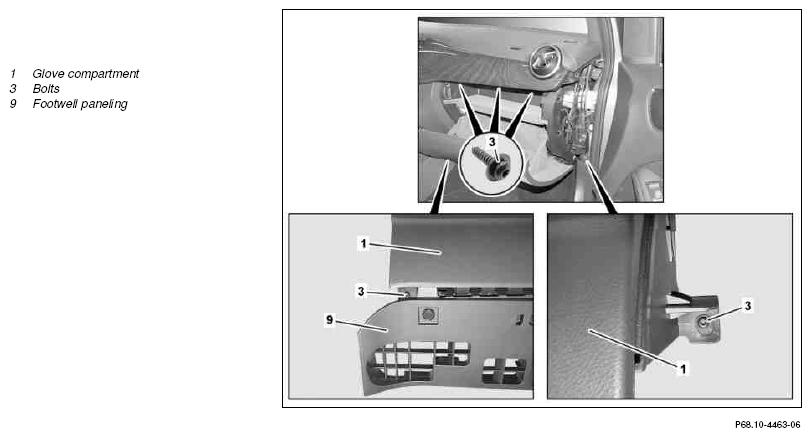

Fig 3: Identifying Glove Compartment Remove/Install Components (3 Of 4)

Courtesy of MERCEDES-BENZ USA

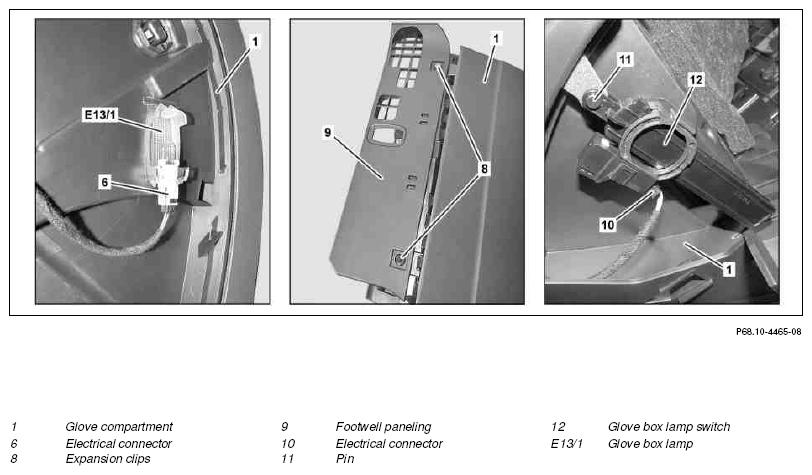

Fig 4: Identifying Glove Compartment Remove/Install Components (4 Of 4)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open glove compartment (1)
2	Unclip and remove molding (2)
3	Disconnect electrical connectors from bracket for navigation module	With code (508) Navigation box preinstallation or code (509) Navigation box
4	Unscrew bolts (3) and lay glove box (1) down in footwell
5	Disconnect electrical connectors (4, 5)
6	Guide glove box (1) out of vehicle
7	Disconnect electrical connector (6) and remove glove compartment lamp (E131)	When replacing glove compartment (1).
8	Remove expansion clip (8) and remove paneling in footwell (9)	When replacing glove compartment (1).
		Remove/install paneling in footwell MODEL 242, 246	AR68.30-P-4010NKB
		Clip remover	Fig 5
9	Disconnect electrical connector (10), remove pin (11) and unlock glove compartment lamp (12) by turning and remove	When replacing glove compartment (1).
10	Remove bracket for navigation module	With code (508) Navigation box preinstallation or code (509) Navigation box
11	Install in the reverse order

Fig 5: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
