Remove/install front section of Vario roof - AR77.50-P-3100W

MODEL 172.4

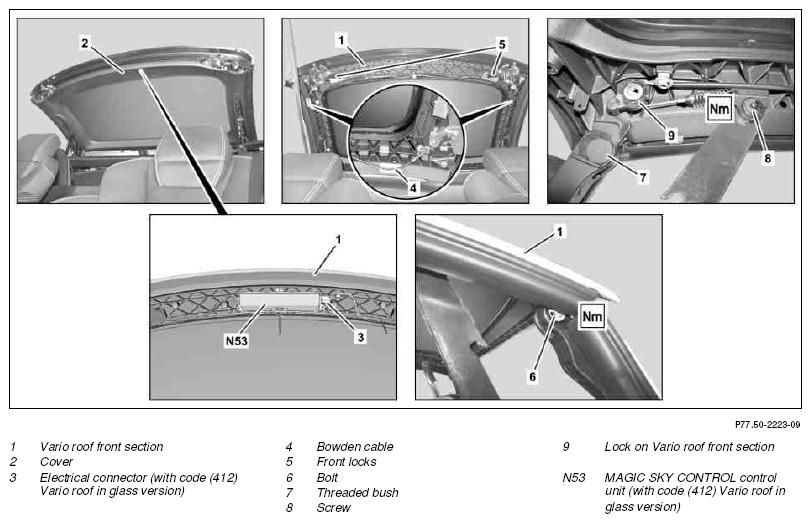

Fig 1: Identifying Front Section Of Vario Roof Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by moving parts that can pinch, crush  or, in extreme cases, even sever  extremities	No parts of the body or limbs should be within the operating range of the mechanism when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by body parts being trapped  or crushed  when working on a partially open Vario roof (in stop mode) or in its closing area as a result of the Vario roof suddenly collapsing	Secure Vario roof with a suitable special tool.	AS77.50-Z-0001-01A
	Risk of death  caused by touching parts conducting high voltages	Do not come into contact with parts that are under high voltage. Persons who are carriers of electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems.	AS77.00-Z-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on MAGIC SKY CONTROL	With code (412) Vario roof glass version	AH77.00-P-0001-01A
1	Moving Vario roof into intermediate position and securing		AR77.50-P-3000-01W
		Support	Figure
2	Disconnect battery ground line	On vehicles with code (412) Vario roof in glass version	AR54.10-P-0003W
3	Remove paneling (2) from Vario roof front section (1)
4	Disconnect electrical connector (3) from MAGIC SKY CONTROL control unit (N53)	On vehicles with code (412) Vario roof in glass version
5	Mask connector on electrical connector (3) with warning sticker	On vehicles with code (412) Vario roof in glass version To prevent unauthorized contact with MAGIC SKY CONTROL control unit (N53).
		Warning label	Figure
6	Mark installation position of electrical and hydraulic lines and Bowden cables (4) fastened to the Vario roof front secant (1)
	Notes on Vario roof assembly work		AH77.30-P-0002-01R
7	Expose all electrical and hydraulic lines fastened to Vario roof front section (1)
8	Remove left and right lock on Vario roof front section (9)		AR77.33-P-3487W
9	Remove both locks (5)	Lay front locks (5) with attached left Vario roof locked limit switch and right Vario roof locked limit switch down in vehicle interior.	AR77.33-P-3400W
10	Unscrew bolts (6) on left and right side of vehicle and remove together with associated threaded bushings (7).	Press bolts (6) toward center of vehicle when unscrewing. Otherwise the bolts (6) can damage the side seals on the Vario roof front section (1). Observe installation position of threaded bushings (7) Helper required to hold Vario roof front section (1).
			*BA77.33-P-1016-01A
		Screwdriver bit	Figure
			*BR00.45-Z-1133-02A
11	Unscrew bolts (8) on left and right side of vehicle, remove Vario roof front secant (1) with aid of helper and lay down on suitable base	Two bushings are located at the screw-on points. Secure against falling down.
			*BA77.33-P-1015-01A
			*BR00.45-Z-1133-02A
12	Install in the reverse order

SOFT TOP MECHANICAL COMPONENTS

Number	Designation		Model 172
BA77.33-P-1015-01A	Bolt, main guide to Vario roof front section	Nm	9
BA77.33-P-1016-01A	Bolt, C-pillar on Vario roof front section	Nm	9

Fig 2: Identifying Screwdriver Bit (126 589 00 10 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Support (230 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Warning Label (451 589 08 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1133-02A	Loctite 243	A 613 989 09 71
