Remove/install Vario roof actuation hydraulic cylinder - AR77.37-P-3490W
MODEL 172.4
Shown on right side of vehicle

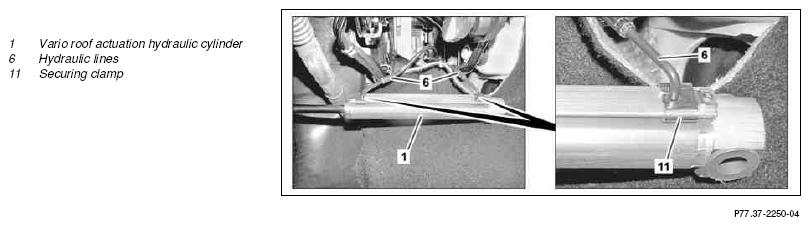

Shown right Vario roof actuation hydraulic cylinder (1)
| Removing | |||
| Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid | Depressurize hydraulic system completely before starting any work on system. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Notes on Vario roof assembly work | AH77.30-P-0002-01R | ||

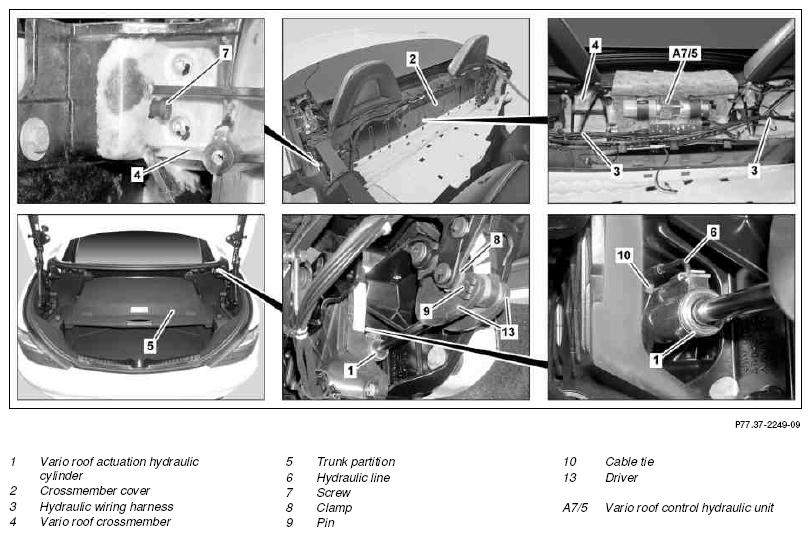

| 1 | Remove crossmember cover (2) | AR77.37-P-3500W | |
| 2 | Mark installation position of left or right hydraulic line set (3) on Vario roof crossmember (4) and mounting parts in trunk | ||
| 3 | Expose left or right hydraulic line set (3) on Vario roof crossmember (4) | ||
| 4 | Fold up insulating mat above Vario roof control unit hydraulic unit (A7/5) and secure against folding down. | ||
| 5 | Disconnect hydraulic lines (6) on left and right Vario roof actuation hydraulic cylinder (1) from Vario roof control hydraulic control unit (A7/5) Close hydraulic lines (6) and connections on Vario roof control hydraulic control unit (A7/5) | Left Vario roof actuation hydraulic cylinder (1): Line no. 31 and line no. 33 Right Vario roof actuation hydraulic cylinder (1): Line no. 20 and line no. 22 |
AR77.37-P-1000-04V |
| Fig 5 | |||
| 6 | Expose hydraulic lines (6) on left and right Vario roof actuation hydraulic cylinder (1) in trunk | ||
| 7 | Unscrew bolt (7) on left or right side of vehicle | Fig 4 | |
| 8 | Remove clips (8) and bolts (9) | ||
| 9 | Remove Vario roof actuation hydraulic cylinder (1) together with hydraulic lines (6) toward rear from Vario roof main bearing until retaining clips (11) and cable (10) are accessible. | ||
| 10 | Mark installation position of cable tie (10) on rear hydraulic lines (6) and Vario roof actuation hydraulic cylinder (1) | ||
| 11 | Open cable ties (10) | ||
| 12 | Move retaining clips (11) on Vario roof actuation hydraulic cylinder (1) with suitable pliers and pull hydraulic lines (6) out of Vario roof actuation hydraulic cylinder (1). | ||
| Fig 5 | |||
| Install | |||
| 13 | Connect hydraulic lines (6) to Vario roof actuation hydraulic cylinder (1) and secure with retaining clips (11) | Connect line no. 20 at piston side and line no. 22 at rod side of right Vario roof actuation hydraulic cylinder (1). |
|
| 14 | Fasten rear hydraulic line (6) with cable tie (10) to Vario roof actuation hydraulic cylinder (1) | ||
| 15 | Position Vario roof actuation hydraulic cylinder (1) Vario roof main bearing and Vario roof crossmember (4) | ||
| 16 | Tighten screw (7) | Fig 4 | |
| 17 | Pull piston rod out of Vario roof actuation hydraulic cylinder (1) until the piston rod can be installed on the driver (13) with bolts (9) | Fig 3 | |
| 18 | Position piston rod of Vario roof actuation hydraulic cylinder (1) on driver (13) and install bolt (9) with clip (8) | ||
| 19 | Fasten hydraulic wiring set (3) on Vario roof cross member (4) in trunk | ||
| 20 | Connect hydraulic lines (6) ton Vario roof control hydraulic unit (A7/5) | Left Vario roof actuation hydraulic cylinder (1): Line no. 31 and line no. 33 Right Vario roof actuation hydraulic cylinder (1): Line no. 20 and line no. 22 |
AR77.37-P-1000-04V |
| *BA77.37-P-1001-01A | |||
| *BA77.37-P-1002-01A | |||
| 21 | Switch on ignition and actuate Vario roof actuation switch in the closing direction until the pump in the Vario roof control hydraulic unit (A7/5) switches off | ||
| 22 | Check oil level in Vario roof control hydraulic unit (A7/5), correct if necessary | AR77.37-P-3501W | |
| 23 | Install crossmember cover (2) | AR77.37-P-3500W |
SOFT TOP HYDRAULIC COMPONENTS
| Number | Designation | Model 172 | ||
|---|---|---|---|---|
| BA77.37-P-1001-01A | Emergency operation valve at hydraulic unit | Nm | 2.5 | |
| See picture | - | |||
| BA77.37-P-1002-01A | Bolt, connection plate to hydraulic unit | Nm | 4 | |
