Remove/install components for exhaust system - AR49.10-P-7100MMI

ENGINES 152 in MODEL 172

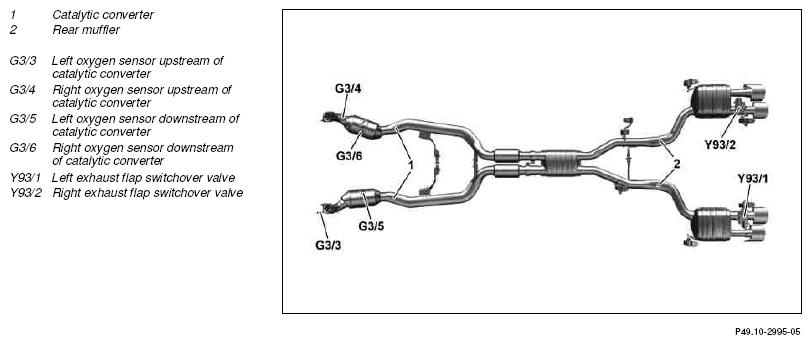

Fig 1: Identifying Exhaust System Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

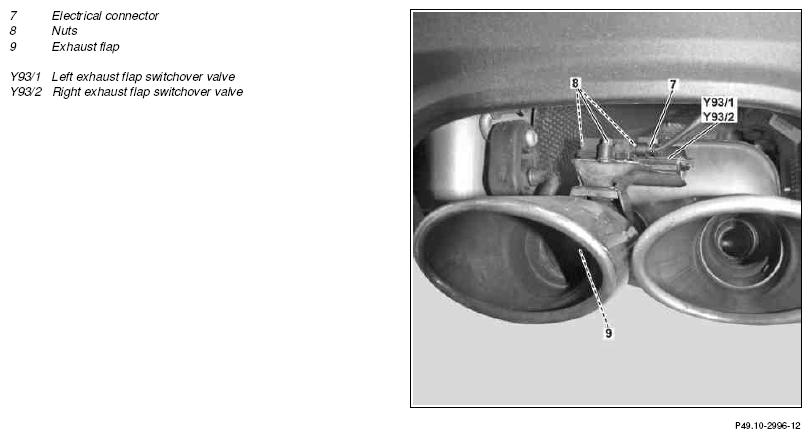

Fig 2: Identifying Exhaust System Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury to skin and eyes caused by handling hot or glowing objects.	Wear safety gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury from grazing or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove exhaust flap switchover valve on the left/right (Y93/1 or Y93/2)
1	Detach exhaust system in the rear area and place on the rear diagonal strut	Lay rags between exhaust system and diagonal strut.
1			*BA49.10-P-1012-01AI
2	Disconnect electrical connector (7) at exhaust flap switchover valve on the left/right (Y93/1 or Y93/2)
3	Unscrew nuts (8) at exhaust flap switchover valve on the left/right (Y93/1 or Y93/2)		*BA49.10-P-1020-01AI
4	Remove exhaust flap switchover valve on the left/right (Y93/1 or Y93/2)	When putting the exhaust flap switchover valve on the left/right (Y93/1 or Y93/2) in place the exhaust flap (9) must be closed.
	Checking
5	Check exhaust flap (9) for freedom of movement	The rear muffler (2) must be replaced for a defective exhaust flap (9).
	Remove respective components of the exhaust system
6	Remove engine compartment paneling	If necessary Only install engine compartment paneling after engine test run and leak test.	AR61.20-P-1105W
7	Disconnect electrical connection(s) for oxygen sensor(s) (G3/3, G3/4, G3/5, G3/6) and expose feed lines	If necessary	AR07.52-P-5303MMI
8	Disconnect electrical connector (7) at exhaust flap switchover valve on the left/right (Y93/1 or Y93/2)	If necessary
9	Remove left or right three way catalytic converter (1) from exhaust manifold	If necessary
9			*BA49.10-P-1016-01AI
10	Detach rear diagonal strut from frame floor assembly	If necessary
10	Detach rear diagonal strut from frame floor assembly		*BA61.10-P-1005-01A
11	Detach corresponding components of exhaust system at separation points and remove	Align components for exhaust system tension-free before tightening the bolted connections. Apply lubricating paste to exhaust rubber mounts.
		Lubricant paste	*BR00.45-Z-1002-06A
		Clamp on center muffler	*BA49.10-P-1002-01AI
		Exhaust rubber mount bracket	*BA49.10-P-1012-01AI
		Nut, mounting plate for bracket on exhaust pipe	*BA49.10-P-1017-01AI
		Exhaust pipe bracket on transmission	*BA49.10-P-1018-01AI
		Nut for exhaust system cross connection	*BA49.10-P-1019-01AI
	Clean
12	Remove combustion and corrosion residue at separation points
13	Check exhaust rubber mount for damage and wear
14	Install in the reverse order
	Checking
15	Inspect installation position and unobstructed movement of all components of the exhaust system
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
16	Perform an engine test run and check the leaktightness of the exhaust system as well as the function of the exhaust flap switchover valve on the left/right (Y93/1 or Y93/2)

EXHAUST SYSTEM

Number	Designation		Engine 152 in model 172
BA49.10-P-1002-01AI	Screw/bolt, clamp to center muffler/exhaust pipe	Nm	35
BA49.10-P-1012-01AI	Screw/bolt, exhaust rubber mount holder to vehicle underbody/rear axle carrier	Nm	20
BA49.10-P-1016-01AI	Screw/bolt, exhaust pipe flange to exhaust manifold	Nm	20
BA49.10-P-1017-01AI	Nut, mounting plate for bracket on exhaust pipe	Nm	10
BA49.10-P-1018-01AI	Screw/bolt, exhaust pipe bracket to transmission	Nm	28
BA49.10-P-1019-01AI	Nut, LH exhaust system cross connection on the right	Nm	20
BA49.10-P-1020-01AI	Nut, actuator to exhaust system	Nm	3

FRAME FLOOR ASSEMBLY

Number	Designation		Model 172
BA61.10-P-1005-01A	Self-locking bolt, rear diagonal strut to frame floor	Nm	60

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Antifriction paste, rubber parts 2.5 kg, DB supply specification 6867.00	A 000 989 01 60
