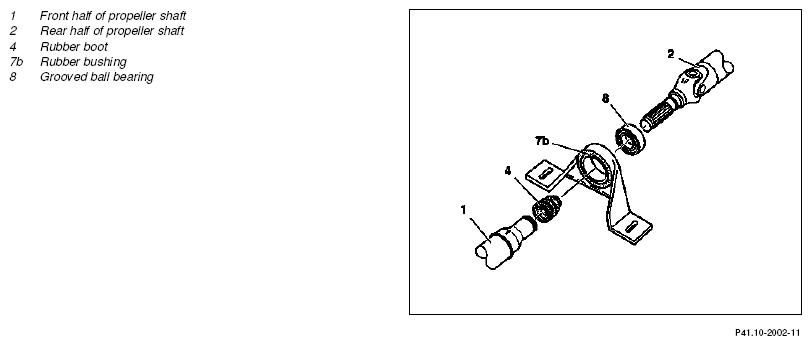

Remove/install propeller shaft intermediate bearing and replace grooved ball bearing - AR41.10-P-0100V
MODEL 171, 172
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Raise vehicle with vehicle lift | AR00.60-P-1000V | |
| 2 | Remove propeller shaft | AR41.10-P-0050V | |
| 3 | Separate front half of propeller shaft (1) and rear half of propeller shaft (2) from sliding piece connection | Model 171: |
|
| Connect sections of propeller shaft Model 172: |
AR41.10-P-0050-05DA | ||
| Connect sections of propeller shaft | AR41.10-P-0050-05TX | ||
| Long-life grease (NLGI grade 2) | Sheet 266.2 | Long-life grease (NLGI grade 2). See https://bevo.mercedes-benz.com/index.php?language_id=1 | |
| 4 | Pull rubber boot (4) off front half of propeller shaft (1) | ||
| 5 | Pull off rubber mount (7b) together with grooved ball bearing (8) | Model 171 | AR41.10-P-0100-07V |
| Model 172 | AR41.10-P-0100-07TX | ||
| Fig 2 | |||
Press rubber mount (7b) with grooved ball bearing (8) onto the joint fork |
Fig 3 | ||
| Model 171 | AR41.10-P-0100-05DA | ||
| Fig 4 | |||
| Fig 6 | |||
| Model 172 | AR41.10-P-0100-05TX | ||
| Fig 4 | |||
| 6 | Press grooved ball bearing (8) out of rubber mount (7b) of propeller shaft | Model 171 | AR41.10-P-0100-02V |
| Fig 5 | |||
| Fig 7 | |||
| Model 172 | AR41.10-P-0100-02TX | ||
| Fig 5 | |||
| Checking | |||
| 7 | Check rubber boot (4), rubber mount (7b) and grooved ball bearing (8) for wear and damage, replace if necessary | ||
| 8 | Install in the reverse order |
