Remove and install wiper arm - AR82.30-P-6100V
MODEL 171.4, 172.4

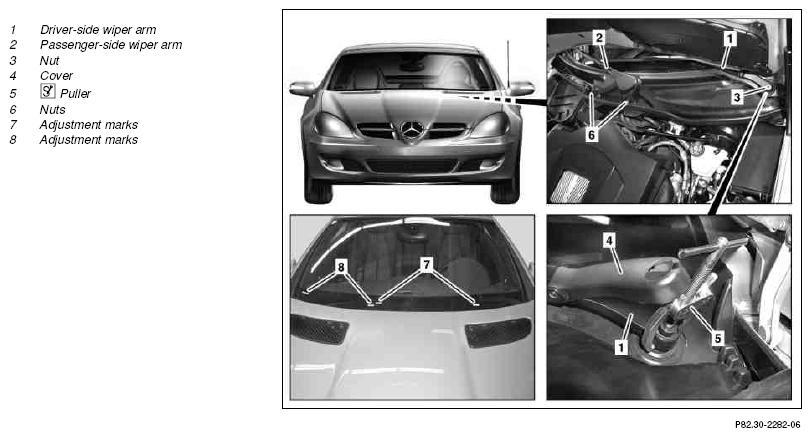

Illustrated on model 171.4
| Remove/install | |||
| Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities. | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |
| 1 | Move driver-side wiper arm (1) and passenger-side wiper arm (2) to park position and switch off wiper system | ||
| 2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 3 | Open engine hood and raise to vertical position | AR88.40-P-1000V | |
| Driver-side wiper arm (1) | |||
| 4 | Fold up cover (4) on driver-side wiper arm (1) | ||
| 5 | Unscrew nut (3) on the driver-side wiper arm (1) | *BA82.30-P-1004-01A | |
| 6 | Attach a puller (5) to the driver-side wiper arm (1), remove the driver-side wiper arm (1) from the left wiper shaft and then remove the puller (5) | Fig 2 | |
| 7 | Remove driver-side wiper arm (1) | ||
| Passenger-side wiper arm (2) | |||
| 8 | Remove caps and unscrew nuts (6) at passenger-side wiper arm (2) | *BA82.30-P-1004-01A | |
| 9 | Loosen the passenger-side wiper arm (2) from the right wiper shaft and remove it | ||
| 10 | Install in the reverse order |
WINDSHIELD WIPER
| Number | Designation | Model 171 | Model 172 | |
|---|---|---|---|---|
| BA82.30-P-1004-01A | Nut on wiper arm | Nm | 19 | 20 |
