Remove/install rear engine mount - AR22.10-P-1160RKA

ENGINE 157, 276, 278 in MODEL 231

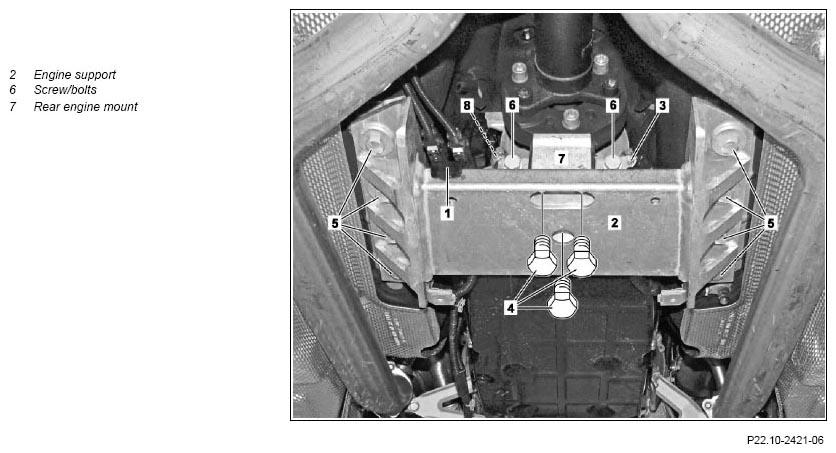

Fig 1: Rear Engine Mount Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear engine support (2)		AR22.10-P-4360RKA
2	Remove screw/bolts (6) and remove rear engine mount (7) downwards	Bolt connecting rear engine mount to bracket or transmission	*BA22.10-P-1003-03E
3	Install in the reverse order

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			MODEL 231
BA22.10-P-1003-03E	Bolt connecting rear engine mount to bracket or transmission	M8	Nm	50
		M10	Nm	50
