Adjust front axle toe - AR40.20-P-0264R

MODEL 231

MODEL 230.4

12.9.12	Total front axle toe with vehicle level	MODEL 231 except AMG, with CODE 486	BE40.20-P-1002-07S
12.9.12	Complete track front axle at vehicle level	Model 231 except AMG, with CODE 486	BE40.20-P-1002-07S
12.9.12	Total front axle toe with vehicle level	MODEL 231 except AMG, with CODE 487	BE40.20-P-1002-07S
12.9.12	Complete track front axle at vehicle level	Model 231 except AMG, with CODE 487	BE40.20-P-1002-07S
26.6.13	Complete track front axle at vehicle level		BE40.20-P-1002-07S

Shown on model 230.4

Shown on model 230.4 with code (487) Active Body Control (ABC)

Shown on model 230.4

Shown on model 231

Shown on model 230.4 with code (487) Active Body Control (ABC)

	Adjust
1	Switch off easy entry/exit	Depending on the version, the steering wheel and possibly also the driver seat move to a different position when, for example, the driver door is opened or closed. Damage to the upper frame can occur when the retainer (055) is installed. The system is switched off via the buttons on the steering wheel in the "Comfort" menu of the multifunction display.

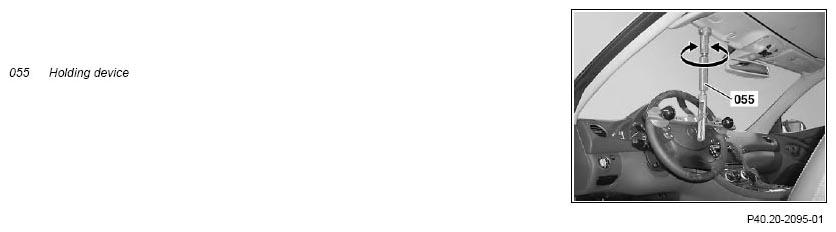

2	Swivel the sun visor to one side and fix the steering wheel in the center position using the retainer (055)	Position holding device (055) carefully. In order to prevent damage to the steering wheel and headliner. Retainer device	Fig 6
3	Detach lower engine compartment paneling	MODEL 230.4 with CODE P99 (Special model "AMG Black Series")	AR61.20-P-1105RBS
		MODEL 231	AR61.20-P-1105RK

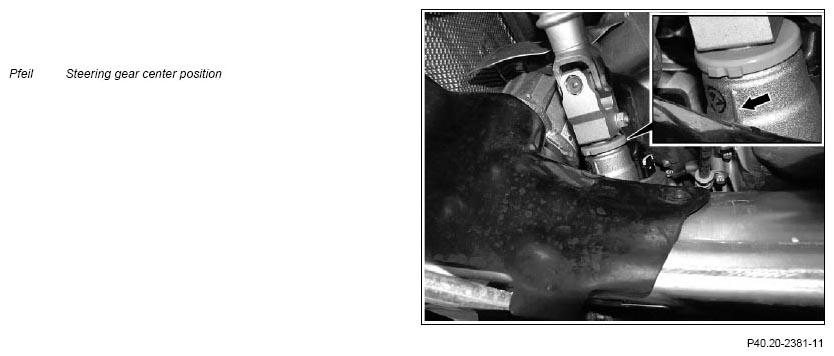

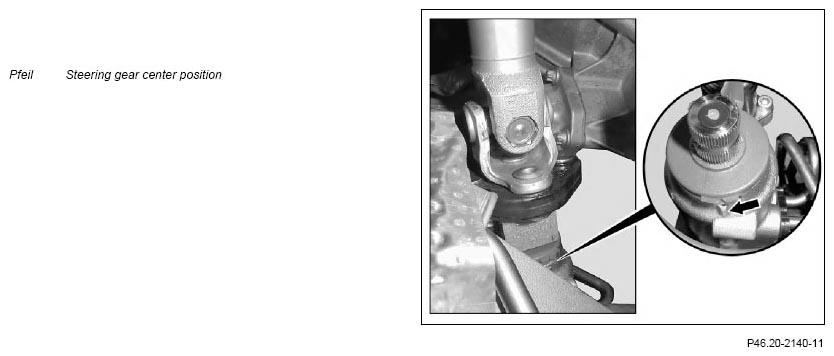

4	Check center position of steering gear (arrow) and steering wheel	The steering gear is at the center position when the marking on the cap is aligned with the marking on the control valve housing.
		Adjust steering wheel by max. one tooth if necessary: ↓ Remove/install steering wheel MODEL 230 (except 230.479) up to 1/28/08 MODEL 230 as of 1/29/08	AR46.10-P-0100I
		MODEL 230.479 up to 1/28/08 without CODE 809 (Model year 2009)	AR46.10-P-0100AM
		MODEL 231	AR46.10-P-0100EW

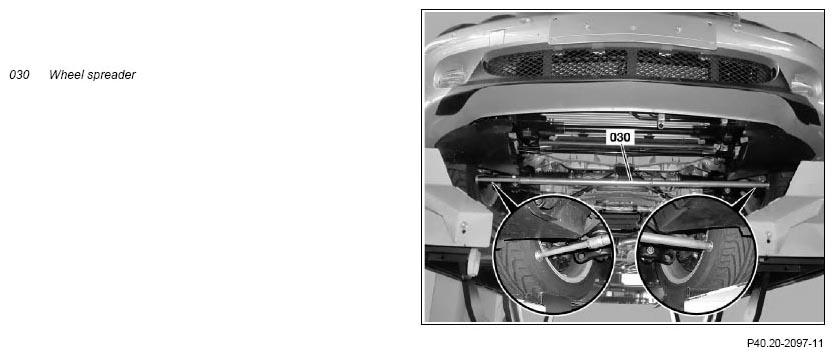

5	Insert wheel spreader (030) at the inside of the wheel at the front in the direction of travel	The elastic mounts of the transverse control arms and steering linkage result in a correspondingly large toe value which reduces to the correct dimension in the driving condition.

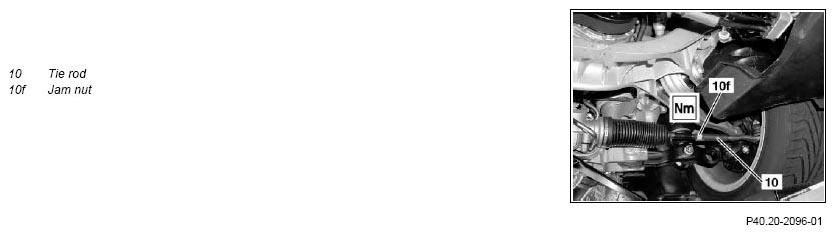

6	Counterhold tie rod (10) at the hexagon and loosen jam nut (10f)
7	Rotate the tie rods (10) to adjust the toe angle.	MODEL 230 without CODE P99 (Special model "AMG Black Series")	*BE40.20-P-1001-07A
		MODEL 230 with CODE P99 (Special model "AMG Black Series")	*BE40.20-P-1001-07J
		Model 231	*BE40.20-P-1002-07S
8	Tighten jam nut (10f)	Lock nut, tie rod to inner tie rod	*BA46.40-P-1002-01E
9	Remove retainer (055)	Retainer device	Fig 6
10	Remove wheel spreader (030)
11	Check bellows for twisting and align if necessary

Number	Designation		Model 230 except AMG with code P99
BE40.20-P-1001-07A	Front axle overall toe-in	∠°	0° 12' (±10')

Number	Designation			Model 231 except code 486/487	Model 231 with code 486
BE40.20-P-1002-07S	Total front axle toe at vehicle level	-1.07°	∠°	-	-
		-0.74°	∠°	-	0° 12' (±10')
		-0.58°	∠°	-	-
		-0.41°	∠°	-	-
		-0.24°	∠°	-	-
		+0.57°	∠°	-	0° 14' (±10')
		+0.73°	∠°	-	-
		+1.06°	∠°	0° 12' (±10')	-
		+1.87°	∠°	-	0° 17' (±10')
		+2.04°	∠°	-	-
		+2.36°	∠°	0° 15' (±10')	-
		+3.67°	∠°	0° 17' (±10')	-

Number	Designation			Model 231 with code 487	Model 231 AMG
BE40.20-P-1002-07S	Total front axle toe at vehicle level	-1.07°	∠°	-	0° 8' (±10')
		-0.74°	∠°	-	-
		-0.58°	∠°	0° 9' (±10')	-
		-0.41°	∠°	-	0° 10' (±10')
		-0.24°	∠°	-	0° 11' (±10')
		+0.57°	∠°	-	-
		+0.73°	∠°	0° 12' (±10')	-
		+1.06°	∠°	-	-
		+1.87°	∠°	-	-
		+2.04°	∠°	0° 14' (±10')	-
		+2.36°	∠°	-	-
		+3.67°	∠°	-	-

Number	Designation			MODEL 230 with Code P99
BE40.20-P-1001-07J	Total front axle toe with vehicle level	-4.4°	∠°	0° 14' (±10')
		-4.6°	∠°	0° 13' (±10')
		-4.7°	∠°	0° 11' (±10')
		-4.9°	∠°	0° 10' (±10')
		-5.0°	∠°	0° 09' (±10')
		-5.2°	∠°	0° 08' (±10')
		-5.3°	∠°	0° 07' (±10')

Number	Designation		MODEL 230	MODEL 231
BA46.40-P-1002-01E	Lock nut, tie rod to inner tie rod	Nm	60	65
