Remove/install Active Body Control hydraulic pump - AR32.50-P-0030RK

MODEL 217, 222, 231 with ENGINE 157, 278

with CODE 487 (Active Body Control (ABC))

Shown on MODEL 231

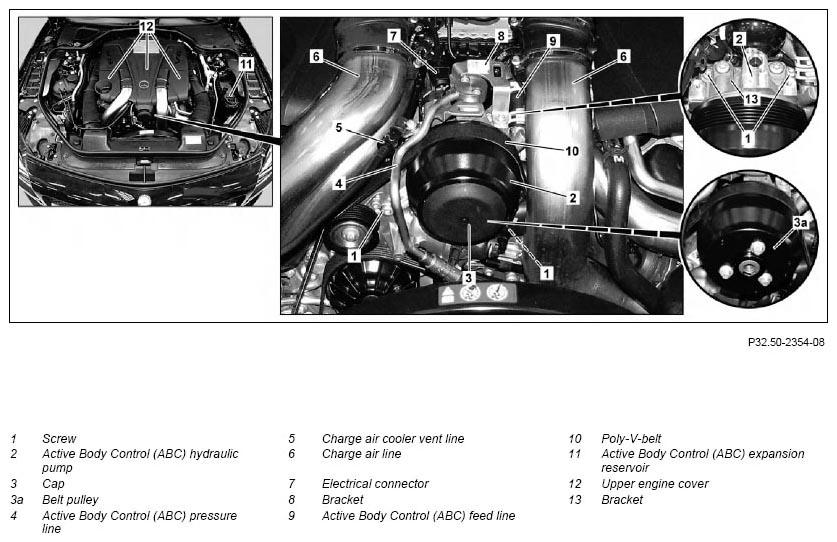

Fig 1: Active Body Control Hydraulic Pump Remove/Install Components - Shown On Model 231

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning  from swallowing hydraulic fluid.	Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Notes on fitting hydraulic lines and hoses		AH32.50-P-0001-02A
	Notes on Active Body Control suspension		AH32.50-P-0001-01LF
	Notes on Active Body Control suspension		AH32.50-P-0001-01N
	Remove/install
1	Open engine hood	Absolute cleanliness must be maintained throughout the entire procedure. Even the smallest dirt particles in the suspension system's hydraulic components can lead to malfunctions and a total failure of the ABC system. This work procedure must be maintained at all times. Otherwise there may be damage and the ABC system may then suffer a total failure.
2	Remove upper engine covers (12)
3	Detach bleed line for charge air cooler (5) from bracket (8) of Active Body Control (ABC) hydraulic pump (2)	Before starting work the area around the Active Body Control (ABC) hydraulic pump (2) must be thoroughly cleaned at the separation points. Even the smallest dirt particles in the hydraulic components can lead to malfunctions and a total failure of the suspension system.
4	Remove charge air line (6)	MODEL 217, 222 with ENGINE 157, 278 with CODE 487 (Active Body Control (ABC))	AR09.41-P-8620LFB
		MODEL 231 with ENGINE 157, 278 with CODE 487 (Active Body Control (ABC))	AR09.41-P-8620RKB
5	Extract oil from Active Body Control (ABC) expansion reservoir (11)	Hand pump	Figure
6	Remove poly-V belt (10)	MODEL 217, 222 with ENGINE 157, 278 with CODE 487 (Active Body Control (ABC))	AR13.20-P-0001LFB
		MODEL 231 with ENGINE 157, 278 with CODE 487 (Active Body Control (ABC))	AR13.20-P-0001RKB
7	Separate electrical connector (7), unclip from bracket (8) and set aside
8	Detach Active Body Control (ABC) feed line (9) from cylinder head cover and front cover
9	Detach Active Body Control (ABC) feed line (9) from Active Body Control (ABC) hydraulic pump (2) and set aside	Plug openings. Note installation position of Active Body Control ABC feed line (9). Record plug	Figure
10	Detach Active Body Control (ABC) pressure line (4) from Active Body Control (ABC) hydraulic pump (2)	Detach Active Body Control (ABC) pressure line (4) at the earliest 10 minutes after switching off the engine, because only then will the ABC system be fully unpressurized. Seal openings with stop plugs. Replace sealing rings of Active Body Control (ABC) pressure line (4). Record plug	Figure
11	Unscrew bolts (1) of Active Body Control (ABC) hydraulic pump (2) and remove Active Body Control (ABC) hydraulic pump (2) upwards	Bolt, guide pulley carrier/ABC pump to timing case cover/coolant pump	*BA13.25-P-1003-01Y
12	Remove cap (3) and detach belt pulley (3a) from Active Body Control (ABC) hydraulic pump (2)	When replacing Active Body Control (ABC) hydraulic pump (2).
13	Detach bracket (8) from Active Body Control (ABC) hydraulic pump (2)	When replacing Active Body Control (ABC) hydraulic pump (2).
14	Detach bracket (13) from Active Body Control (ABC) hydraulic pump (2)	When replacing Active Body Control (ABC) hydraulic pump (2). MODEL 231 with ENGINE 157, 278 with CODE 487 (Active Body Control (ABC))	*BA32.00-P-1005-01B
		MODEL 217, 222 with ENGINE 157, 278 with CODE 487 (Active Body Control (ABC))	*BA32.00-P-1003-01C
15	Install in the reverse order
16	Fill and bleed active body control (ABC)		AR32.50-P-0021SX
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
17	Carry out engine test run, while doing so check Active Body Control (ABC) for proper operation and leaktightness	When the work has been completed, cooling of the hydraulic fluid (after the engine is switched off) will cause the body to be lowered.

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA
