Attach engine hoist - AR33.10-P-0105RK

MODEL 231

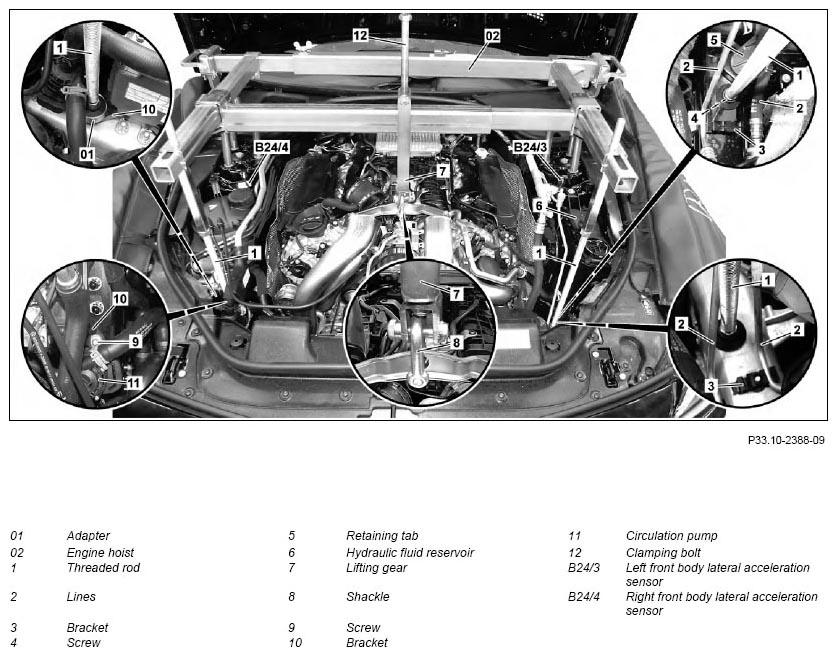

Fig 1: Attaching Engine Hoist (1 Of 2)
G11128740Courtesy of MERCEDES-BENZ USA

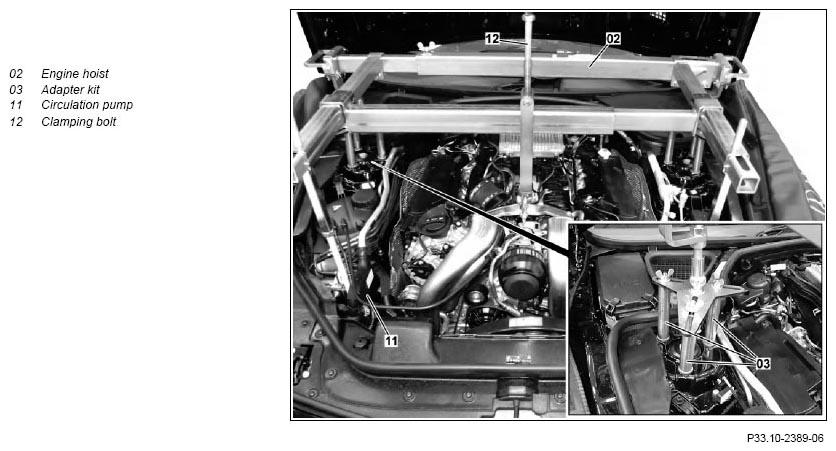

Fig 2: Attaching Engine Hoist (2 Of 2)
G11128741Courtesy of MERCEDES-BENZ USA

Shown on model 231 with engine 279

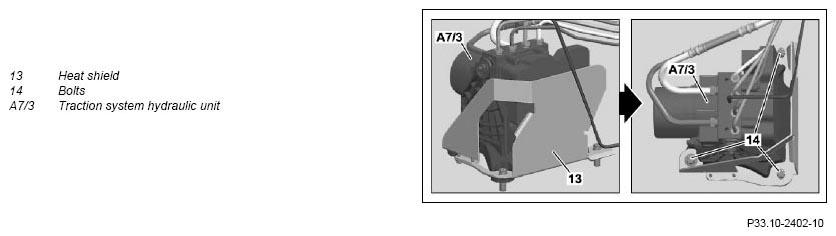

Fig 3: Heat Shield, Traction System Hydraulic Unit & Bolts - Shown On Model 231 With Engine 279
G11128742Courtesy of MERCEDES-BENZ USA
REMOVING Install
1 Remove air filter housing Model 231 with engine 157, 278, 279
Model 231 with engine 279
with code 460 (Canada version)
with code 494 (US version)
AR09.10-P-1150MUC
    Model 231 with engine 279
except code 460 (Canada version)
except code 494 (US version)
AR09.10-P-1150RKC
2 Remove engine air intake duct upstream of air filter
3 Unscrew bolt (4) on retaining tab (5) of hydraulic fluid reservoir (6) Model 231
with code 487 (Active Body Control (ABC))

4 Detach lines (2) from bracket (3) IMPORTANT Threaded rod (1) of engine hoist (02) is positioned between the lines (2).
5 Remove fender liner in right fender Model 231 with engine 279 AR88.10-P-1300RK
6.1 Unscrew bolts (14) and remove heat shield (13) from traction system hydraulic unit (A7/3) Model 231 with engine 279
TORQUE SPECIFICATION Bolt/nut, bracket for hydraulic unit to body
*BA42.45-P-1004-01M
6.2 Unscrew bolt (9) from bracket (10) Model 231 with engine 157, 276, 278
TORQUE SPECIFICATION Bolt/nut, bracket for hydraulic unit to body
*BA42.45-P-1004-01M
7 Remove circulation pump (11) with lines connected from bracket and place to one side
8 Attach adapter (01) to bracket (10) SPECIAL TOOL Adapter kit Fig 6
9 Preassemble engine hoist (02) SPECIAL TOOL Engine lifting device Fig 4
10 Position preassembled engine hoist (02) on the suspension strut towers, longitudinal members and adapter (01) NOTES
Position engine hoist carefully.
Otherwise the left front body acceleration sensor (B24/3) or right front body acceleration sensor (B24/4) can get damaged or lines and hoses could get pinched in the area of longitudinal members.
SPECIAL TOOL Engine lifting device
Fig 4
    SPECIAL TOOL Adapter kit Fig 6
11 Adjust engine hoist (02) and tighten bolted connections
12 Mount rear lifting eye onto front of engine Model 231 with engine 157, 278 AR33.10-P-0105-01SX
    TORQUE SPECIFICATION Bolt, lifting eye to cylinder head *BA01.30-P-1006-01X
    SPECIAL TOOL Lifting eye Fig 5
13 Fit shackle (8) to front engine suspension lug
14 Tighten turnbuckle (12) and tauten hoist (7)
REMOVING Remove
15 Remove in the reverse order
CYLINDER HEAD

Number Designation Engine 157 Engine 278
BA01.30-P-1006-01X Bolt, lifting eye to cylinder head Nm 14 14
ELECTRONIC STABILITY PROGRAM (ESP®)

Number Designation Model 231
BA42.45-P-1004-01M Bolt/nut, bracket for hydraulic unit to body Nm 16
