Prepare rear end for installation - AR64.20-P-1020-05ESA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.2 Type with reinforcements

MODEL 218.9 Type with reinforcements

Fig 1: Rear End Assembly Mating Surfaces (Area T)

Courtesy of MERCEDES-BENZ USA

Grind mating surfaces on rear end assembly down to bare metal in crosshatched areas.
Sand down spot weld flanges to bare metal on both sides.
Coat insides of spot weld flanges with zinc dust paint.

Do not coat bonding surfaces with zinc dust paint (area T). Can lead to adhesion problems.

Observe pretreatment of bonding surfaces.

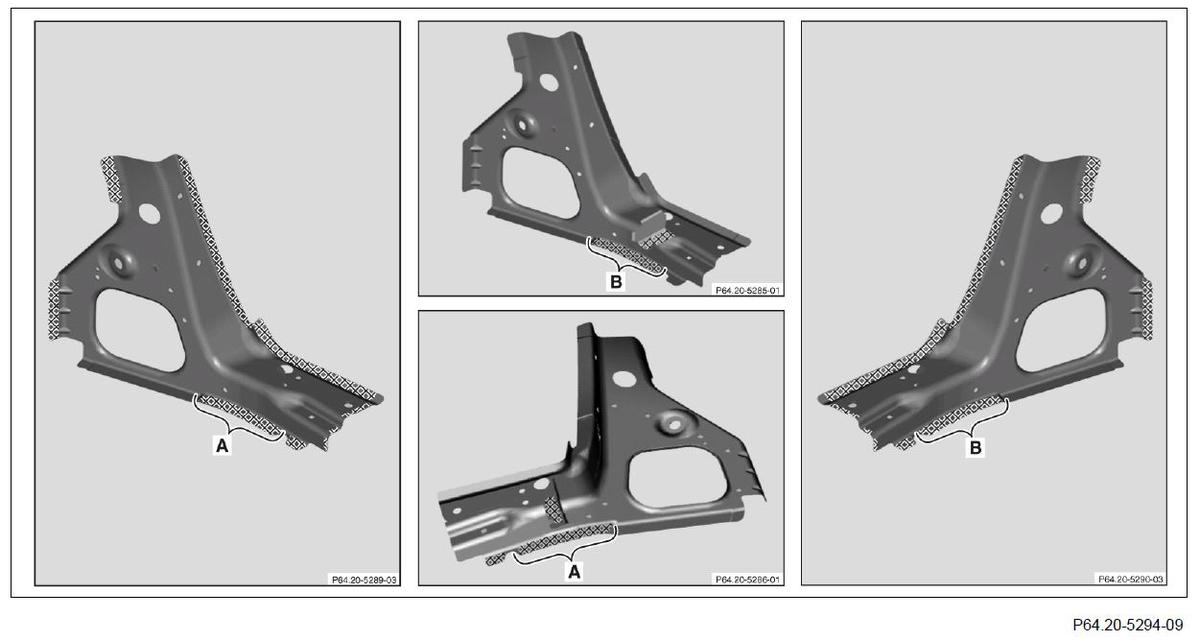

Fig 2: Rear End Assembly Mating Surfaces (Areas A And B)

Courtesy of MERCEDES-BENZ USA

Grind mating surfaces on reinforcements down to bare metal in crosshatched areas.
Sand down spot weld flanges to bare metal on both sides.
Coat insides of spot weld flanges with zinc dust paint.
Do not coat bonding surfaces with zinc dust paint (areas A and B). Can lead to adhesion problems.

Observe pretreatment of bonding surfaces.
