Remove/install camshaft Hall sensor - AR15.10-P-2000RKA
ENGINE 276 in MODEL 231

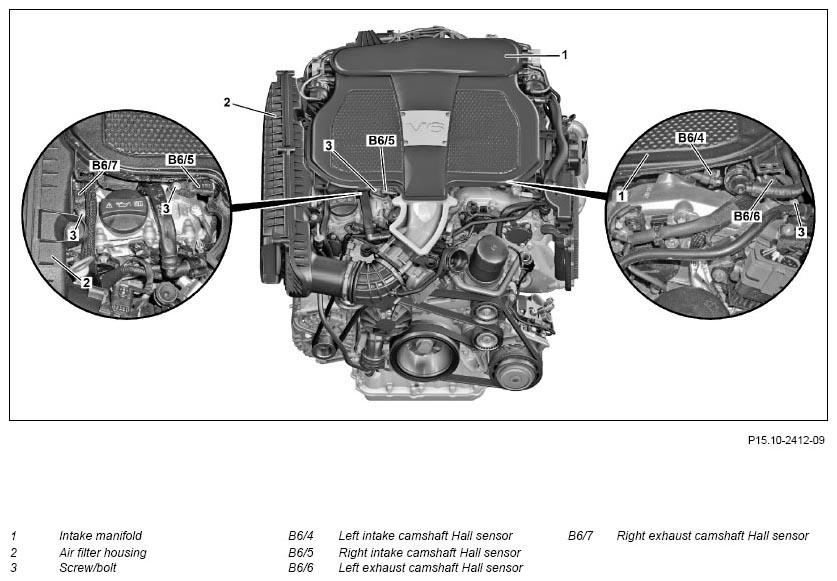

Shown on engine 276.9
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Open engine hood | ||
| 2.1 | Remove front upper engine cover | ENGINE 276.9 in MODEL 231 | |
| 2.2 | Remove upper engine cover | ENGINE 276.8 in MODEL 231 | |
| 3 | Remove intake manifold (1) | ENGINE 276.9 in MODEL 231 For removal of the LH intake camshaft Hall sensor (B6/4) or the LH exhaust camshaft Hall sensor (B6/6). |
|
| 4.1 | Remove air filter housing (2) from cylinder head cover | ENGINE 276.9 in MODEL 231 For removal of the RH exhaust camshaft Hall sensor (B6/7). |
|
| *BA09.10-P-1002-01M | |||
| *BA09.10-P-1001-01M | |||
| 4.2 | Remove right air filter housing | ENGINE 276.8 in MODEL 231 For removal of the RH exhaust camshaft Hall sensor (B6/7). |
AR09.10-P-1150RKA |
| 5 | Remove left engine air intake duct with a clean air line upstream of the air filter housing | ENGINE 276.8 in MODEL 231 When removing the Hall sensor on the left exhaust camshaft (B6/6) |
|
| 6 | Disconnect electrical connection on the LH intake camshaft Hall sensor (B6/4) or the LH intake camshaft Hall sensor (B6/5) or the LH exhaust camshaft Hall sensor (B6/6) or the RH exhaust camshaft Hall sensor (B6/7) | ||
| 7 | Remove screw/bolt (3) and LH intake camshaft Hall sensor (B6/4) or RH intake camshaft Hall sensor (B6/5) or LH exhaust camshaft Hall sensor (B6/6) or RH exhaust camshaft Hall sensor (B6/7) from the cylinder head cover | *BA15.10-P-1006-03E | |
| 8 | Install in the reverse order | ||
| 9 | Read out fault memory using the diagnostic system and clear if necessary | ||
| AD00.00-P-2000-04A | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
AIR FILTER
| Number | Designation | ENGINE 276.9 | |
|---|---|---|---|
| BA09.10-P-1001-01M | Bolt, air filter to cylinder head cover | Nm | 9 |
AIR FILTER
| Number | Designation | ENGINE 276.9 | |
|---|---|---|---|
| BA09.10-P-1002-01M | Bolt, air filter to air intake pipe support brace | Nm | 9 |
POSITION SENSOR
| Number | Designation | ENGINE 276 | |
|---|---|---|---|
| BA15.10-P-1006-03E | Bolt, camshaft Hall sensor to cylinder head cover | Nm | 9 |
