Remove/install engine mount or engine crossmember at the rear - AR22.10-P-1180RK

ENGINE 157, 276, 278 in MODEL 231

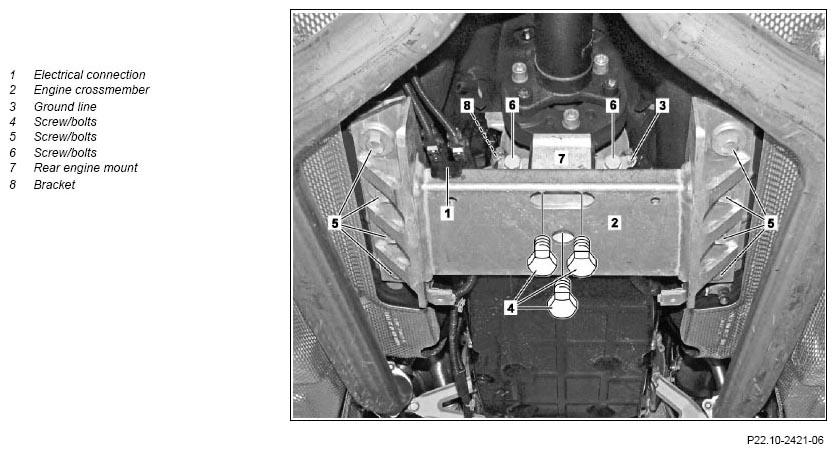

Fig 1: Engine Mount Or Engine Crossmember At Rear Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Remove/install
1	Remove rear part section of engine compartment paneling		AR61.20-P-1105RK
2	Unclip electrical connection (1) on engine crossmember (2)	ENGINE 276.9 in MODEL 231
3	Unclip ground line (3) on engine crossmember (2)
4	Remove screw/bolts (4)	Rear engine mount on engine support	*BA22.10-P-1004-03E
6	Remove engine crossmember (2)	To do this, remove screw/bolts (5). Bolt, rear engine support to frame floor assembly	*BA22.10-P-1005-03E
7	Remove rear engine mounts (7)	To do this, remove screw/bolts (6). Bolt connecting rear engine mount to bracket or transmission	*BA22.10-P-1003-03E
8	Install in the reverse order

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			Model 231
BA22.10-P-1003-03E	Bolt connecting rear engine mount to bracket or transmission	M8	Nm	50
		M10	Nm	50

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		Model 231
BA22.10-P-1004-03E	Rear engine mount on engine support	Nm	30

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				Model 231
BA22.10-P-1005-03E	Bolt, rear engine support to frame floor assembly	M10x22	silver	Nm	-
			Black	Nm	-
		M10x24	Black	Nm	-
		M10x38		Nm	45
