Overview of system components motor electronics (ME-SFI) fuel injection and ignition system - GF07.61-P-9997MUA
ENGINE 279.9 in MODEL 231.4

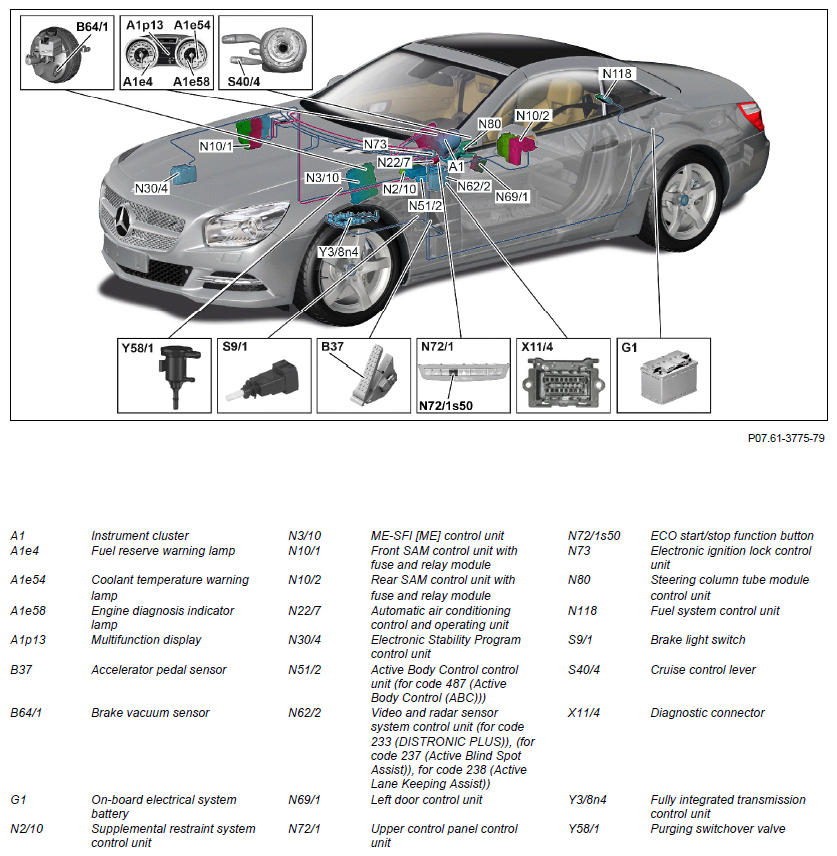

Vehicle view from front left up to model year. 2017
Fig 1: Overview Of Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - Shown Up To Model Year 2017

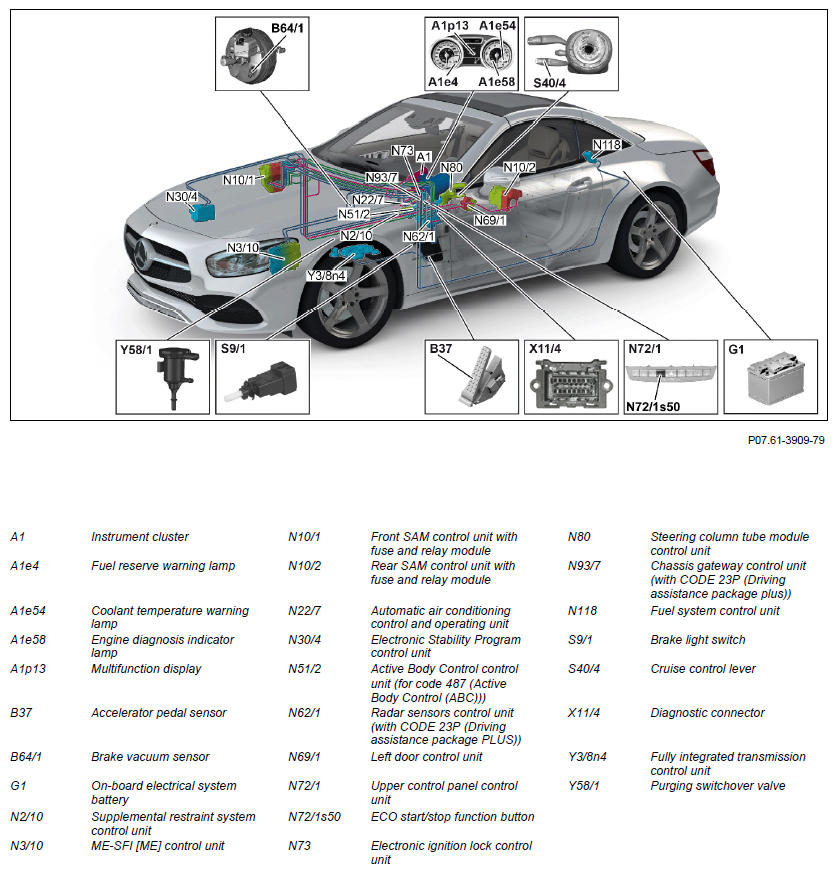

Vehicle view from front left as of model year 2017
Fig 2: Overview Of Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - Shown As Of Model Year 2017

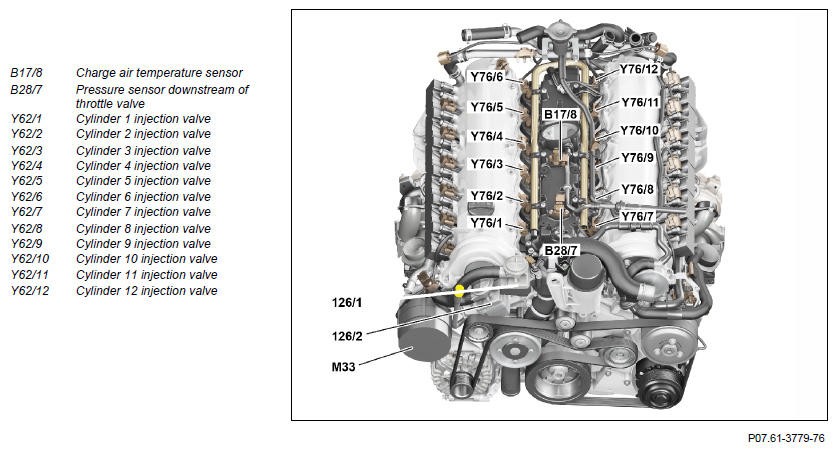

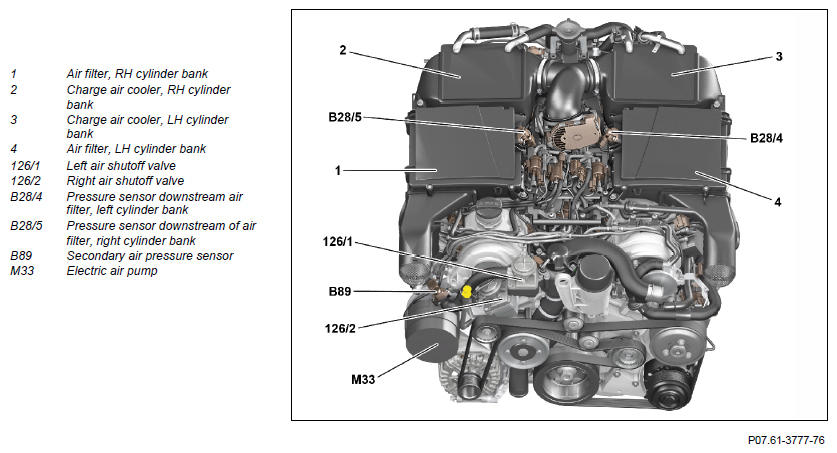

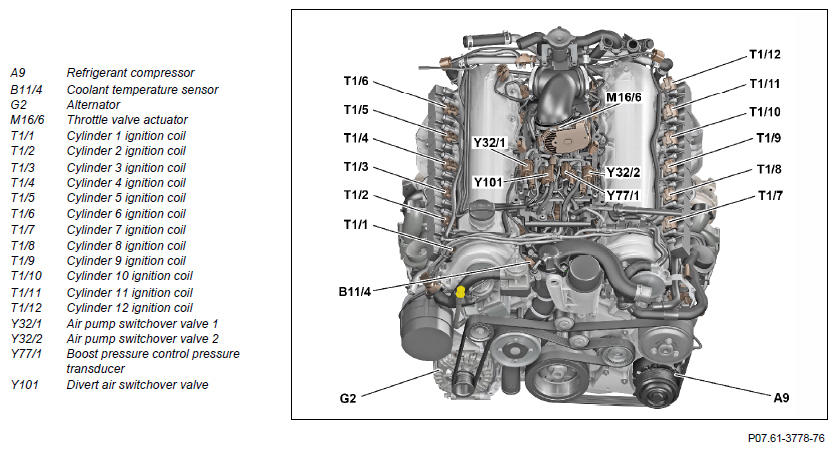

View of the engine from above
Fig 3: Overview Of Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - Above Engine View (1 Of 3)
View of the engine from above
Fig 4: Overview Of Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - Above Engine View (2 Of 3)
View of the engine from above
Fig 5: Overview Of Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - Above Engine View (3 Of 3)

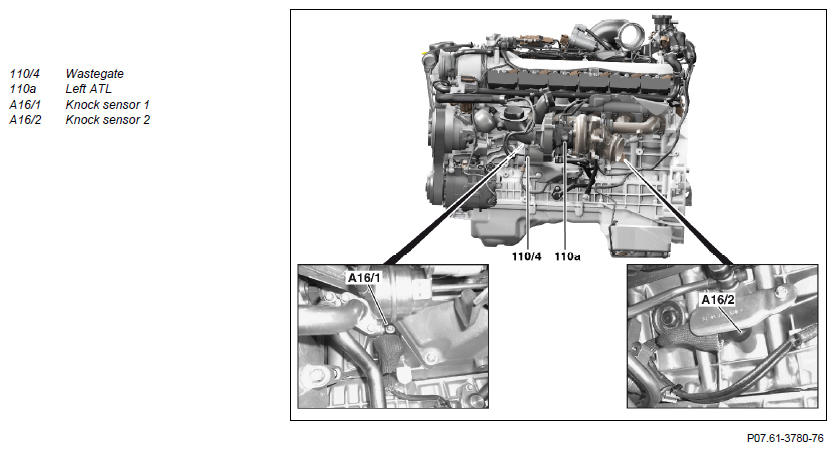

View of engine from the left
Fig 6: Overview Of Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - Left Engine View

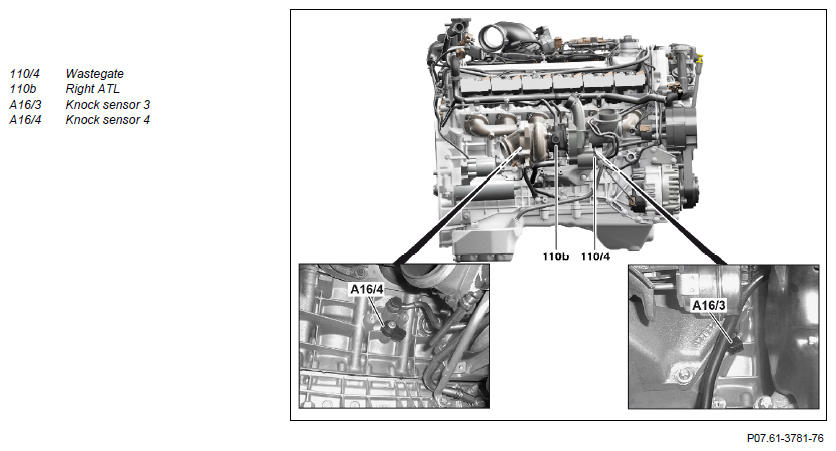

View of engine from the right
Fig 7: Overview Of Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - Right Engine View

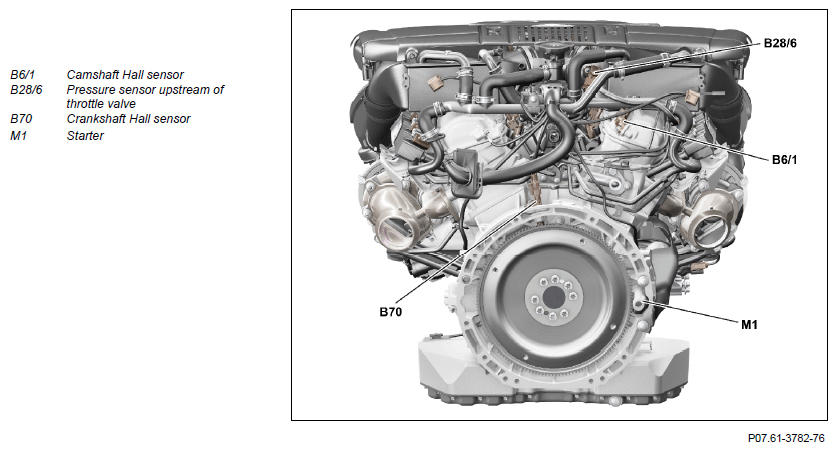

View of engine from the rear
Fig 8: Overview Of Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - Rear Engine View

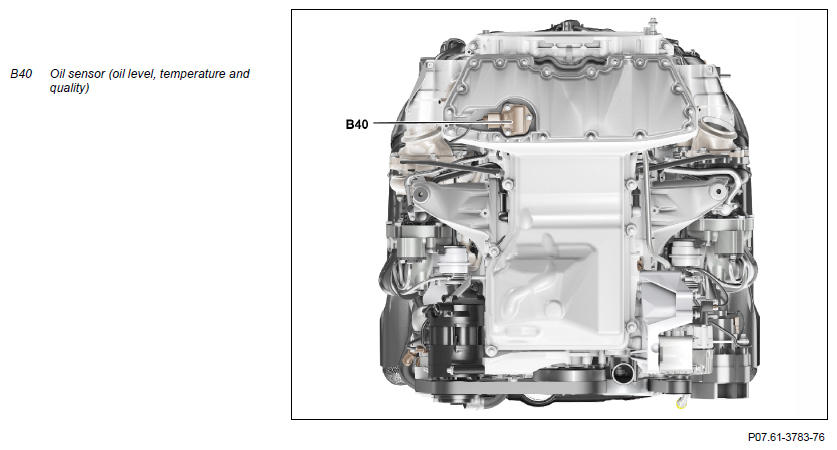

View of engine from the below
Fig 9: Overview Of Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - Below Engine View

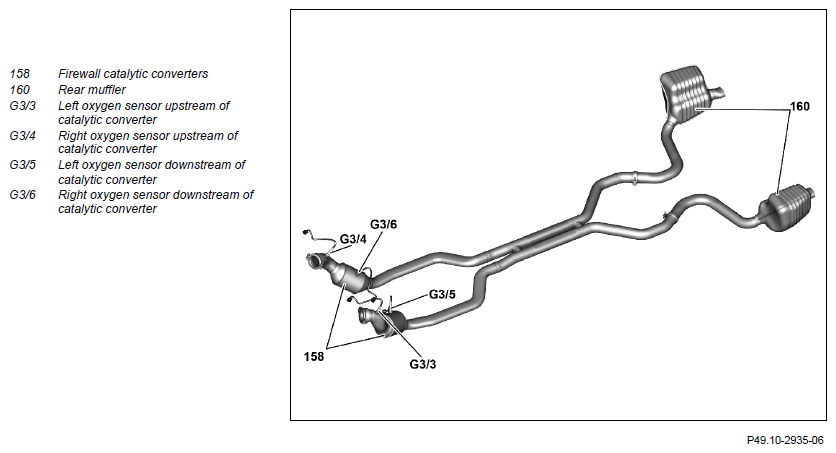

View of exhaust system

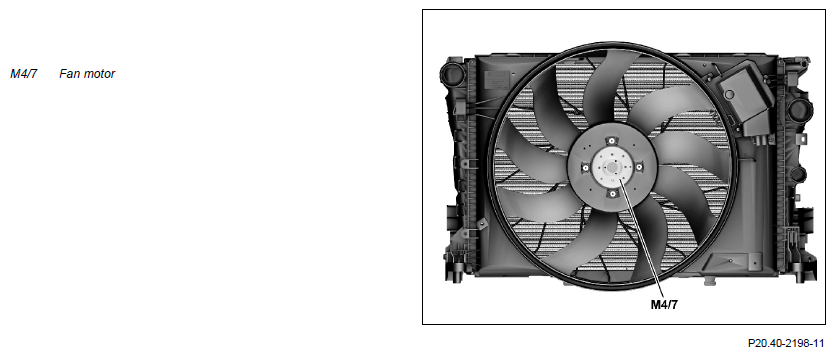

View of radiator from the rear

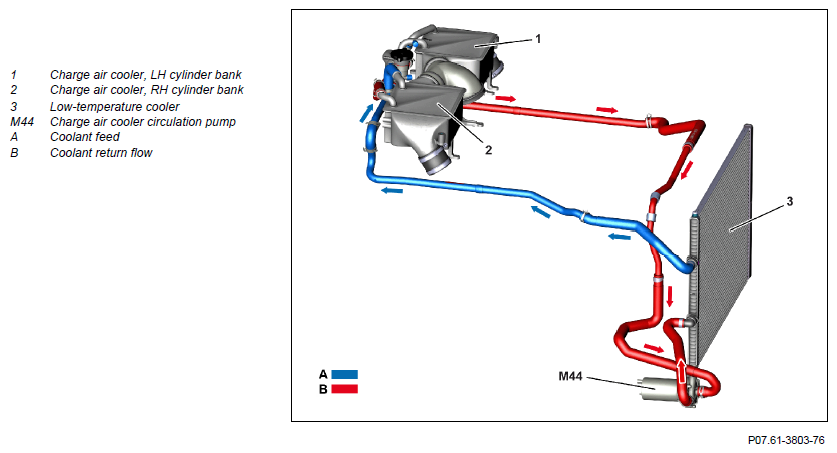

View of charge air cooler coolant circuit

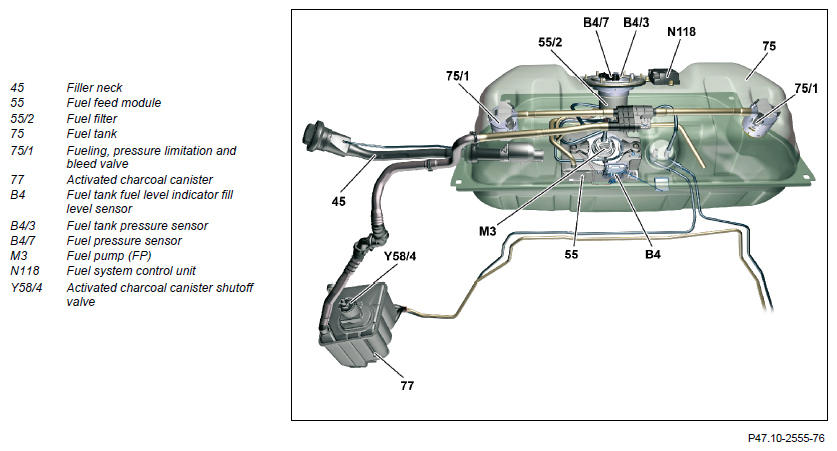

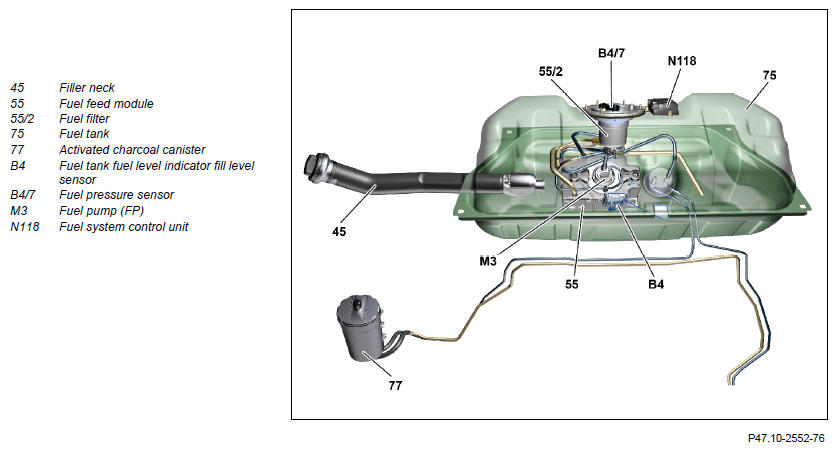

Phantom view of the fuel tank (except code 494 (USA version))
Phantom view of fuel tank (with CODE 494 (USA version))

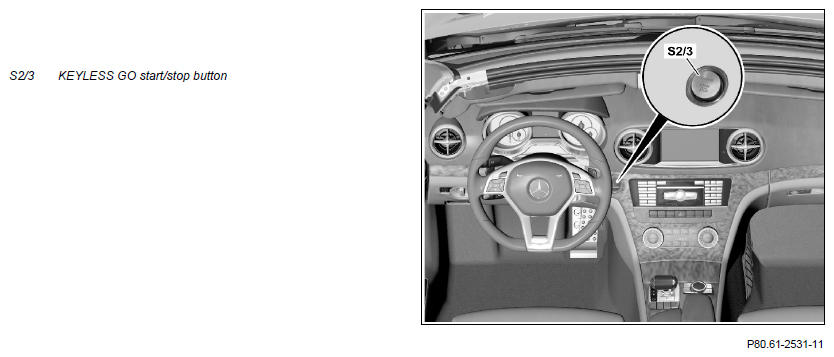

View of cockpit on the driver side (for code 889 (KEYLESS-GO))

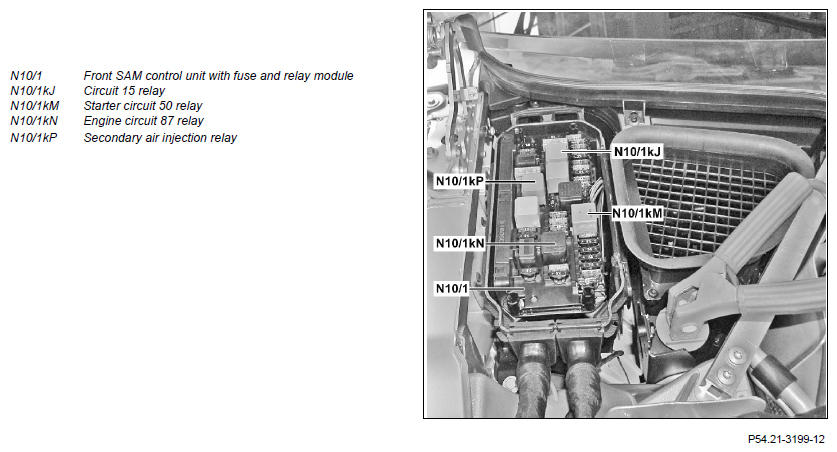

View of engine compartment from rear right

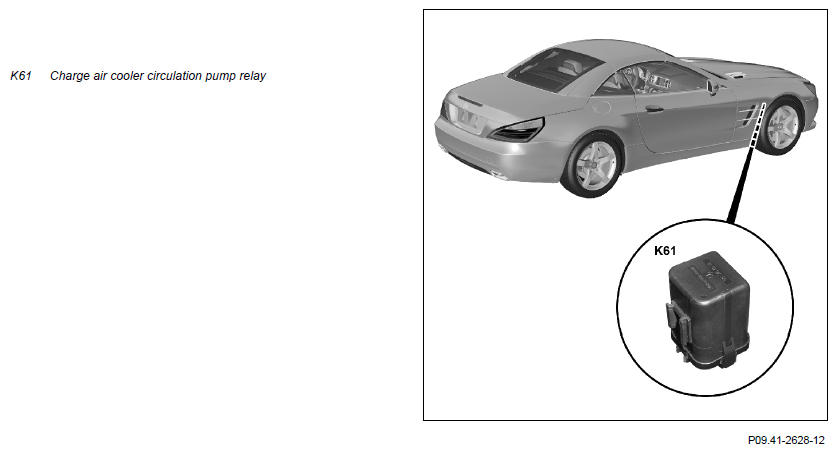

Vehicle view from right
| Component description for instrument cluster | A1 | GF54.30-P-6000RK | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RK | |
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MUA | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RK | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RK | |
| Component description for climate control control and operating unit | N22/7 | GF83.40-P-3002RK | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RK | |
| ABC control unit, component description | Engine 279.9 in model 231.4 with code 487 (Active Body Control (ABC)) N51/2 |
GF32.50-P-4501RK | |
| Component description for radar sensors control unit | Model 231 with engine 279.9 as of model year 2017 with code 23P (Driving Assistance package Plus) N62/1 |
GF30.30-P-3301RKM | |
| Component description for video and radar sensor system control unit | Model 231 with engine 279.9 up to model year 2017 with code 233 (DISTRONIC PLUS) with code 237 (Active Blind Spot Assist) with code 238 (Active lane keeping Assist) N62/2 |
GF30.30-P-3304RK | |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RK | |
| Upper control panel control unit, component description | N72/1, N72/1st | GF54.21-P-6040RK | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RK | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RK | |
| Component description for chassis gateway control unit | Model 231 with engine 279.9 as of model year 2017 with code 23P (Driving Assistance package Plus) N93/7 |
GF54.21-P-1010RKM | |
| Component description for fuel pump control unit | N118 | GF47.40-P-2001MUA | |
| Component description for fully integrated transmission control unit | Engine 279.9 in model 231.4 with transmission 722.932 Y38n4 |
GF27.60-P-5165AHP | |
| Table of contents for function description of motor electronics (ME-SFI) fuel injection and ignition system | GF07.61-P-0999MUA |
