Replace brake hoses - AR42.10-P-0013RK

MODEL 231

Shown on front axle

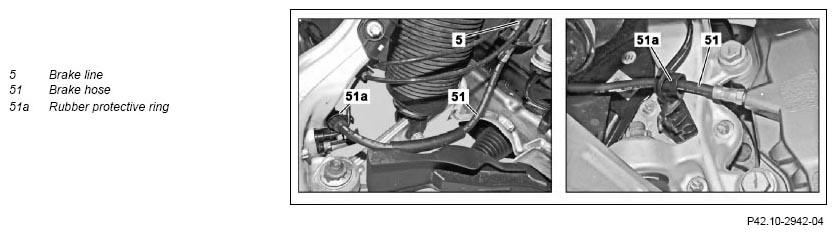

Fig 1: Brake Line, Brake Hose And Rubber Protective Ring - Shown On Front Axle

Courtesy of MERCEDES-BENZ USA

Shown on rear axle

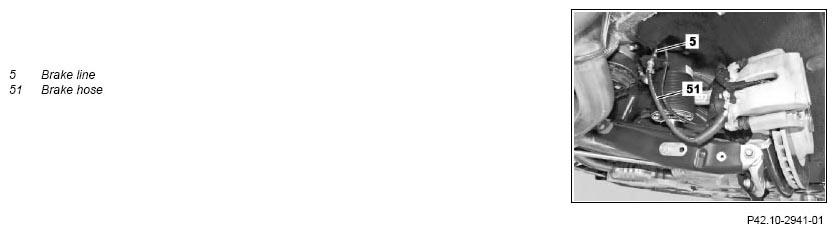

Fig 2: Brake Line And Brake Hose - Shown On Rear Axle

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on externally invisible brake fluid loss		AH42.10-P-9406-02V
	Notes on installing brake hoses		AH42.10-P-9406-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Remove/install
1	Detach corresponding complete wheel
			AP40.10-P-4050EW
2	Detach brake line (5) from brake hose (51)	Seal the connection fittings immediately using stop plugs. Otherwise the expansion reservoir for brake fluid can run empty. The expansion reservoir for brake fluid must not run completely empty. Retaining screw, brake line to brake hose	*BA42.10-P-1001-04L
		Record plug	Fig 5
		Box wrench bit	Fig 4
3	Pull out brake hose (51) at the protective rubber ring (51a)	The protective rubber ring (51a) is present only on the front axle.
4	Detach brake hose (51) from brake caliper and remove	Brake hose to fixed or floating caliper on front axle	*BA42.10-P-1002-04L
		Brake hose to fixed or floating caliper on rear axle	*BA42.10-P-1006-04L
		Box wrench	Fig 3
		Box wrench bit	Fig 4
5	Install in the reverse order
6	Bleed brake system		AR42.10-P-0010RK

Fig 3: Identifying Box Wrench (000 589 76 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Box Wrench Bit (000 589 75 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
