Remove/install electric parking brake actuator motor - AR42.20-P-0600RK
MODEL 231
Shown on right rear brake caliper

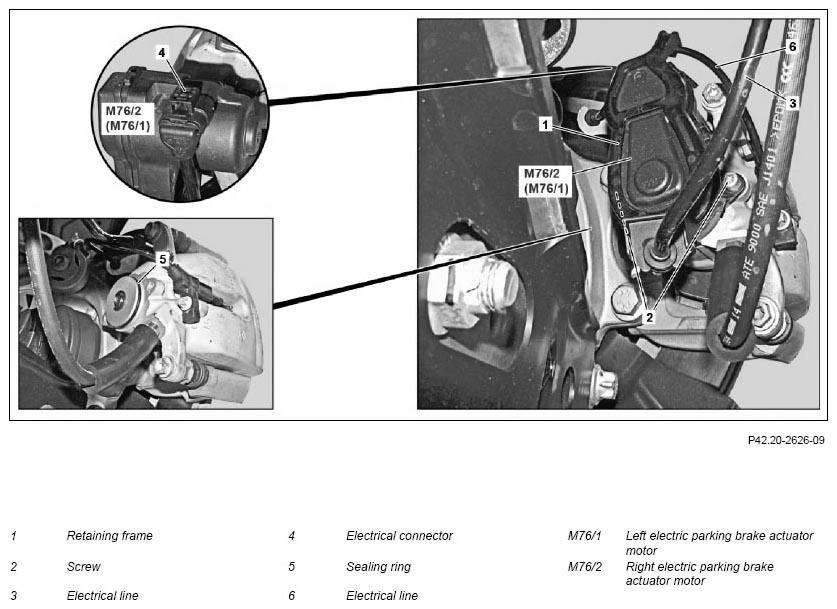

Fig 1: Electric Parking Brake Actuator Motor Remove/Install Components - Shown On Right Rear Brake Caliper
| Remove/install | |||
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| 1 | Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73) | ||
| 2 |
Remove the appropriate wheel | AP40.10-P-4050EW | |
| 3 | Unhook electrical lines (3, 6) from retaining frame (1) | ||
| 4 | Unclip retaining frame (1) from left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2) | ||
| 5 | Disconnect electrical connector (4) on left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2) | ||
| 6 | Unscrew bolts (2) and remove left electric parking brake actuator motor (M76/1) or right electric parking brake actuator motor (M76/2) | *BA42.10-P-1005-12J | |
| 7 | Install in the reverse order | ||
| 8 |
Carry out brake test on the test stand | AP42.00-P-4290BA |
REAR AXLE BRAKE CALIPER
| Number | Designation | MODEL 231 | |
|---|---|---|---|
| BA42.10-P-1005-12J | Screw/bolt, actuator motor to brake caliper | Nm | 12 |
